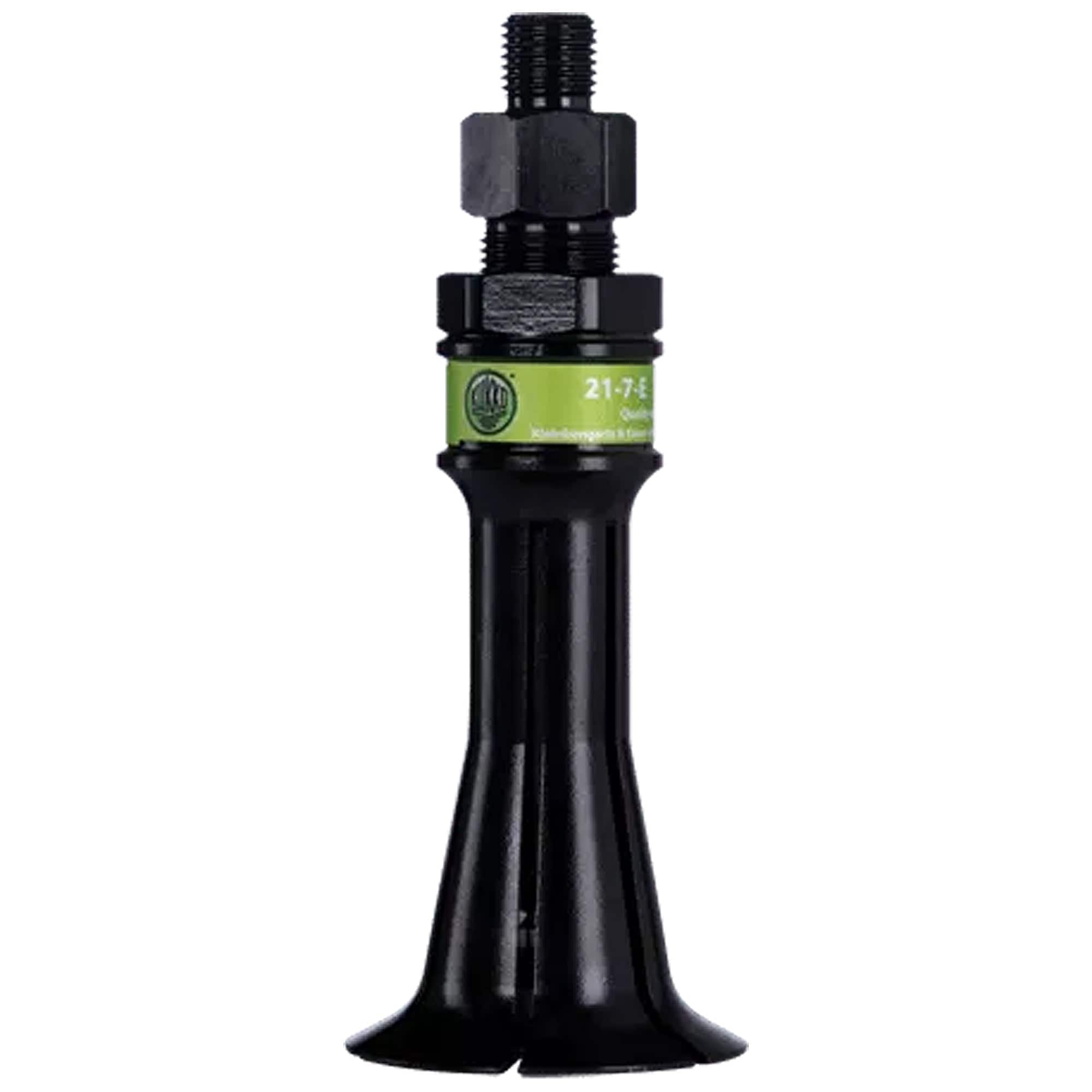

Kukko ToolsSKU: WS03-21-7-E
filler
Price:
$195.80

Description

  • For extracting bearings, bearing outer rings and bushings that lay flat on one another.
  • The segmented design with extra fine grasp edges ensures safe extraction.
  • Mechanical pressure screw.
  • MPN #:21-7-E
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Ball bearing ISO

 6013; 6213; 6313; 16013; 61913; 6014; 6214; 6314; 16014; 6015; 6215; 6315; 16015 6013; 6213; 6313; 16013; 61913; 6014; 6214; 6314; 16014; 6015; 6215; 6315; 16015

Inner diameter of ball bearing

 63 - 78 mm 2 1/2 - 3 1/16 inch

Effective depth

 80 mm 3 3/16 inch

Length of internal extractor

 120 mm 4 3/4 inch

Number of segments

6

 6

Spanner size of the internal extractor

32 mm

Weight

 0.86 kg



Product Data Sheet



Advantage

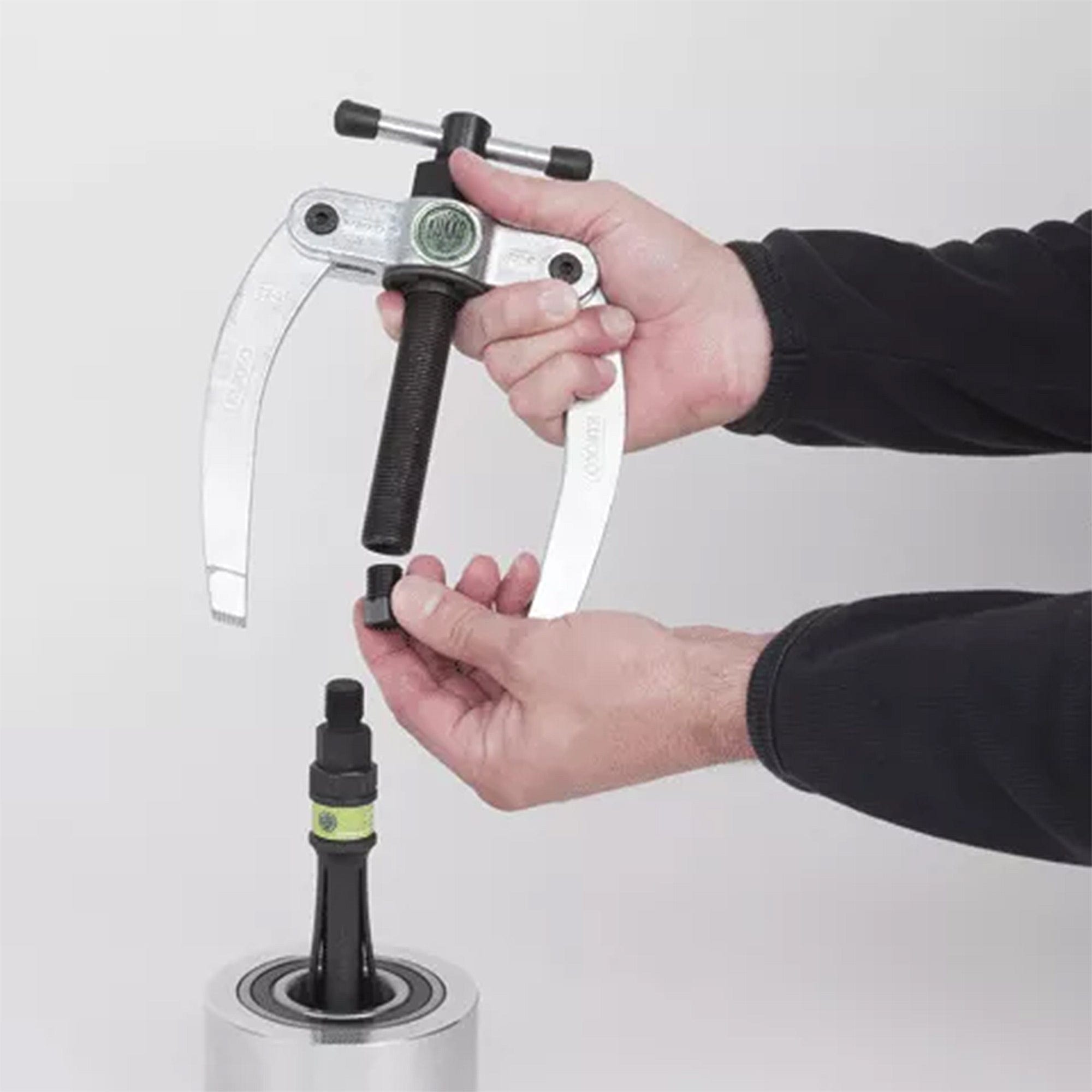

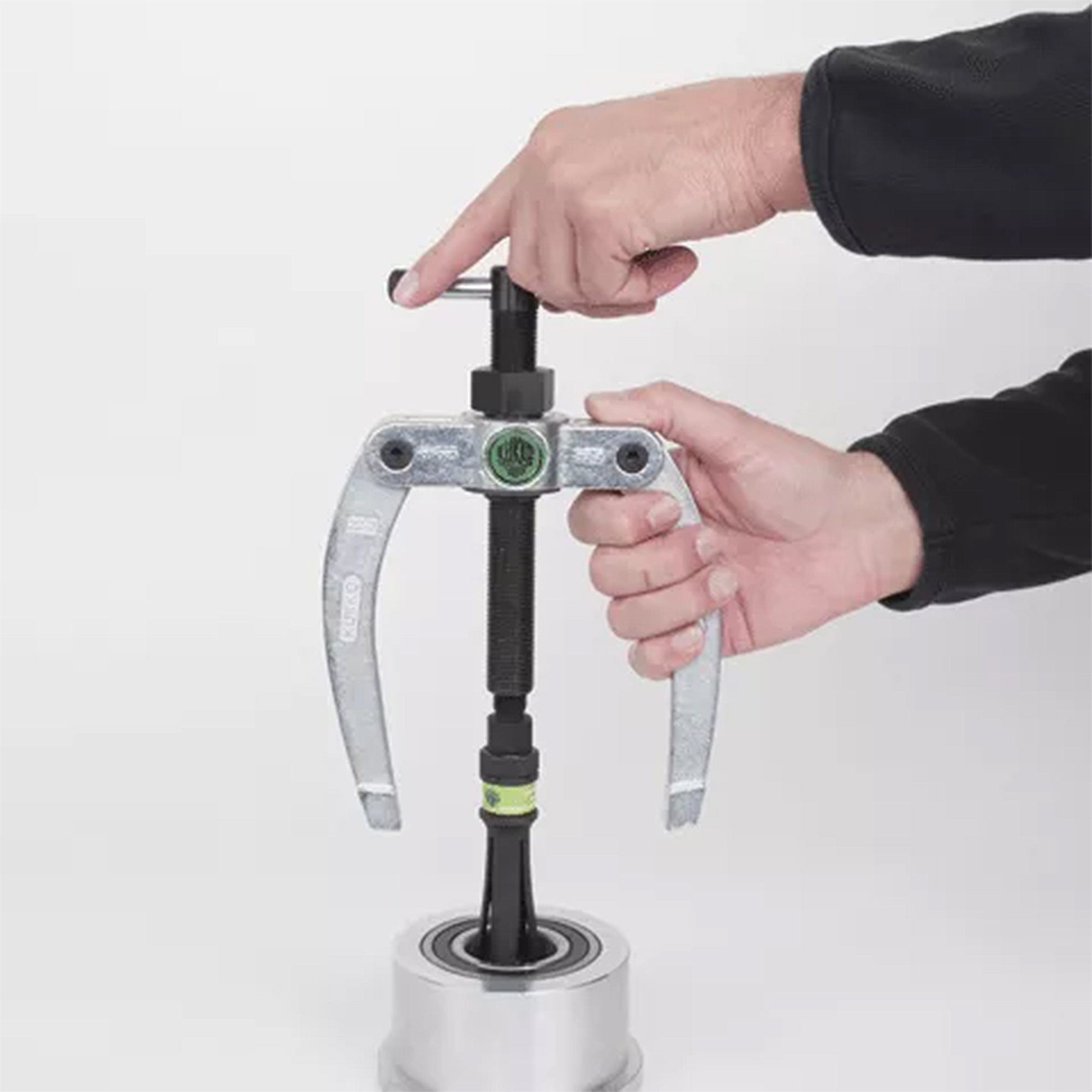

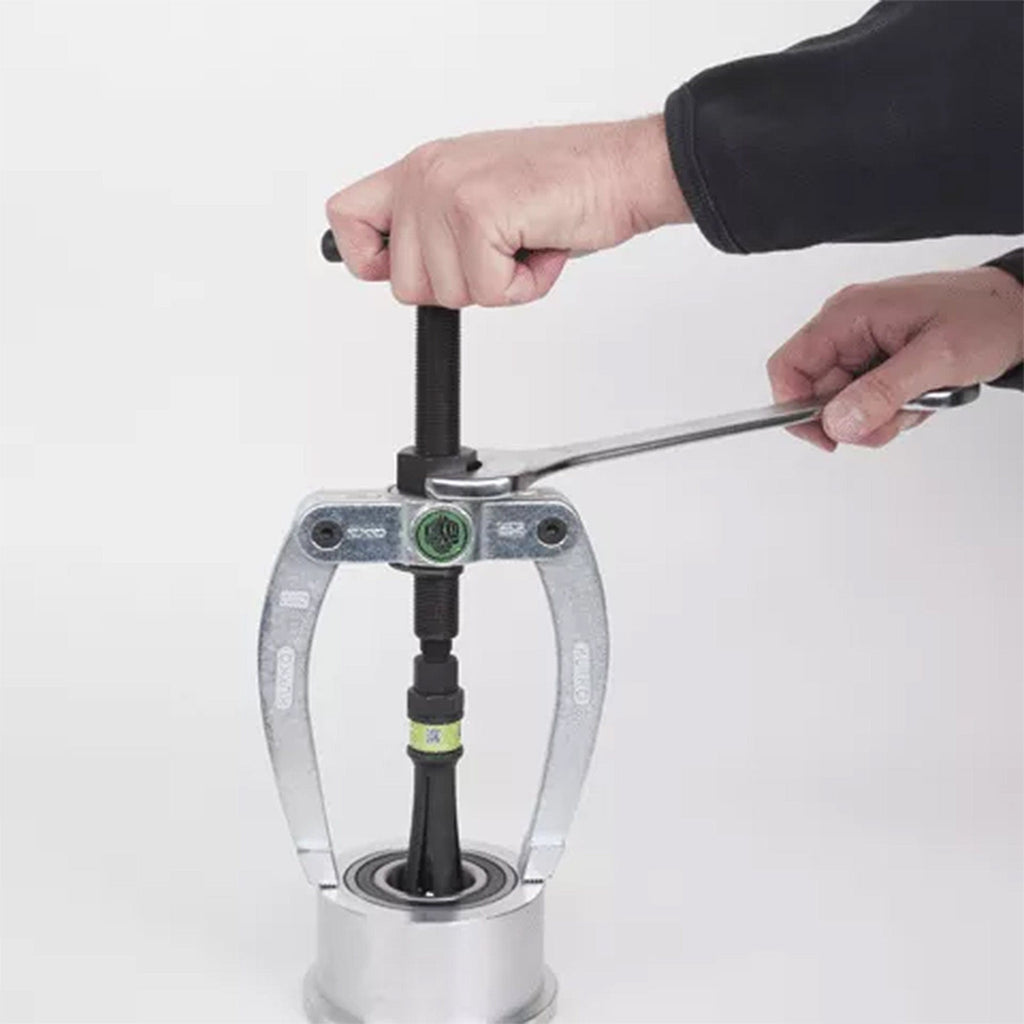

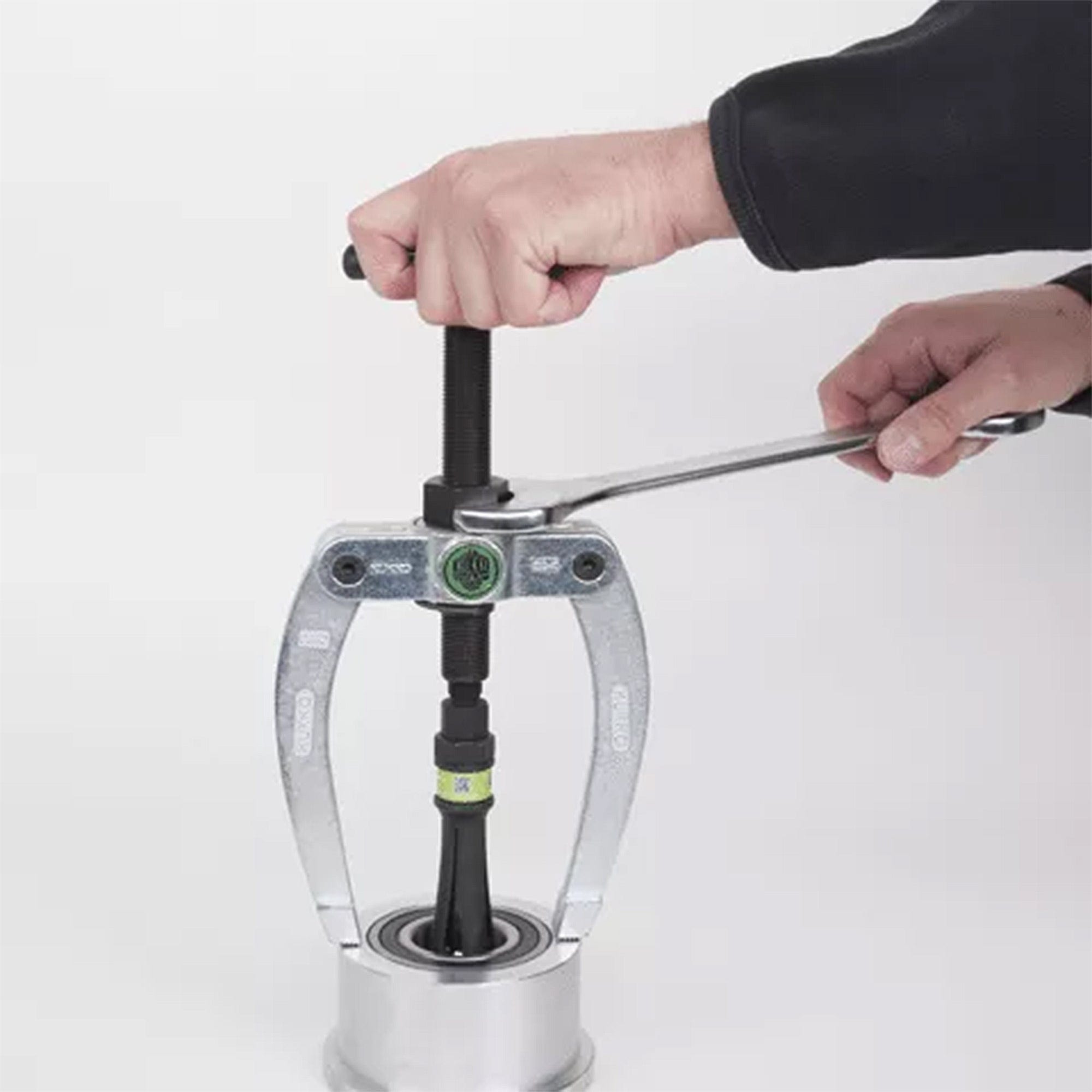

  • KUKKO internal extractors can be combined with counter supports and slide hammers.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Application Video by QR Code directly available on the tool.



Functionality

  • Internal extractors

  • Internal Extracting
