Description
- The 2-shell design with extra large grasp edges ensures safe extraction.
- The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
- Mechanical pressure screw.
-

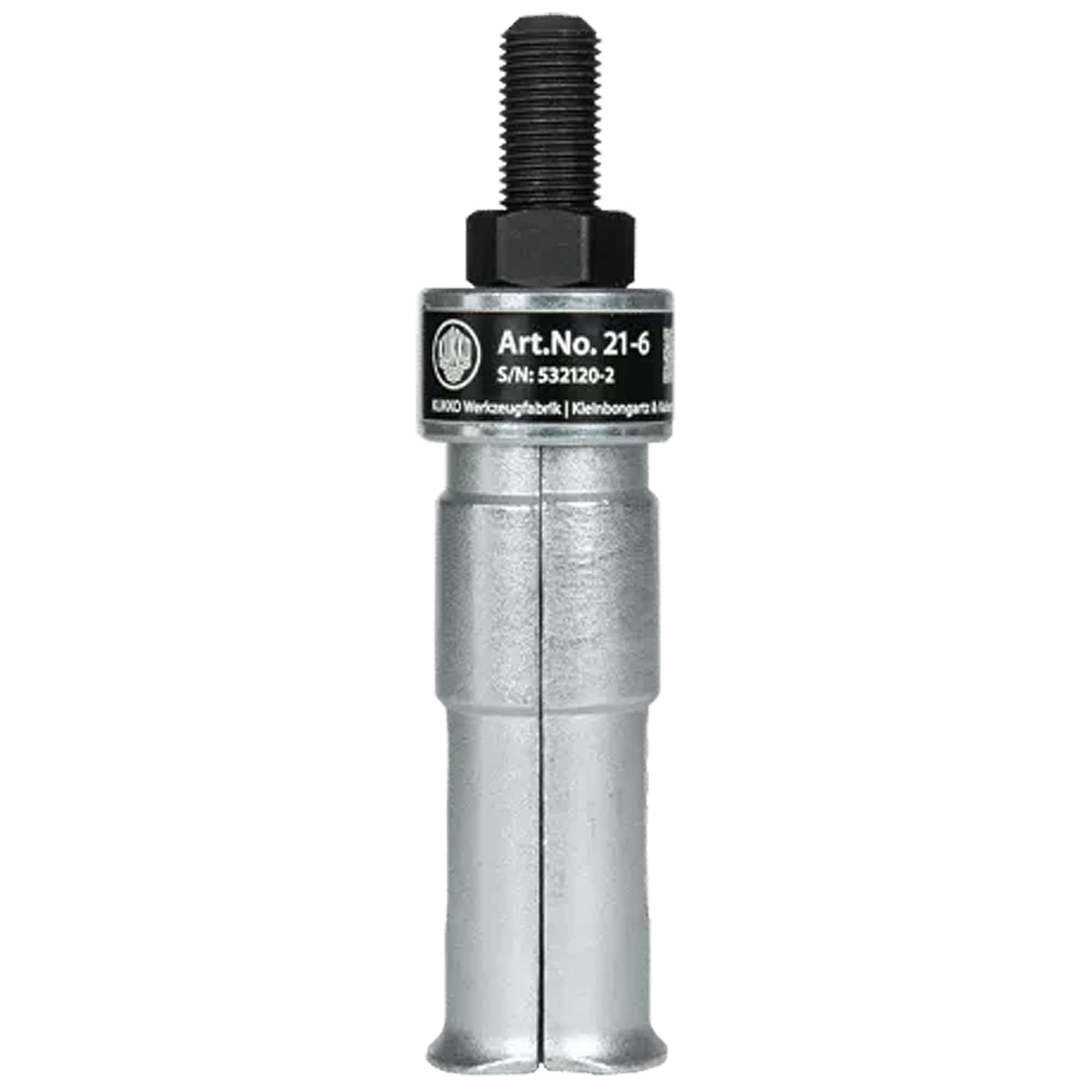

MPN #:21-6
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
|
Ball bearing ISO |
6007; 6207; 6307; 6407; 16007; 61807; 61907; 6008; 6208; 6308; 6408; 16008; 61808; 61908; 6009; 6209; 6309; 6409; 16009; 61809; 61909 | 6007; 6207; 6307; 6407; 16007; 61807; 61907; 6008; 6208; 6308; 6408; 16008; 61808; 61908; 6009; 6209; 6309; 6409; 16009; 61809; 61909 |
|
Inner diameter of ball bearing |
35 - 46 mm | 1 3/8 - 1 7/8 inch |
|
Effective depth |
50 mm | 2 inch |
|
Length of internal extractor |
113 mm | 4 3/8 inch |
|
Number of segments |
2 |
2 |
|
Weight |
0.68 kg |
Advantage
-

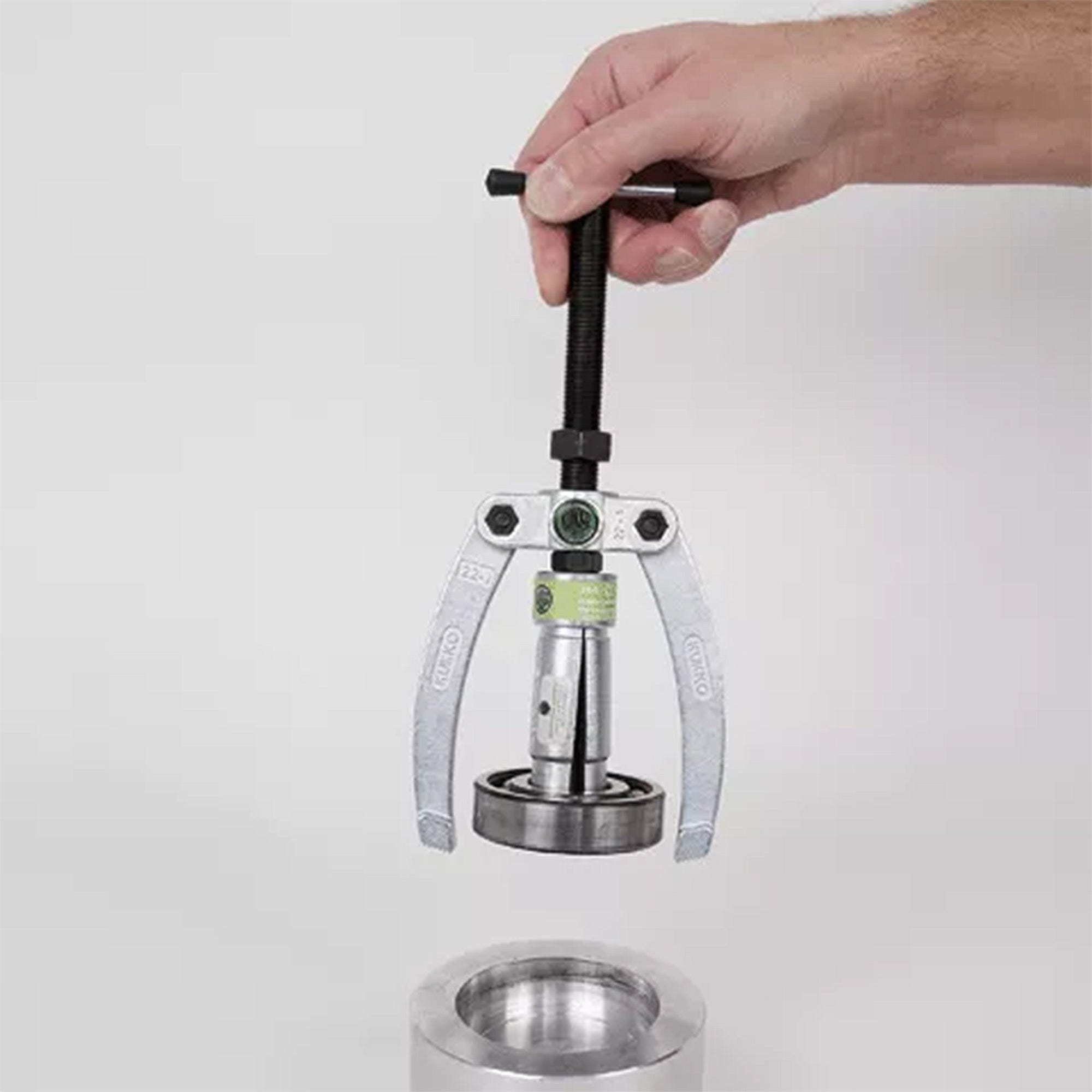

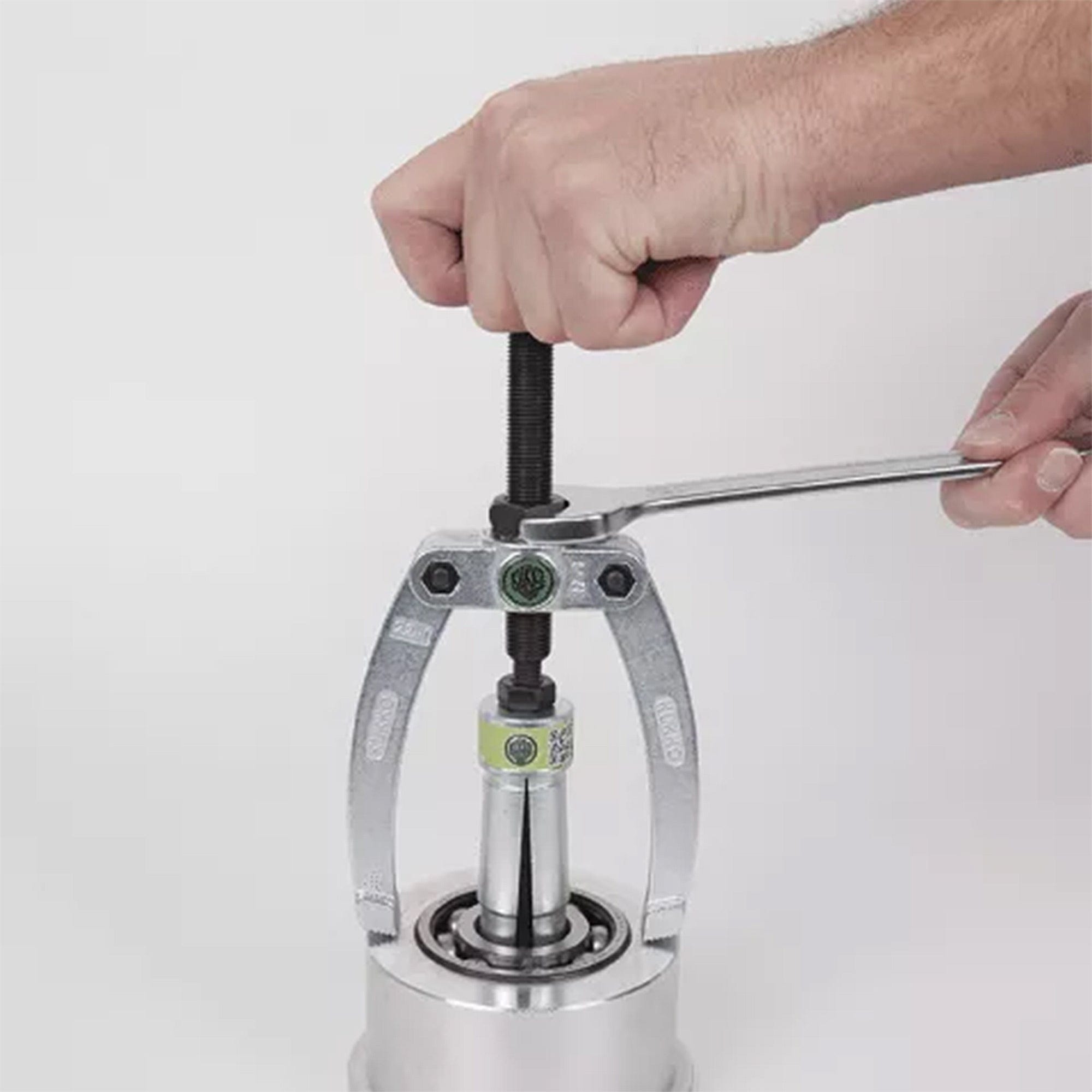

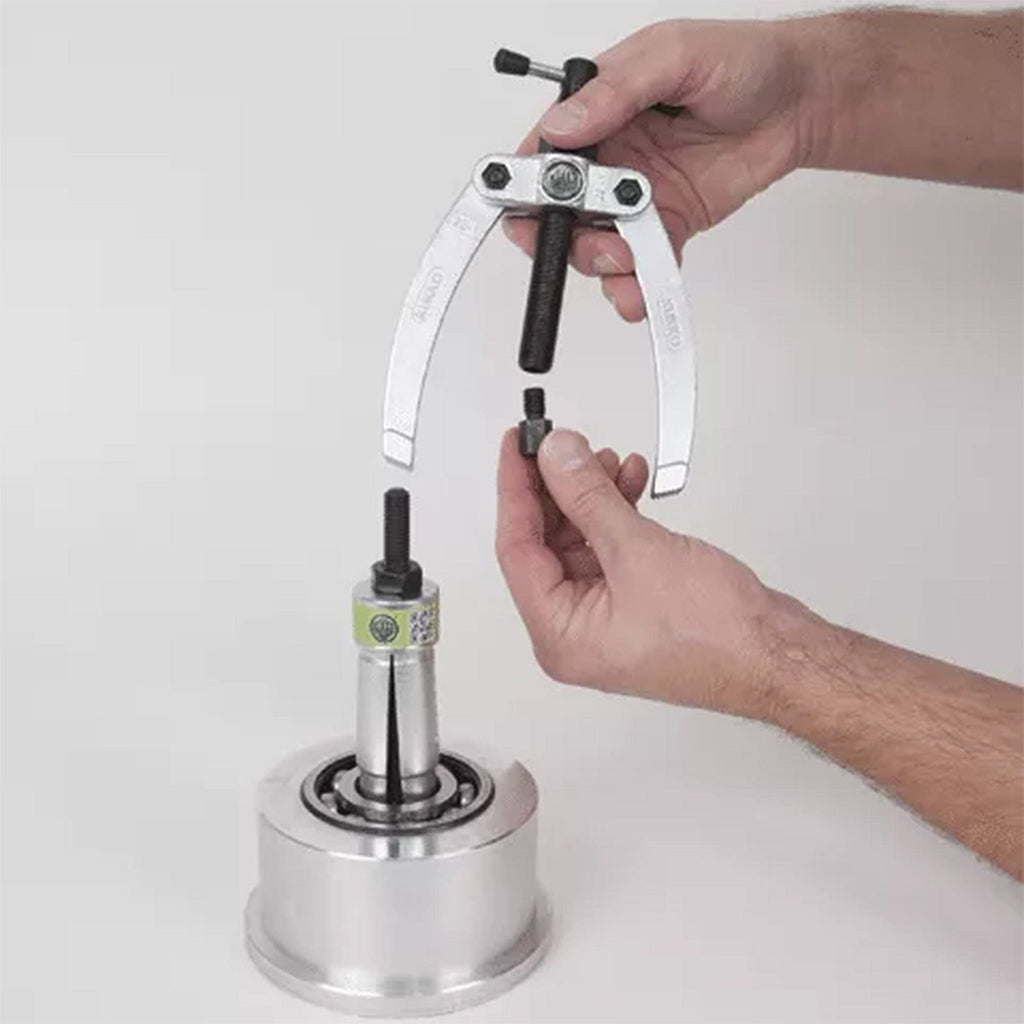

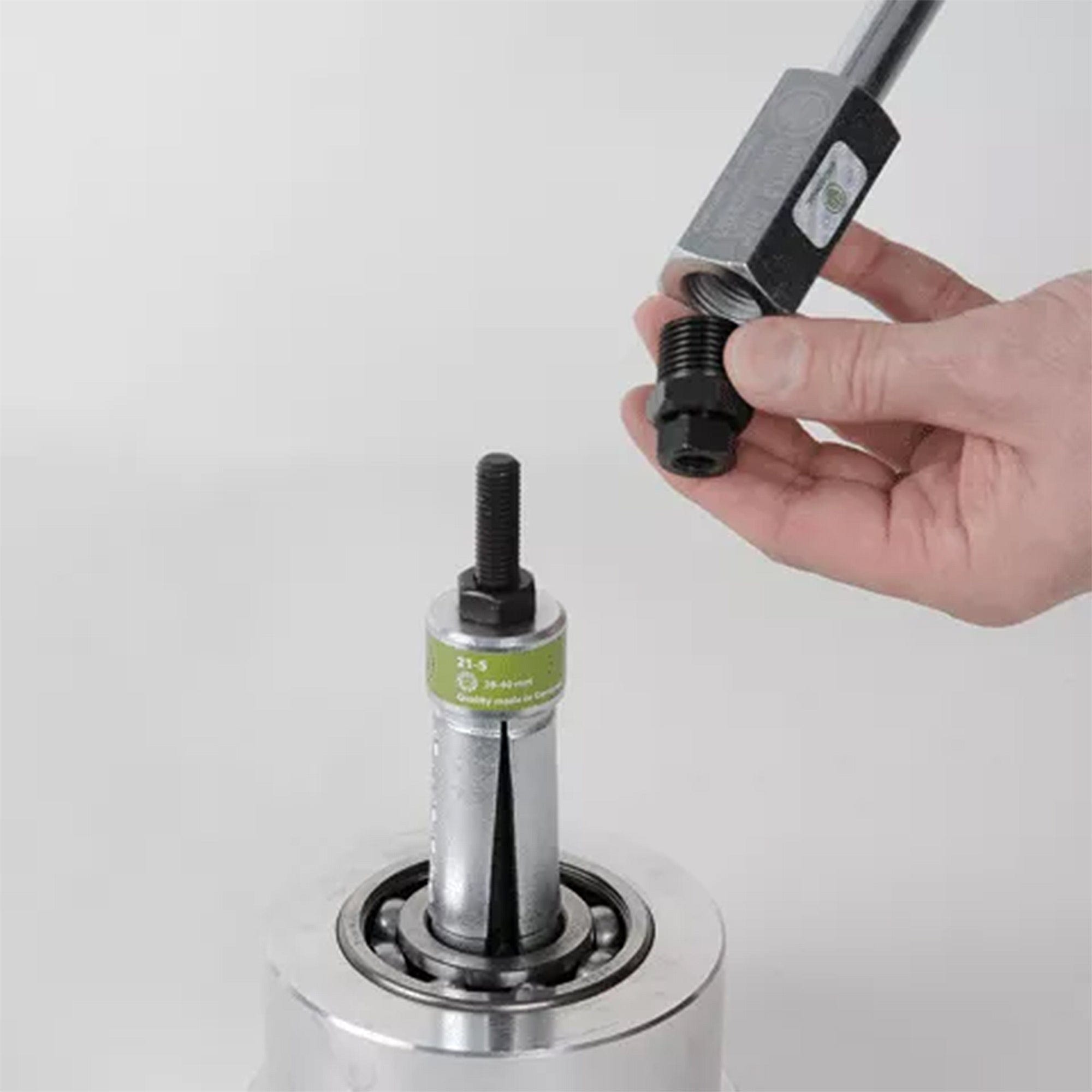

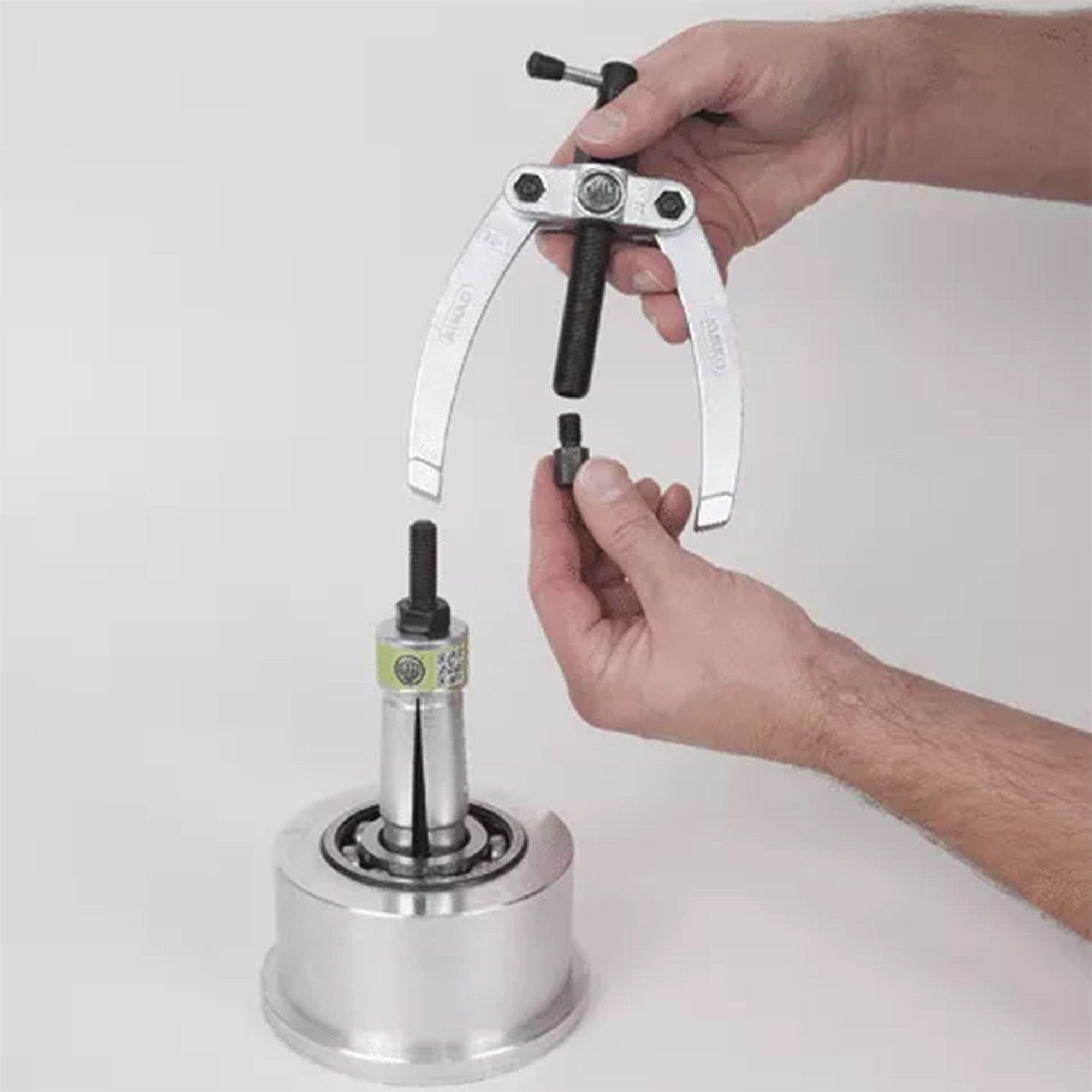

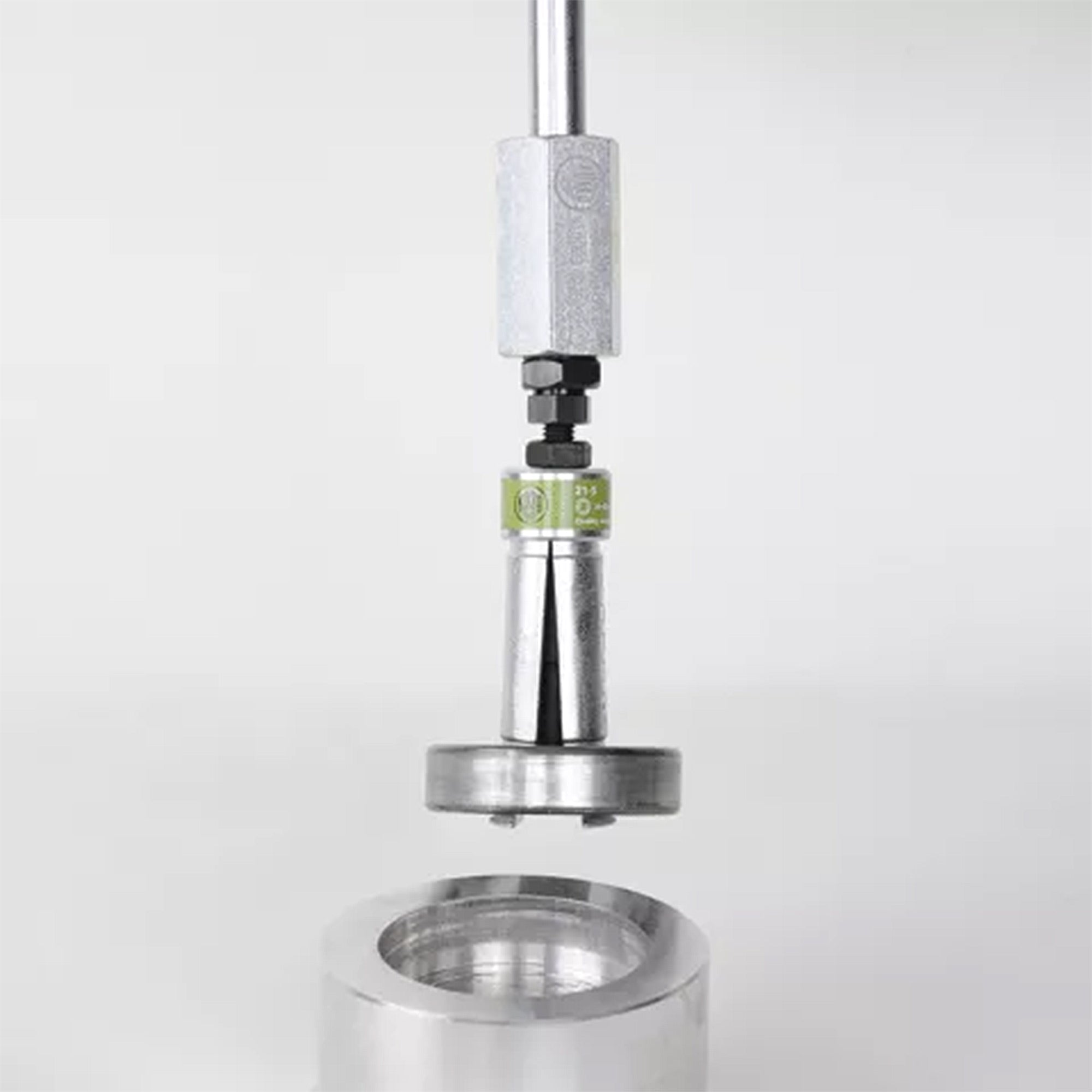

KUKKO internal extractors can be combined with counter supports and slide hammers.
-
When combined with the internal extractors, extensions from series 21-V enable deeper bearings to be extracted.
-
Spare parts are available for internal extractor sizes 21-89 and 21-90.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
Product video can be opened directly on the tool using the QR code.
Functionality
-

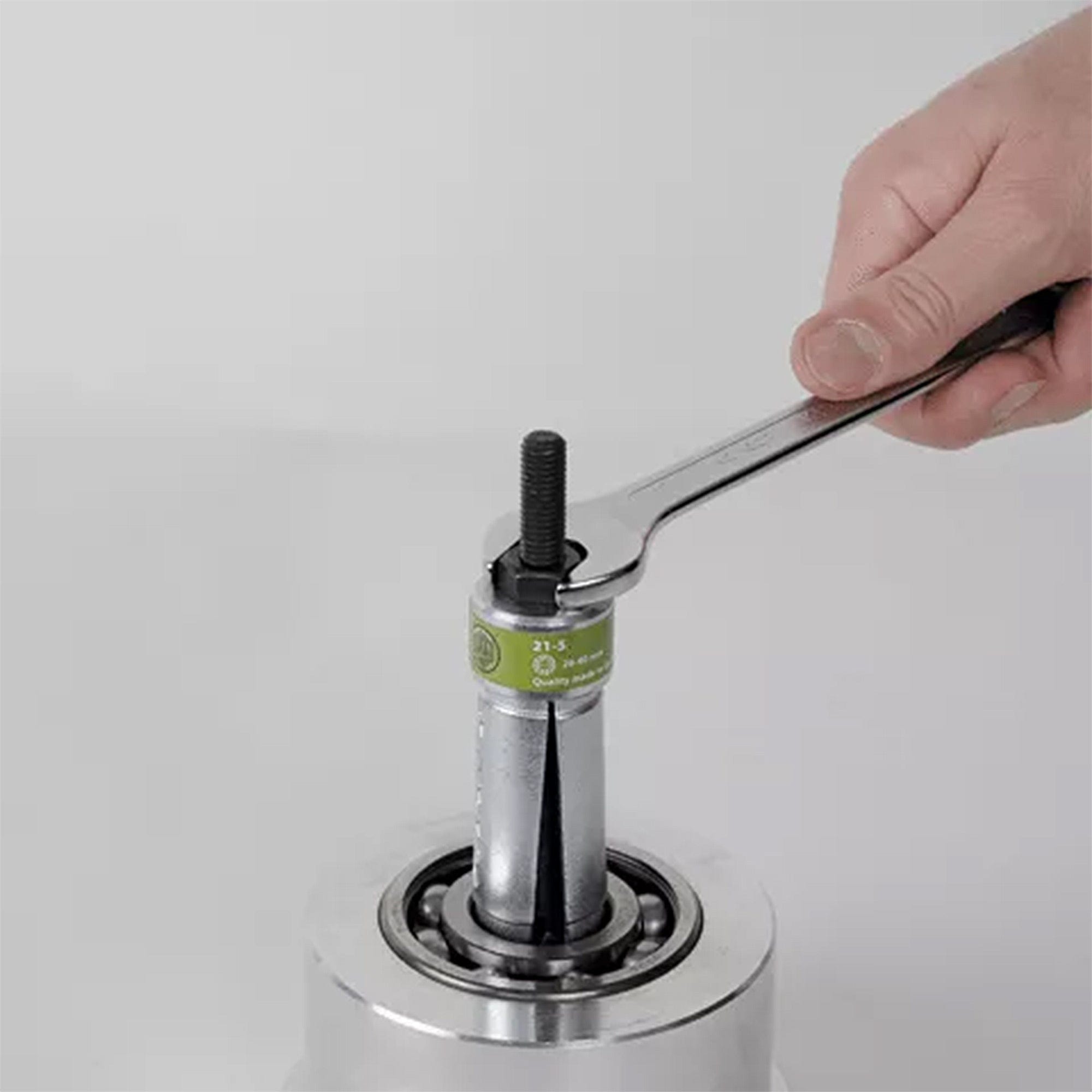

Internal extractors
-
Internal Extracting
