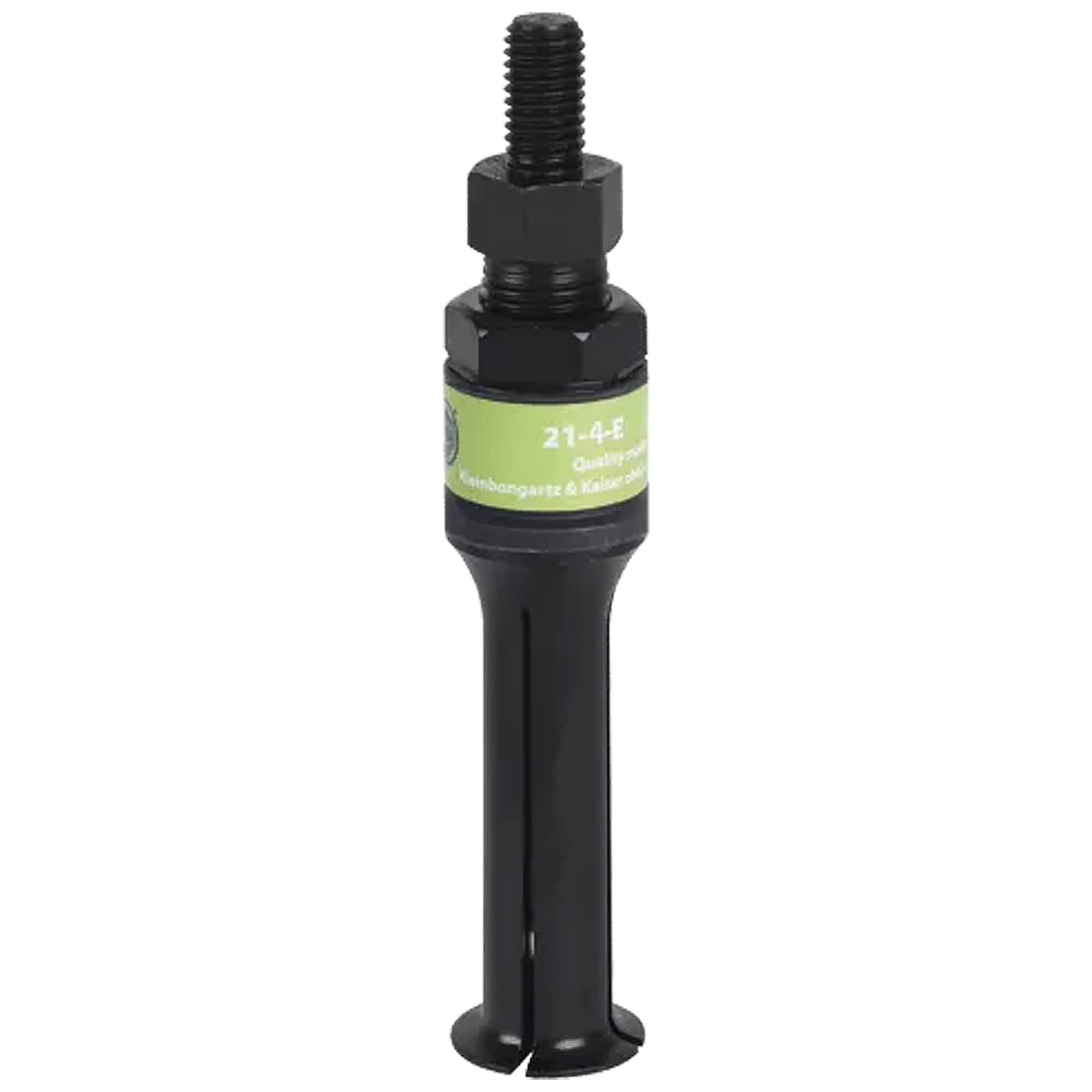

Kukko ToolsSKU: WS03-21-4-E
filler
Price:
$116.60

Description

  • For extracting bearings, bearing outer rings and bushings that lay flat on one another.
  • The segmented design with extra fine grasp edges ensures safe extraction.
  • Mechanical pressure screw.
  • MPN #:21-4-E
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Ball bearing ISO

 6005; 6205; 6305; 6405; 6805; 6905; 16005; 61805; 61905; 6006; 6206; 6306; 6406; 16006; 61806; 61906 6005; 6205; 6305; 6405; 6805; 6905; 16005; 61805; 61905; 6006; 6206; 6306; 6406; 16006; 61806; 61906

Inner diameter of ball bearing

 24 - 34 mm 7/8 - 1 3/8 inch

Effective depth

 58 mm 2 1/4 inch

Length of internal extractor

 98 mm 3 7/8 inch

Number of segments

3

 3

Spanner size of the internal extractor

22 mm

Weight

 0.25 kg



Product Data Sheet



Advantage

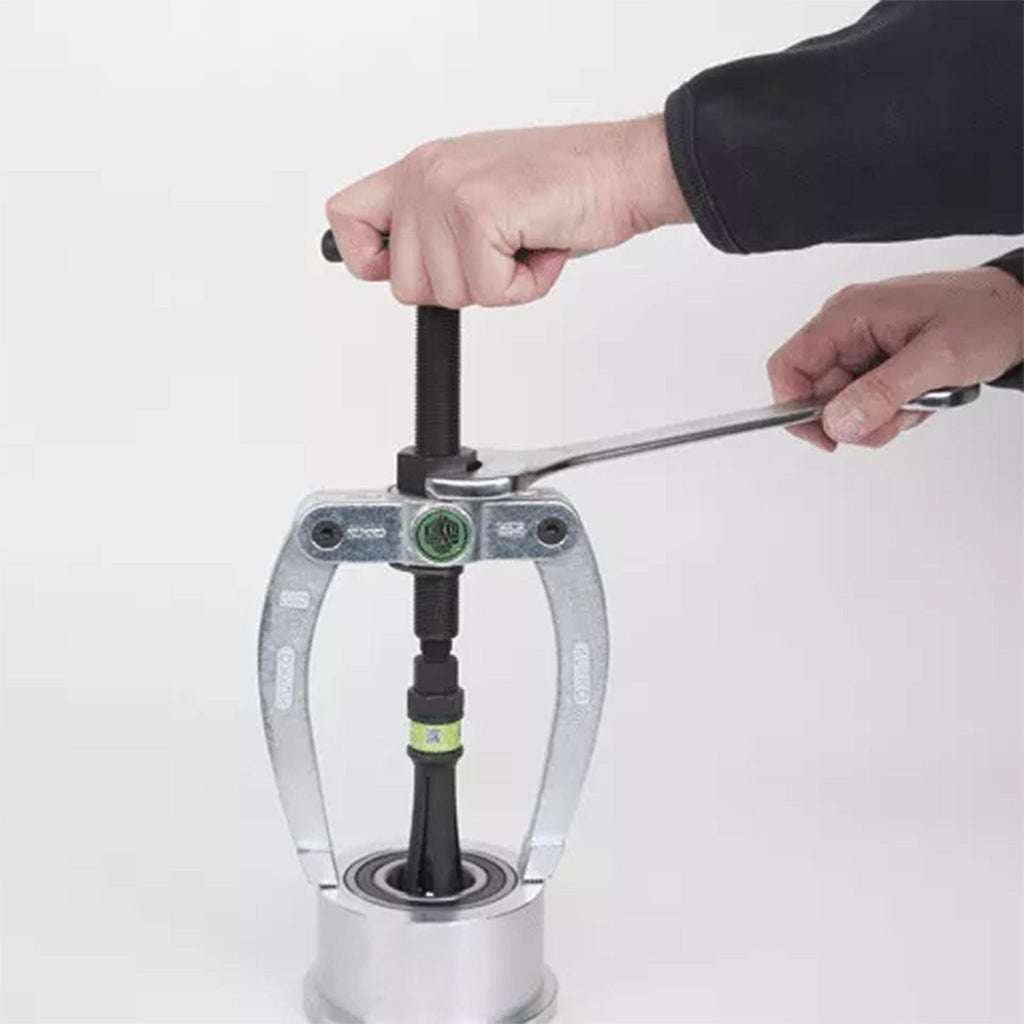

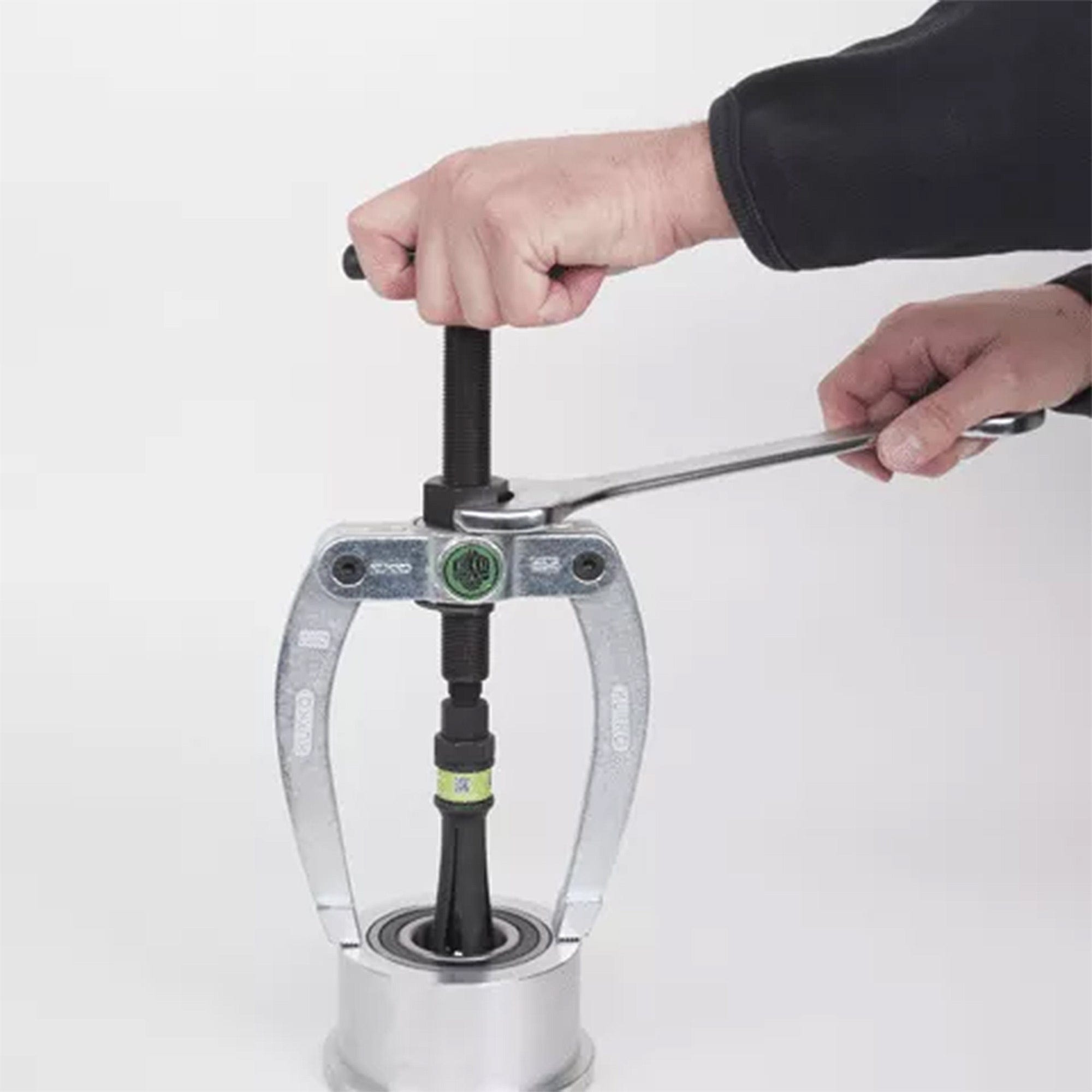

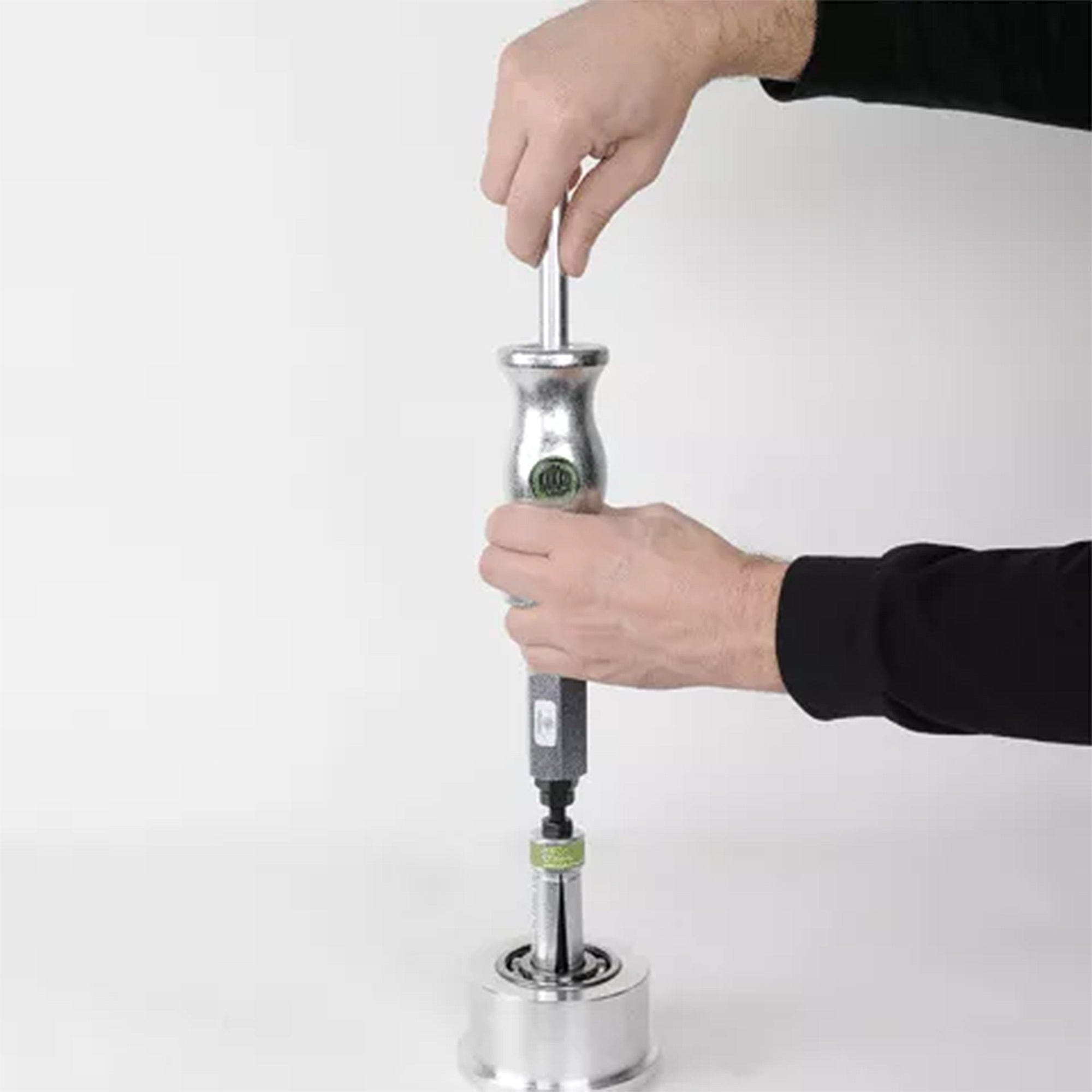

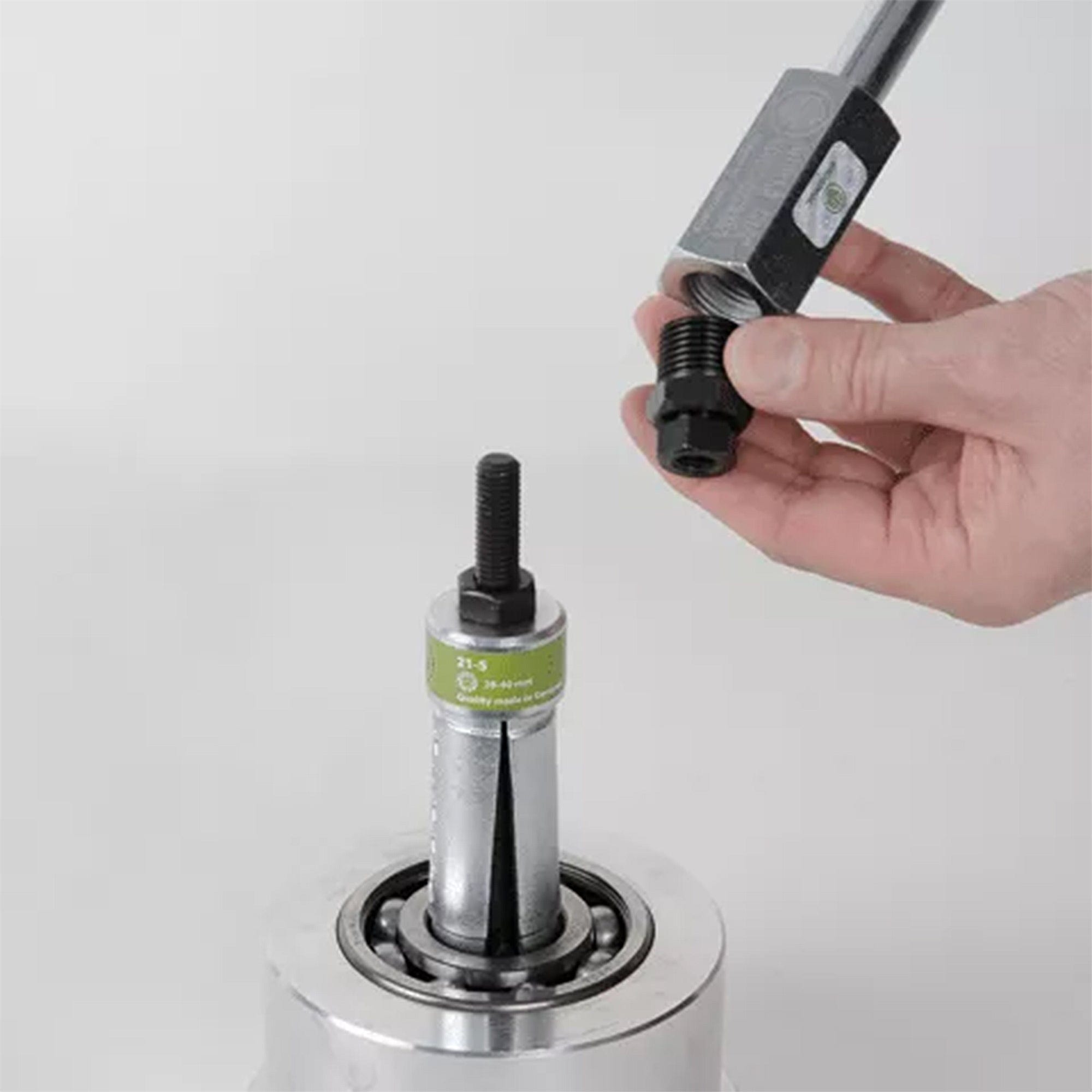

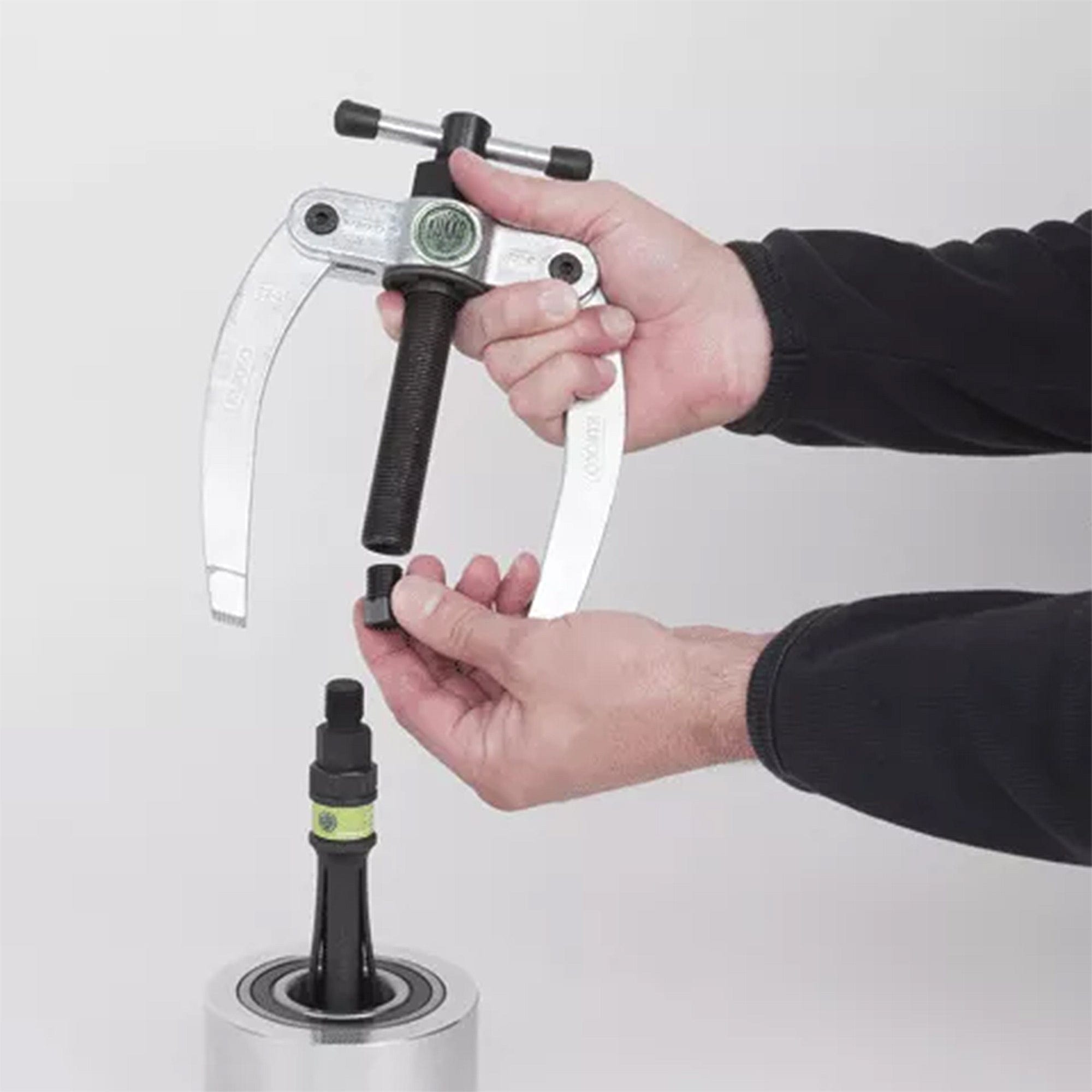

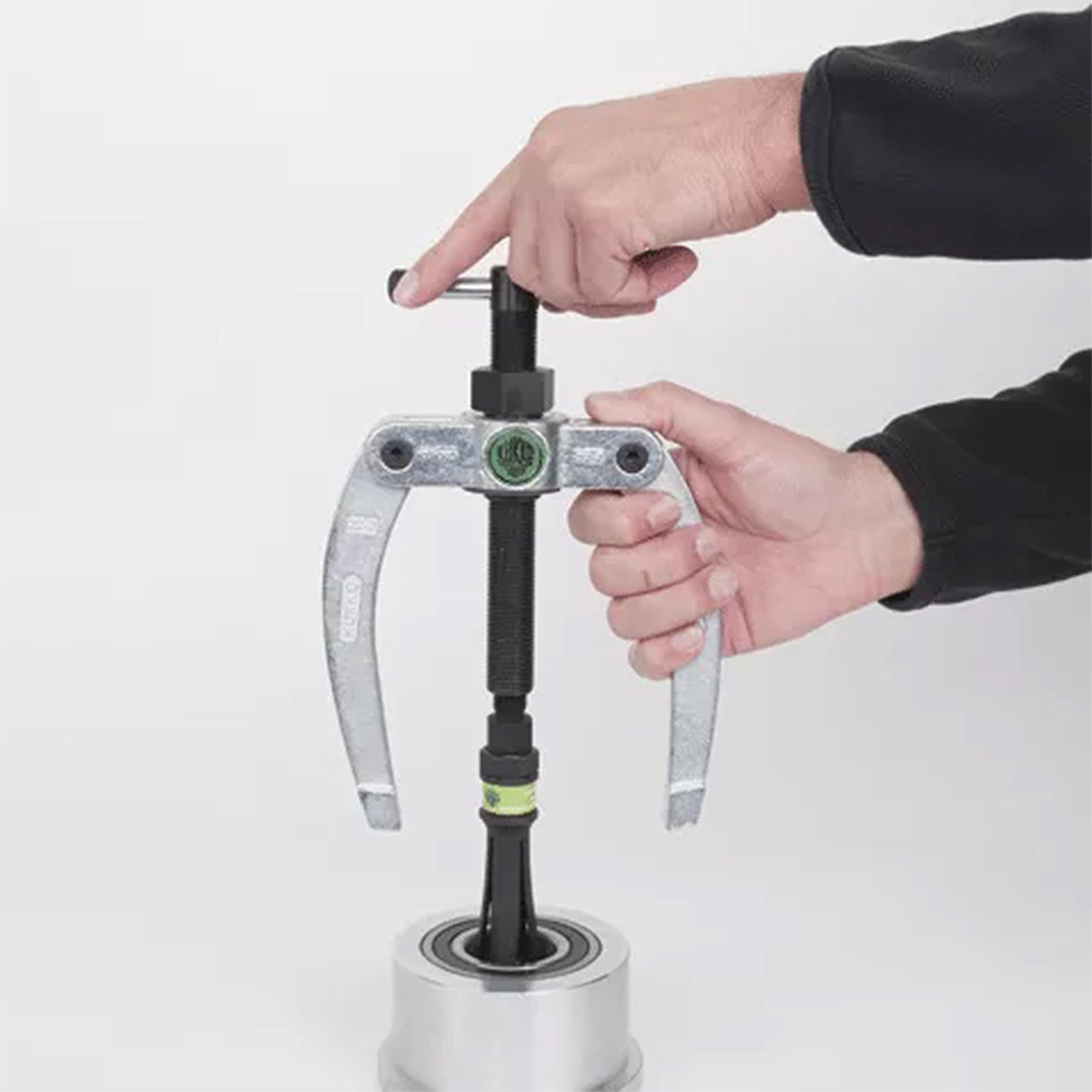

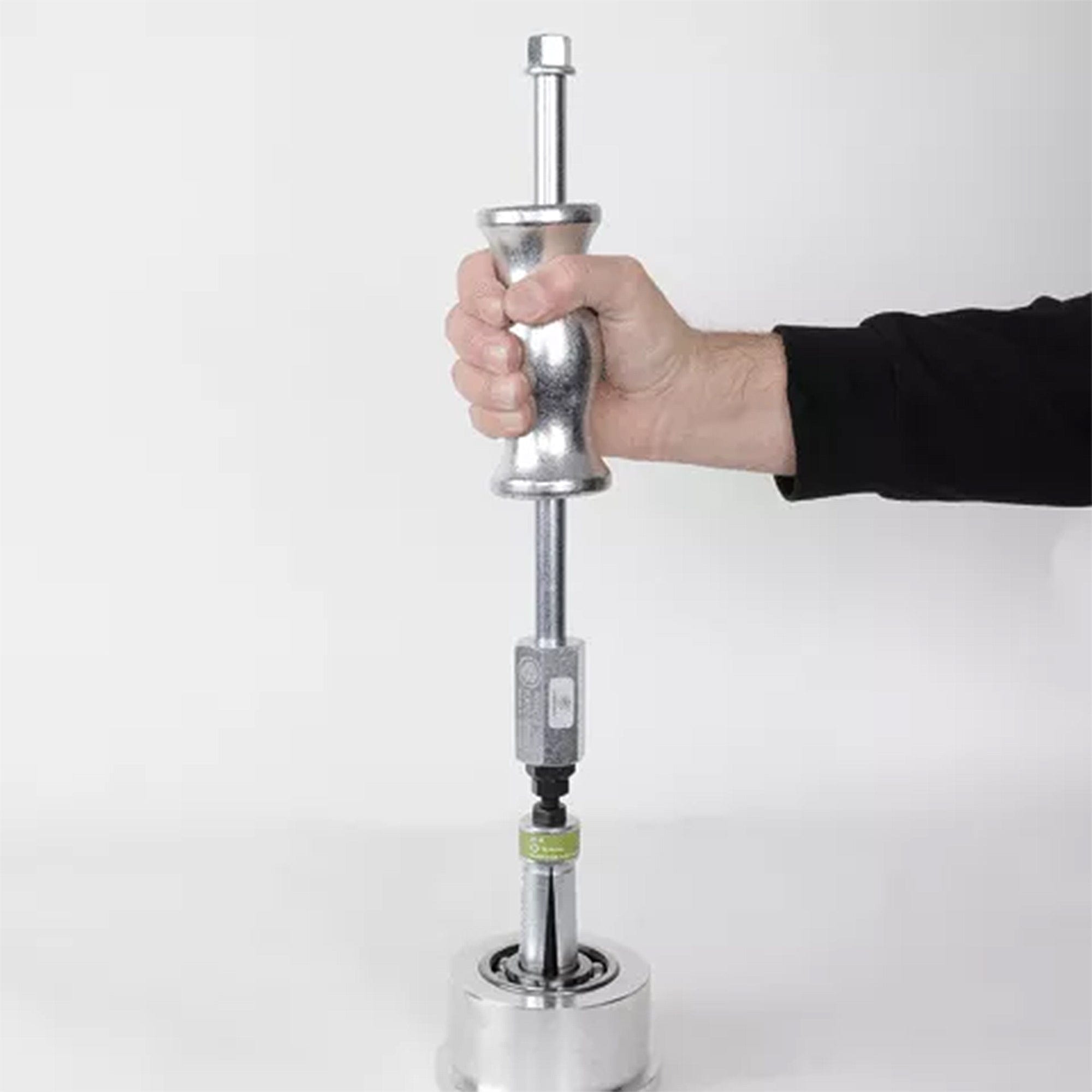

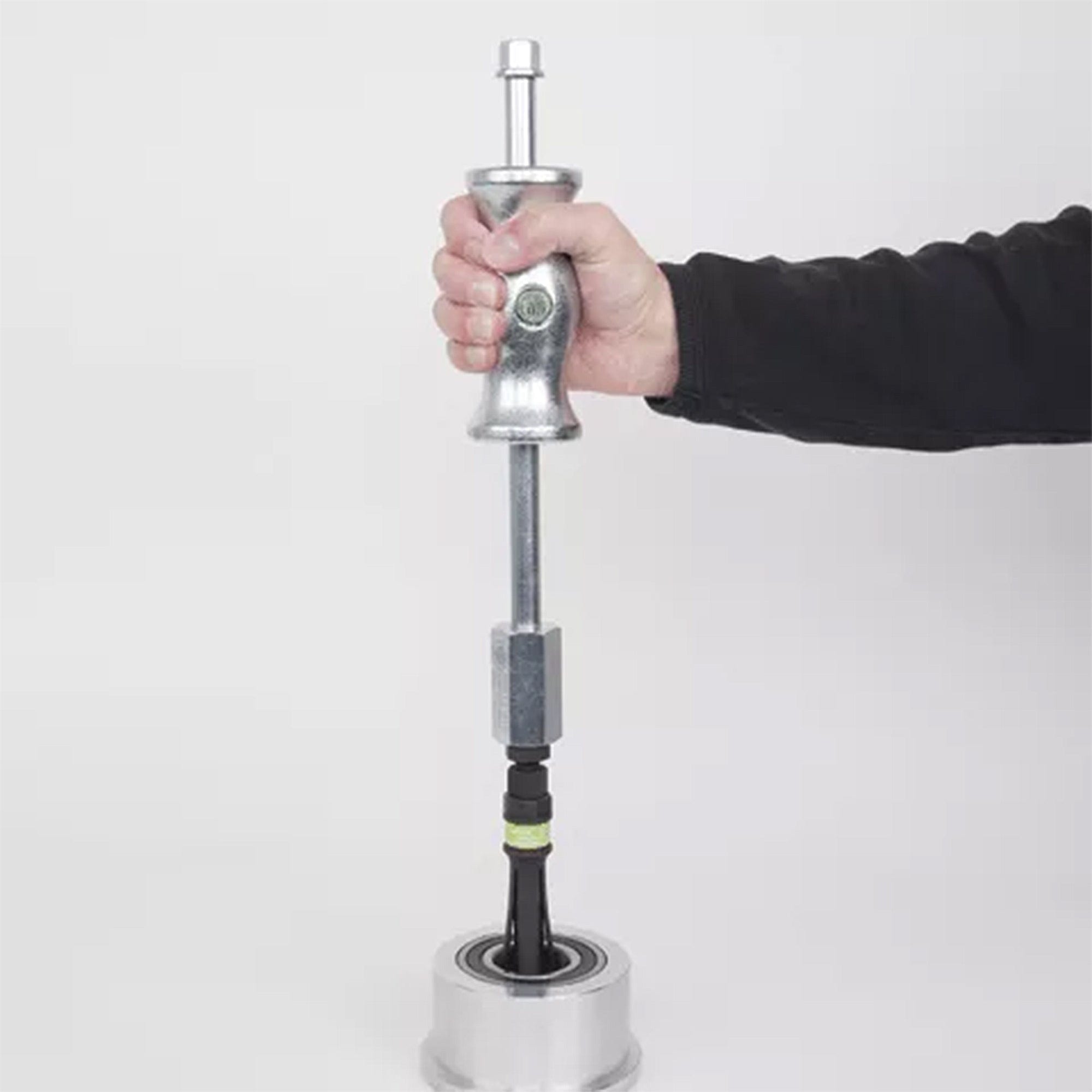

  • KUKKO internal extractors can be combined with counter supports and slide hammers.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Application Video by QR Code directly available on the tool.


Functionality

  • Internal extractors

  • Internal Extracting
