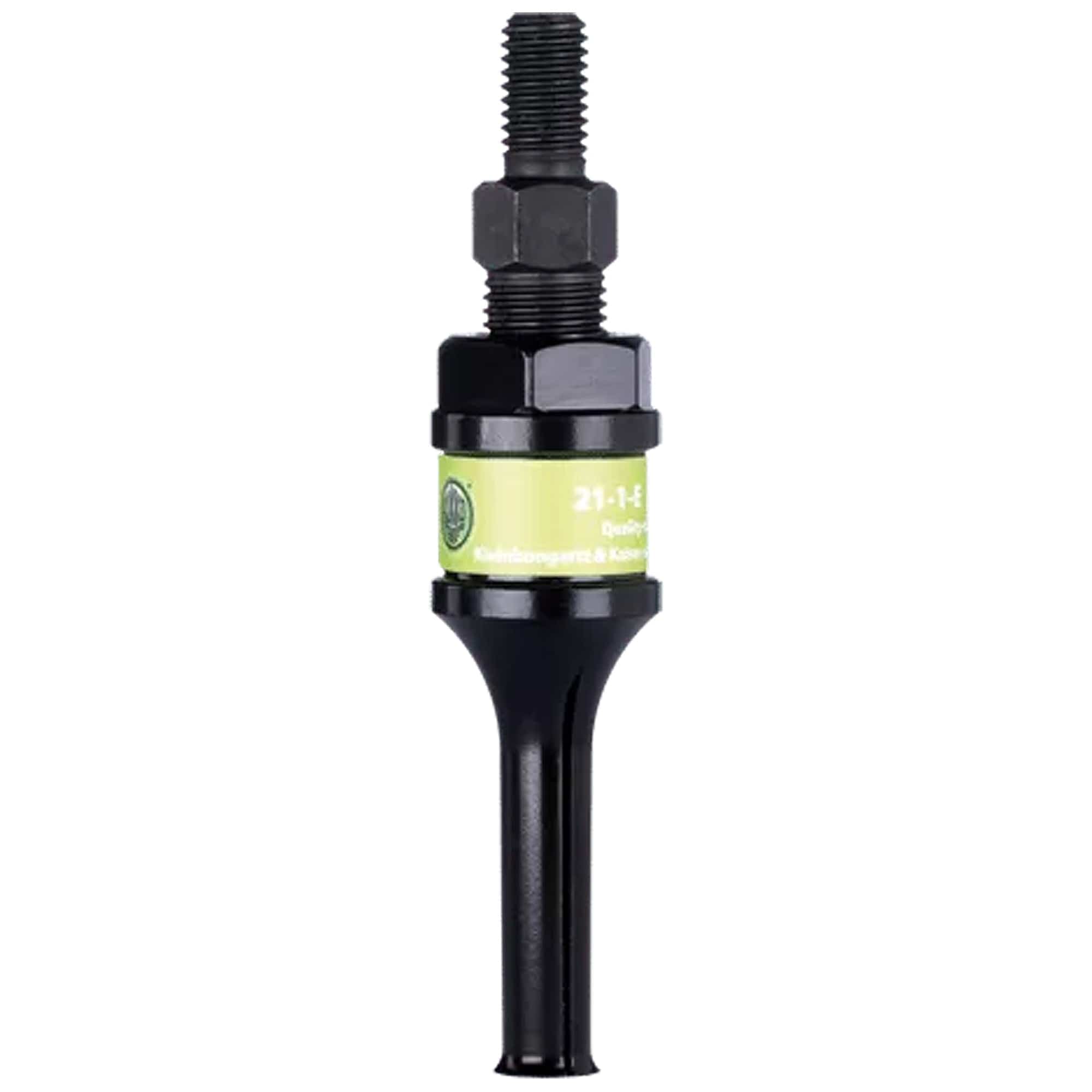

Kukko 21-1-E Internal Extractor With Segmented Grasp Edge 1/2 - 5/8 inch (12 - 16 mm)

|
Kukko ToolsSKU: WS03-21-1-E
filler

Price:
Sale price$116.60

Description

  • For extracting bearings, bearing outer rings and bushings that lay flat on one another.
  • The segmented design with extra fine grasp edges ensures safe extraction.
  • Mechanical pressure screw.
  • MPN #:21-1-E
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Ball bearing ISO

6001; 6201; 6301; 6801; 6901; 16001; 16101; 61801; 61901; 62201; 62301; 6002; 6202; 6302; 6802; 6902; 16002; 61802; 61902 6001; 6201; 6301; 6801; 6901; 16001; 16101; 61801; 61901; 62201; 62301; 6002; 6202; 6302; 6802; 6902; 16002; 61802; 61902

Inner diameter of ball bearing

12 - 16 mm 1/2 - 5/8 inch

Effective depth

35 mm 1 3/8 inch

Length of internal extractor

80 mm 3 3/16 inch

Number of segments

3 3

Spanner size of the internal extractor

22 mm

Weight

0.17 kg



Product Data Sheet



Advantage

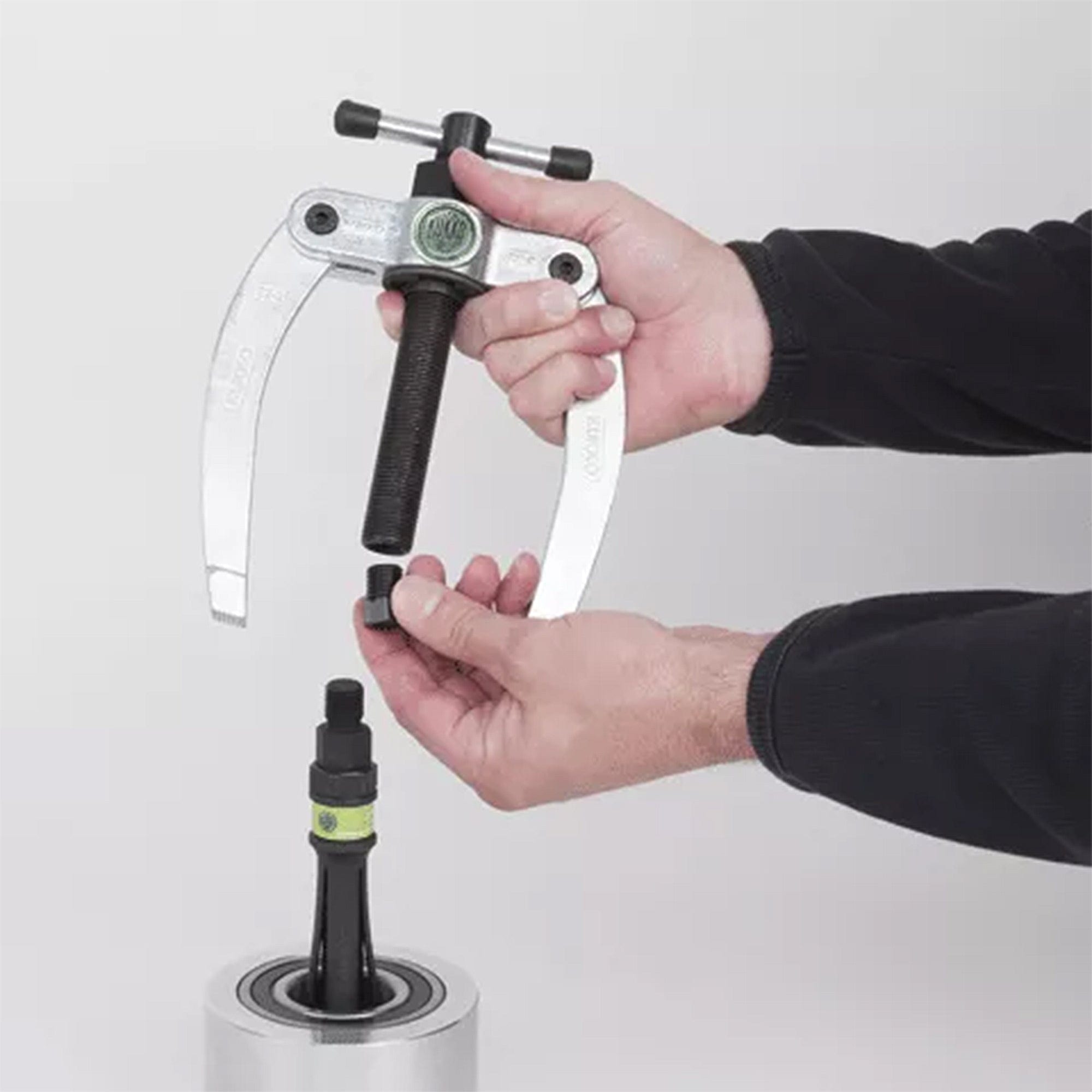

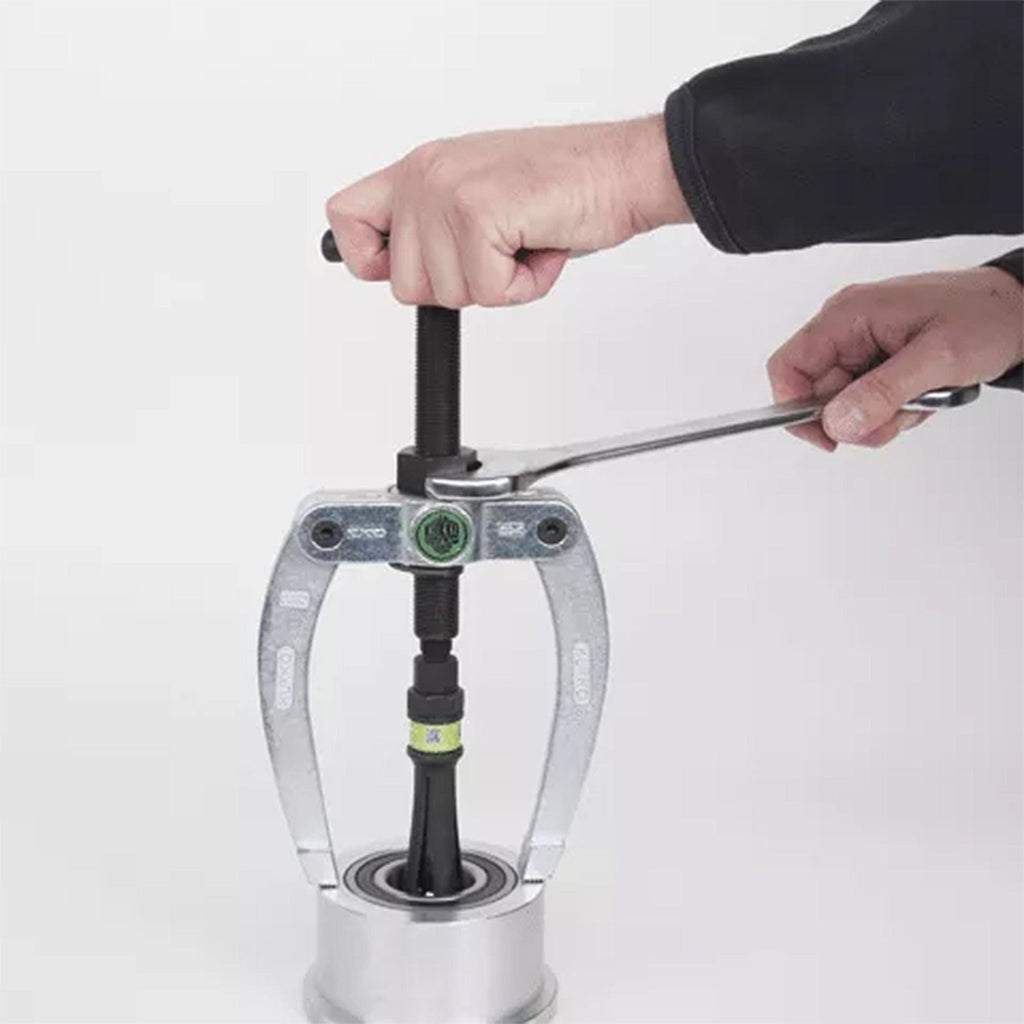

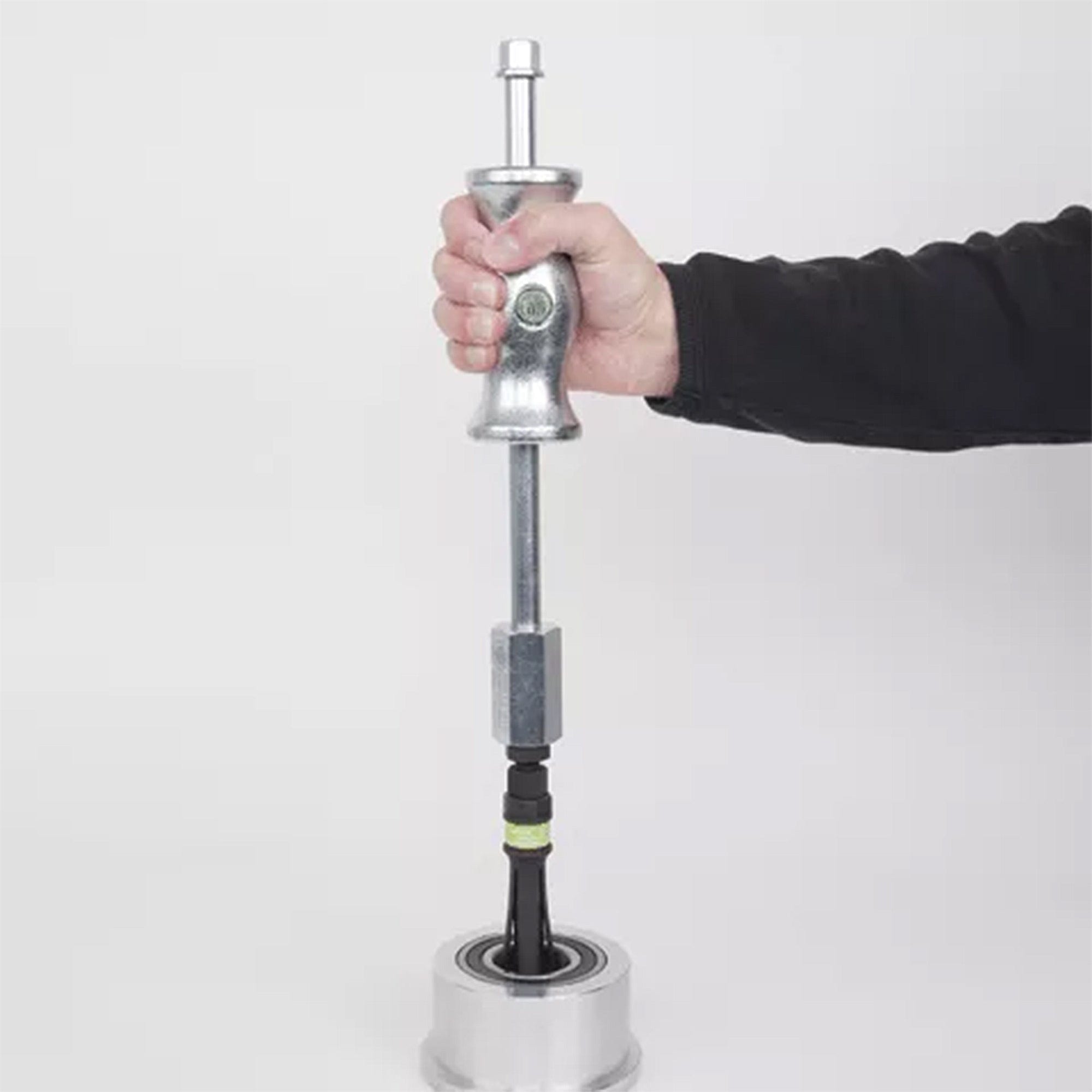

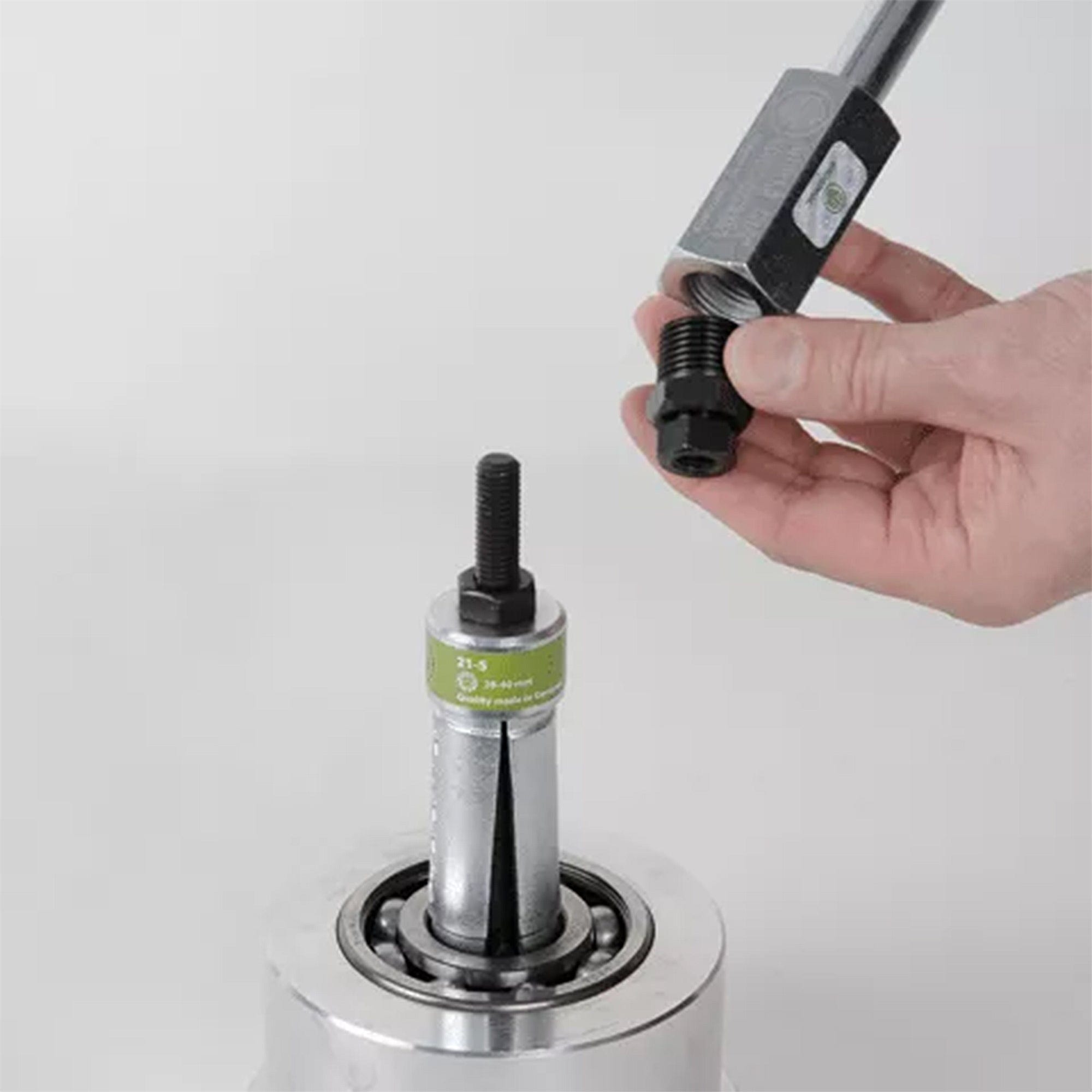

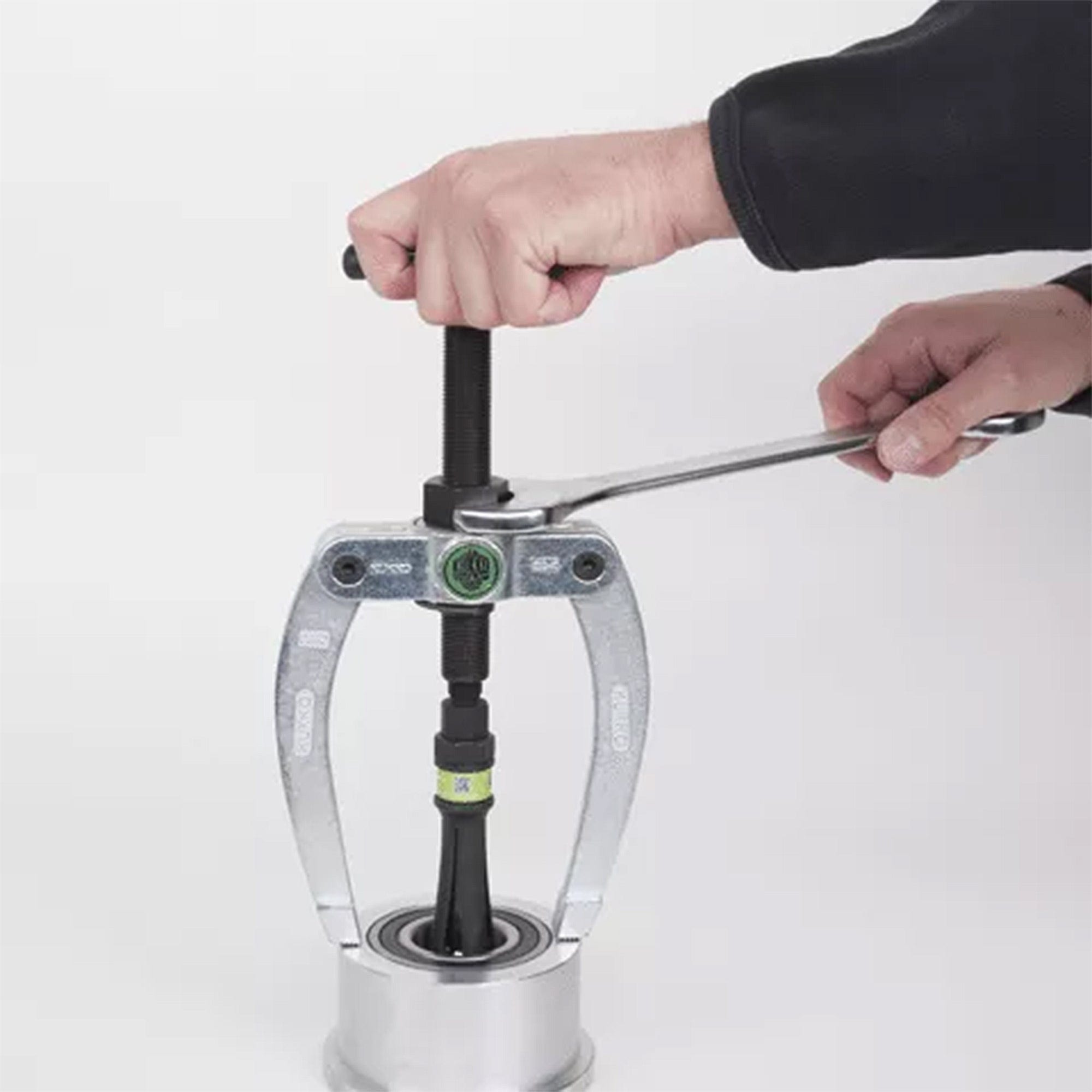

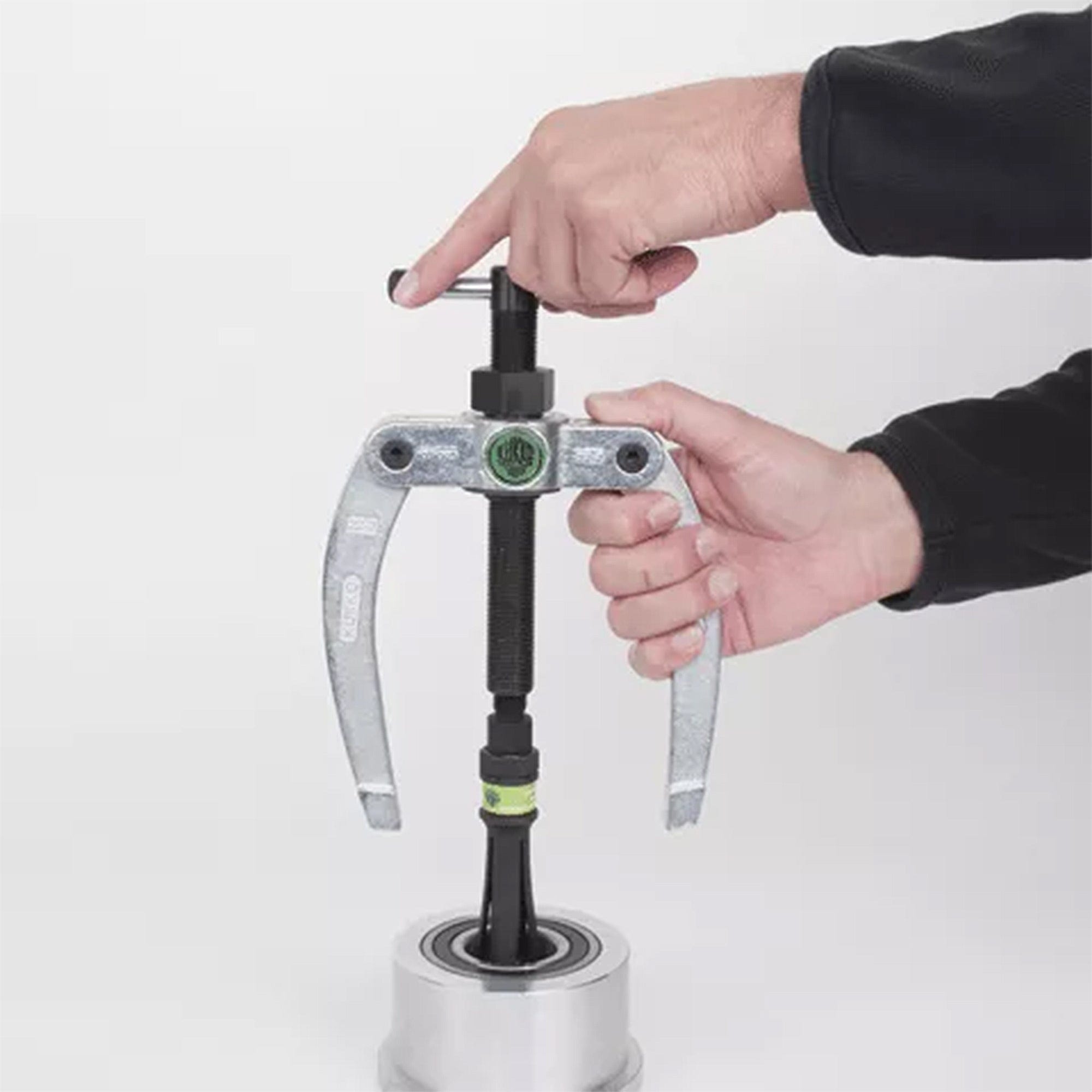

  • KUKKO internal extractors can be combined with counter supports and slide hammers.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Application Video by QR Code directly available on the tool.



Functionality

  • Internal extractors

  • Internal Extracting
