Description

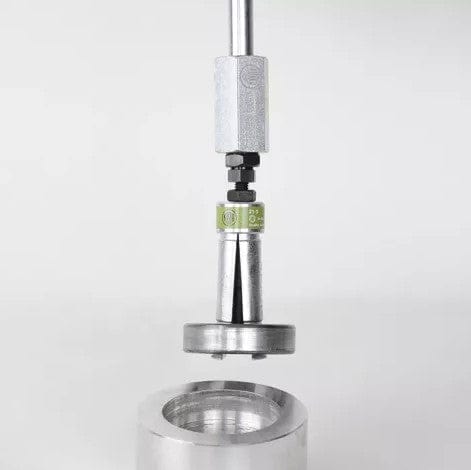

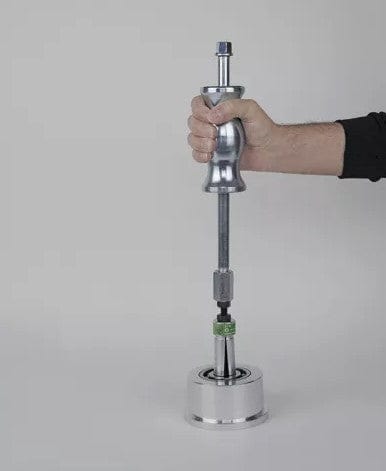

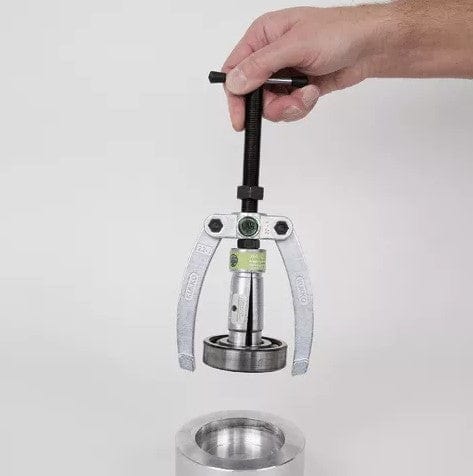

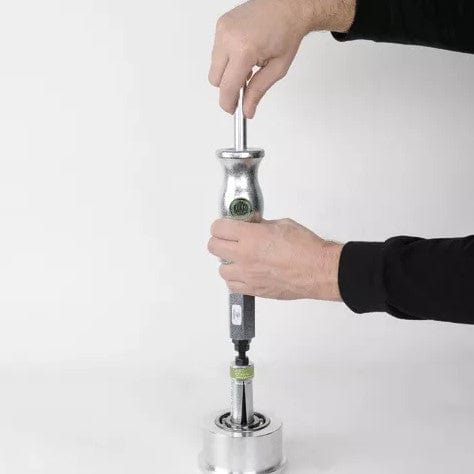

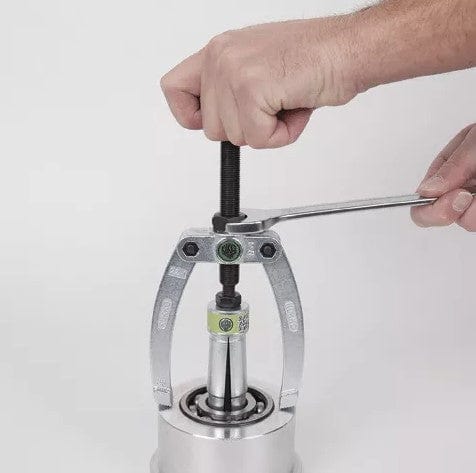

- For extracting inner bearings, bearing outer rings and bushings
- The 2-shell design with extra large grasp edges ensures safe extraction.
- The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
- Mechanical pressure screw.
- MPN #: 21-0
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
|
Ball bearing ISO |
625; 635; 626; 607; 627; 608; 619/8; 628/8 |
625; 635; 626; 607; 627; 608; 619/8; 628/8 |
|
Inner diameter of ball bearing |
5 - 8 mm | 1/4 - 3/8 inch |
|
Effective depth |
14 mm | 5/8 inch |
|
Length of internal extractor |
73 mm | 2 7/8 inch |
|
Number of segments |
2 | 2 |
|
Weight |
0.115 kg |
Advantage
-
KUKKO internal extractors can be combined with counter supports and slide hammers.
-
When combined with the internal extractors, extensions from series 21-V enable deeper bearings to be extracted.
-
Spare parts are available for internal extractor sizes 21-89 and 21-90.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
Product video can be opened directly on the tool using the QR code.
Functionality
-
Internal extractors
-
Internal Extracting
