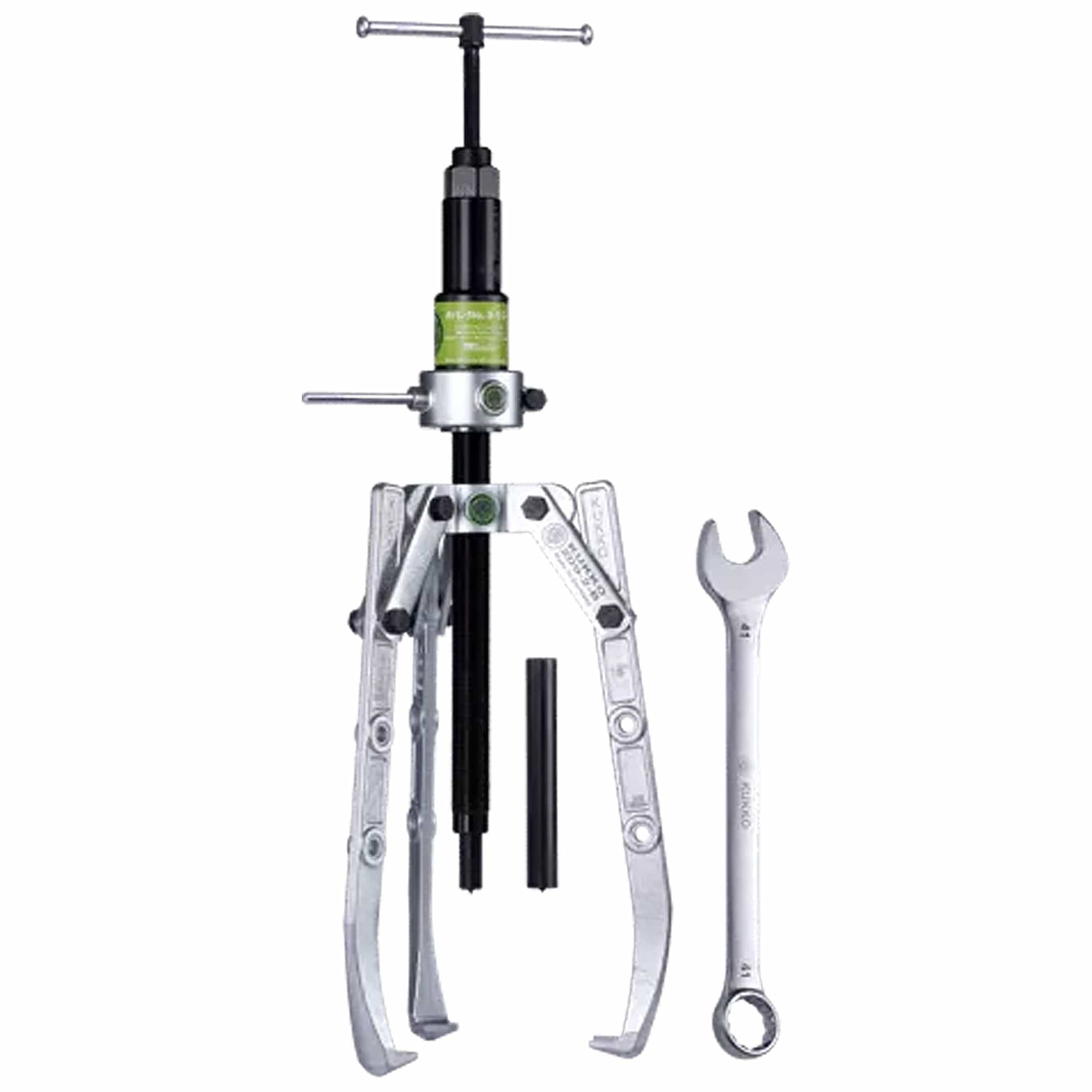

Kukko 209-2-B Universal 3-Jaw Economy Puller With Adjustable Reach, Long Hydraulic Spindle And Swiveling Jaws 4 3/8 - 19 3/4 inch (110 - 450 mm)

|
Kukko ToolsSKU: WS03-209-2-B
filler

Price:
Sale price$1,407.30

Description

  • For pulling particularly tight bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • Two-arm design for space-saving operation.
  • Mechanical pressure screw.
  • Grease hydraulics.
  • Milled thread treated with special coating.
  • MPN #:209-2-B
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

110 - 450 mm 4 3/8 - 19 3/4 inch

Depth

225 - 400 mm 8 7/8 - 15 3/4 inch

Number of possible depths

3 3

Maximum load

15 t 16.5 US t

Maximum torque

45 Nm 33 ft lb

Weight

15.45 kg

Space below

20 mm 3/4 inch

Space next to it

46 mm 1 7/8 inch

Number of jaws

3 3



Product Data Sheet



Advantage

  • Easy and even pulling for particularly tight parts.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Universal application thanks to adjustable depths.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Puller Economy
