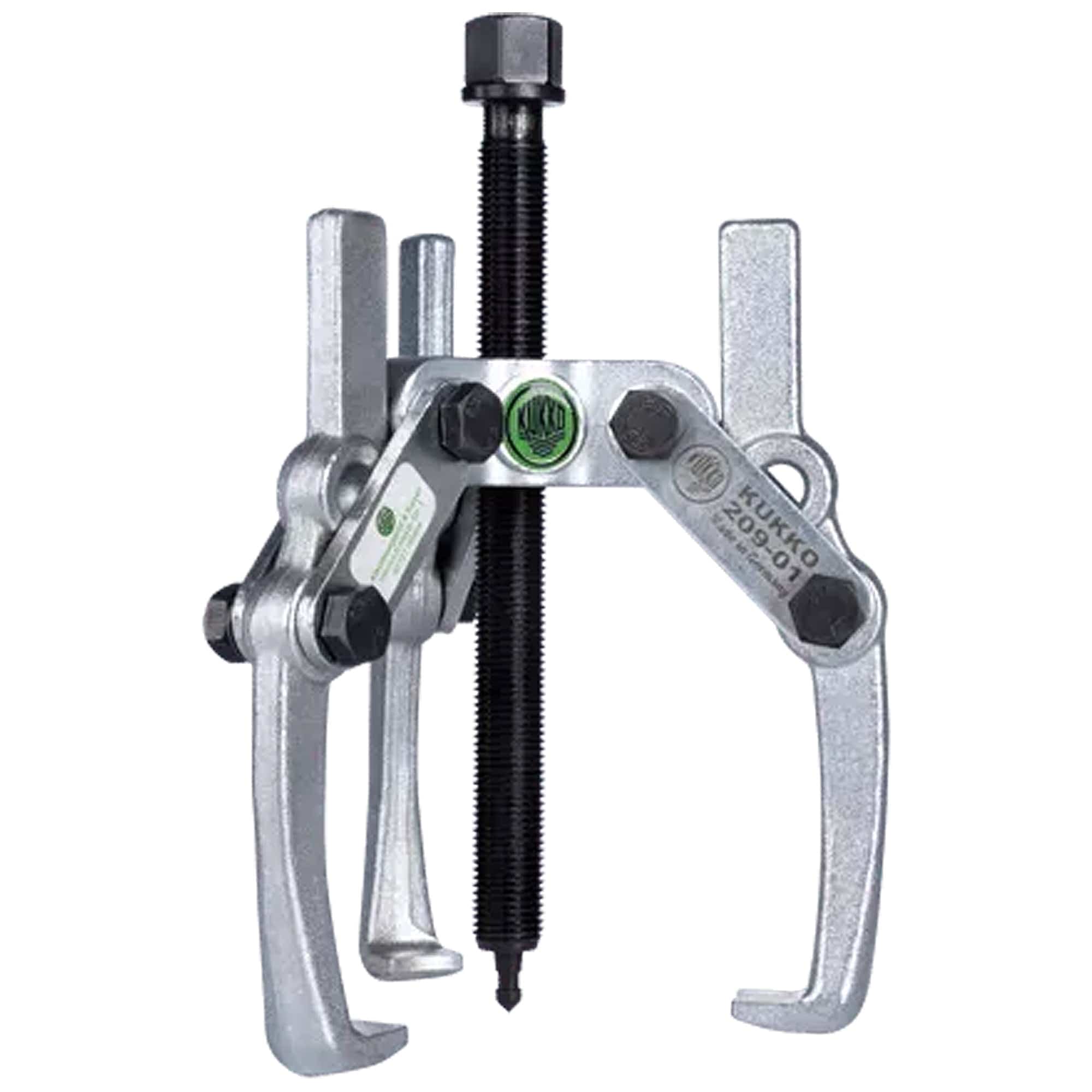

Kukko 209-01 Universal 3-Jaw Puller With Adjustable Reach And Swiveling Jaws 3/4 - 6 3/4 inch (20 - 170 mm)

|
Kukko ToolsSKU: WS03-209-01
filler

Price:
Sale price$151.80

Description

  • For removing bearings, gears, discs, etc.
  • Curved, swiveling standard puller hooks with height adjustment.
  • Two-arm design for space-saving operation.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • If there is not adequate free space around the part to be removed, we recommend a 2-jaw puller series 208 for optimal force distribution.
  • MPN #:209-01
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

20 - 170 mm 3/4 - 6 3/4 inch

Depth

95 - 125 mm 3 3/4 - 4 7/8 inch

Number of possible depths

2 2

Hexagon drive (male)

17 mm

Maximum load

2 t 2 US t

Maximum torque

20 Nm 14.5 ft lb

Weight

1.32 kg

Space below

10 mm 3/8 inch

Space next to it

26 mm 1 1/32 inch

Number of jaws

3 3



Product Data Sheet



Advantage

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Universal application thanks to adjustable depths.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Puller Economy
