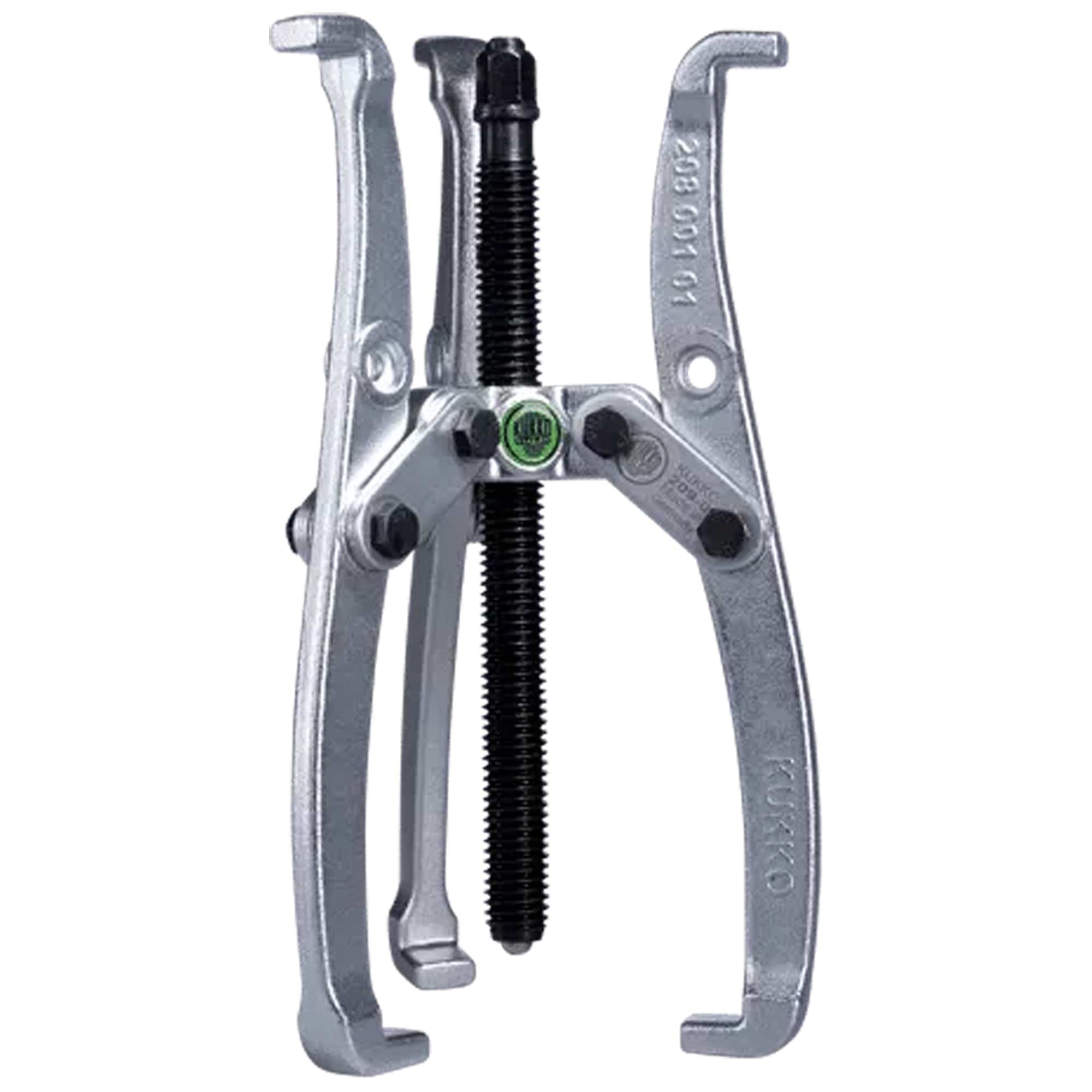

Kukko 209-0 3-Jaw Puller With Reversible Double-end Jaws 1 3/16 - 3 7/8 inch (30 - 100 mm)

|
Kukko ToolsSKU: WS03-209-0
filler

Price:
Sale price$86.80

Description

  • For removing bearings, gears, discs, etc.
  • Swiveling and reversible puller hooks.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • Parallel pulling hooks in every position, even with full load.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:209-0
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

30 - 100 mm 1 3/16 - 3 7/8 inch

Depth

50 - 100 mm 2 - 3 7/8 inch

Number of possible depths

2 2

Hexagon drive (male)

8 mm

Maximum load

1 t 1 US t

Maximum torque

20 Nm 14.5 ft lb

Weight

0.485 kg

Space below

5 mm 3/16 inch

Space next to it

20 mm 3/4 inch

Number of jaws

3 3



Product Data Sheet



Advantage

  • The pulling hooks are reversible and can be used on both sides with various different types of hooks.

  • Universal application thanks to adjustable depths.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Puller Economy
