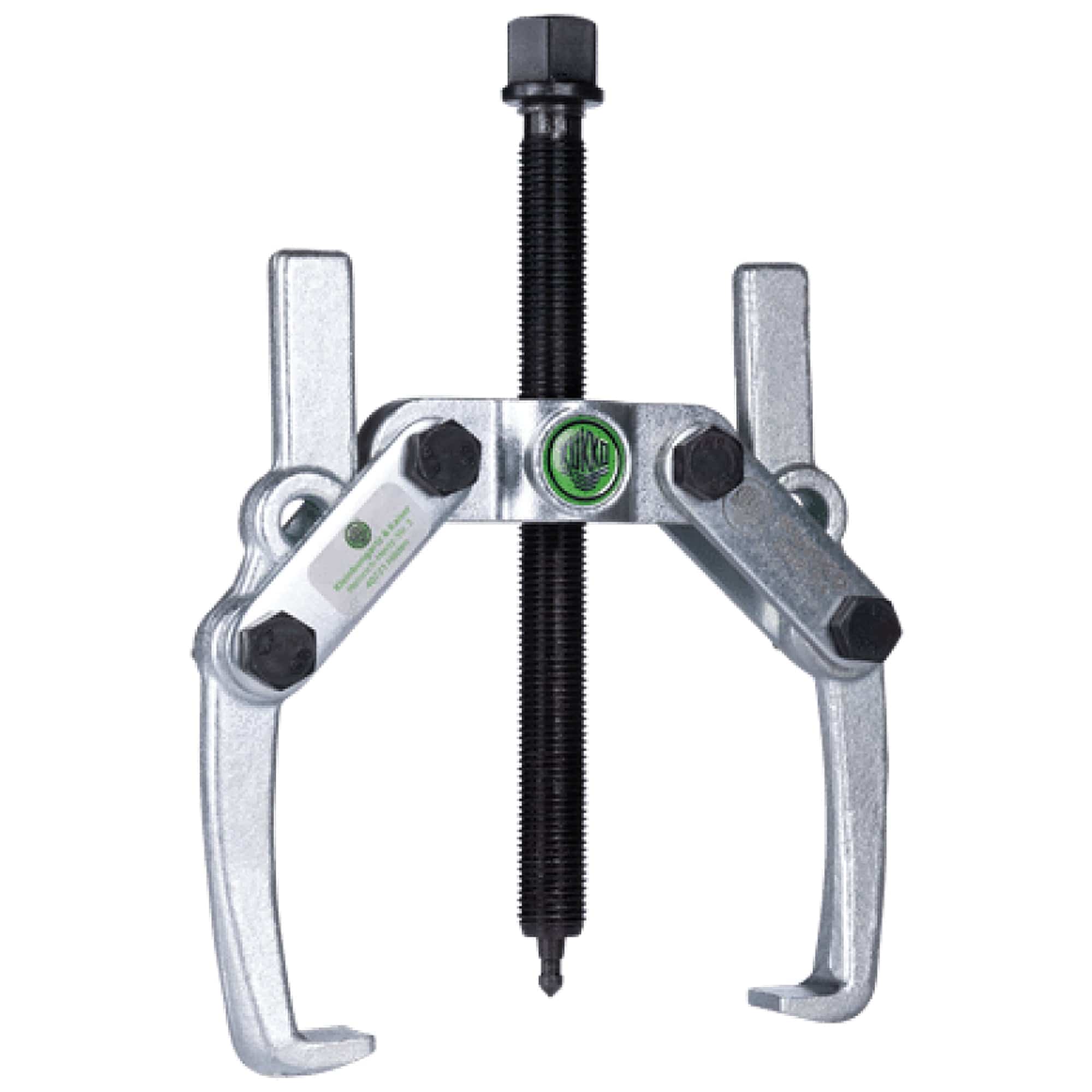

Description
- Curved, swiveling standard puller hooks with height adjustment.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend a 3-jaw puller series 209 for optimal force distribution.
-
MPN #:208-02
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
20 - 230 mm | 3/4 - 9 1/16 inch |
Depth |
150 - 190 mm | 5 7/8 - 7 1/2 inch |
Number of possible depths |
2 | 2 |
Hexagon drive (male) |
22 mm | |
Maximum load |
2,5 t | 2.5 US t |
Maximum torque |
50 Nm | 6.5 ft lb |
Weight |
2.49 kg | |
Space below |
13 mm | 1/2 inch |
Space next to it |
30 mm | 1 3/16 inch |
Number of jaws |
2 | 2 |
Advantage
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Universal application thanks to adjustable depths.
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Puller Economy
