Description

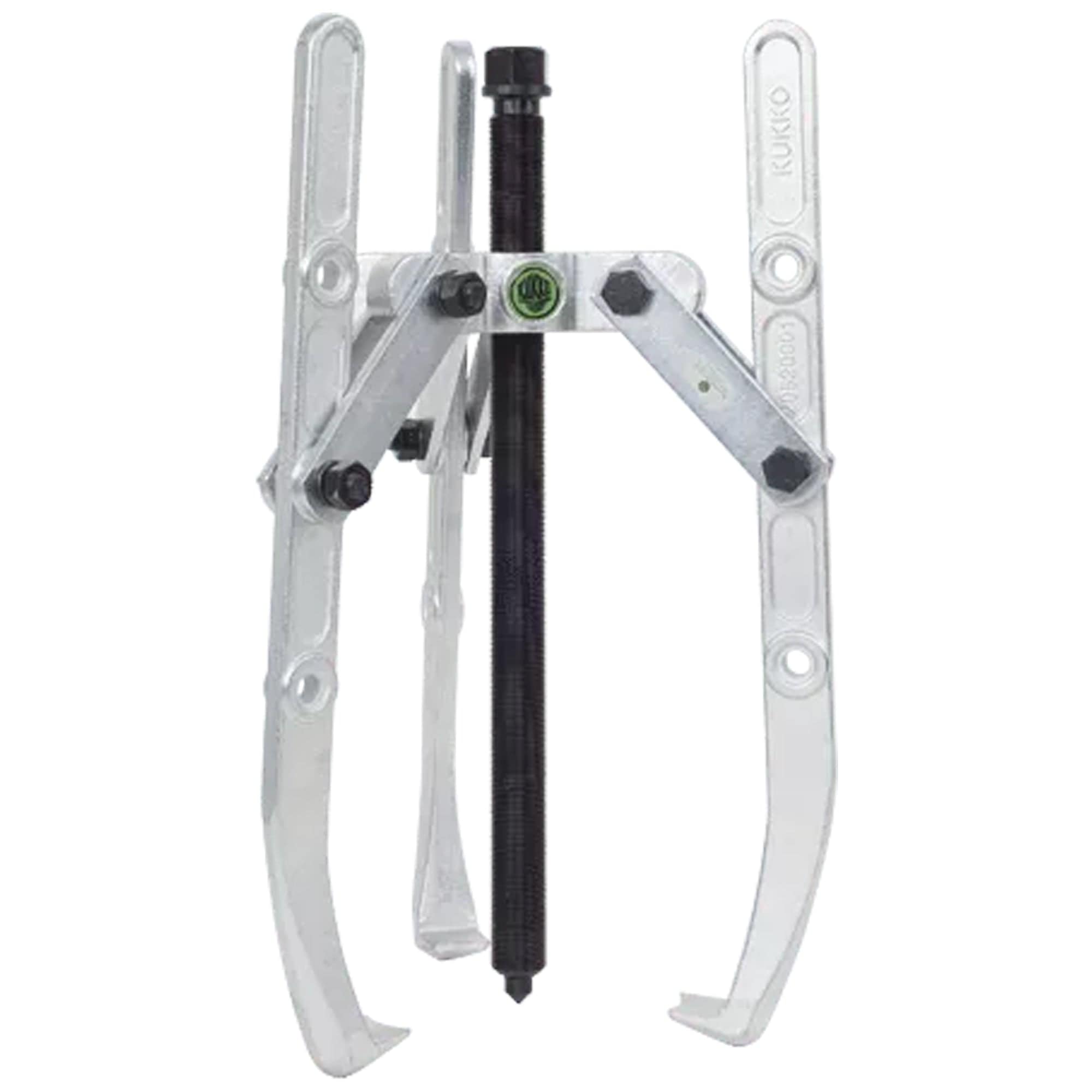

- Swivelling puller jaws.
- 2-jaw and 3-jaw combination cross beam.
- Mechanical pressure screw.
- Milled thread treated with special coating.
-
MPN #:207-02
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
26 - 300 mm | 1 1/32 - 11 7/8 inch |
Depth |
220 mm | 8 5/8 inch |
Jaw depth with hydraulic spindle |
170 mm | 6 3/4 inch |
Number of possible depths |
2 |
2 |
Hexagon drive (male) |
22 mm | |
Maximum load |
7 t | 7.5 US t |
Maximum torque |
150 Nm | 110.5 ft lb |
Weight |
3.46 kg | |
Space below |
18 mm | 3/4 inch |
Space next to it |
50 mm | 2 inch |
Number of jaws |
2/3 | 2/3 |
Advantage
-
Combi-pullers can be used as a 3-jaw and 2-jaw puller.
-
Universal application thanks to adjustable clamping depths up to a certain size.
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with swivelling jaws
