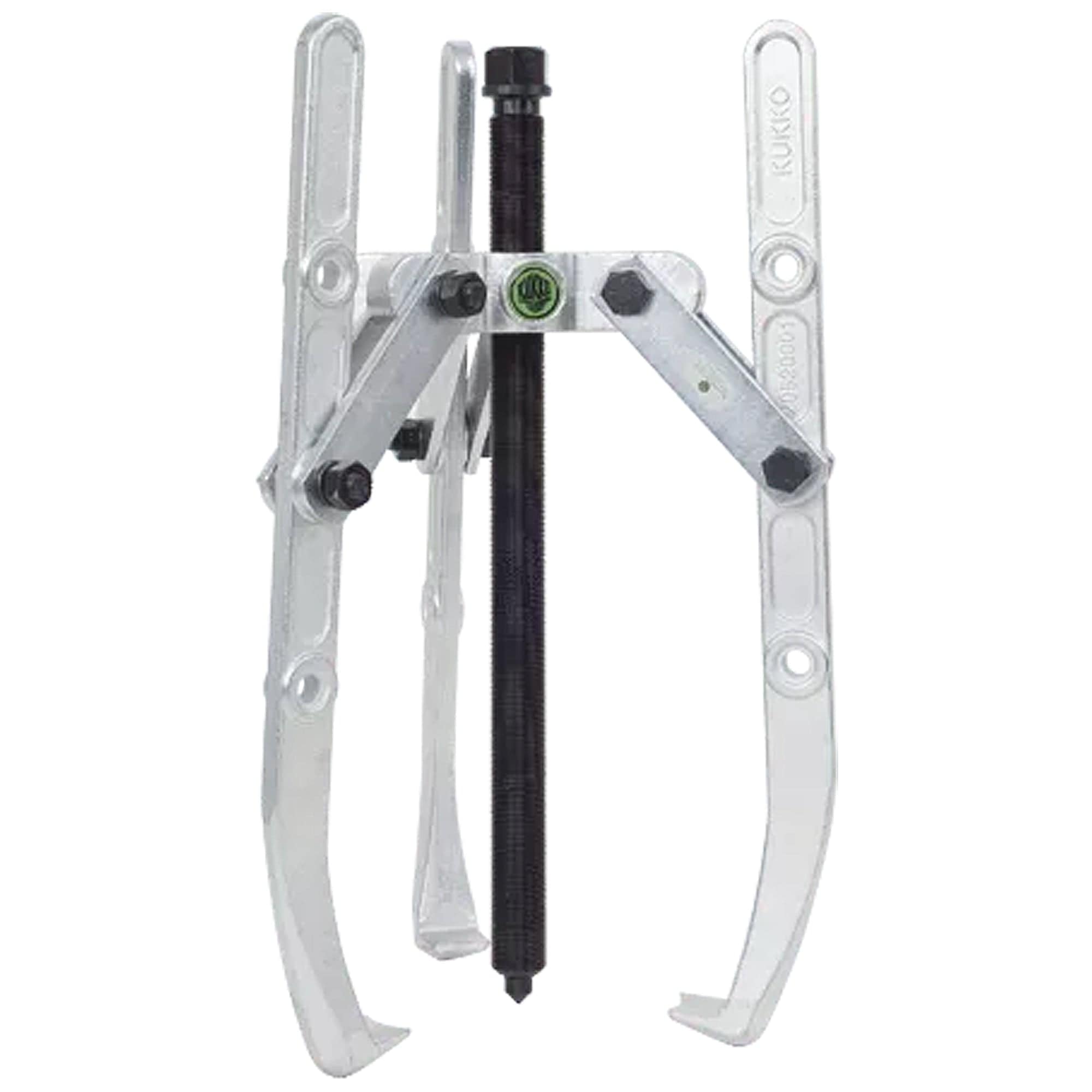

Kukko 207-1 3-Jaw Combination Puller With Adjustable Reach And Swiveling Jaws 1 1/2 - 15 3/4 inch (37 - 400 mm)

|
Kukko ToolsSKU: WS03-207-1
filler

Price:
Sale price$522.60

Description

  • For removing bearings, gears, discs, etc.
  • Swivelling puller jaws.
  • 2-jaw and 3-jaw combination cross beam.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:207-1
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

37 - 400 mm 1 1/2 - 15 3/4 inch

Depth

280 mm 11 1/32 inch

Jaw depth with hydraulic spindle

230 mm 9 1/16 inch

Number of possible depths

2
2

Hexagon drive (male)

27 mm

Maximum load

10 t 11 US t

Maximum torque

280 Nm 206.5 ft lb

Weight

7.405 kg

Space below

18 mm 3/4 inch

Space next to it

48 mm 1 7/8 inch

Number of jaws

2/3 2/3



Product Data Sheet



Advantage

  • Combi-pullers can be used as a 3-jaw and 2-jaw puller.

  • Universal application thanks to adjustable clamping depths up to a certain size.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with swivelling jaws
