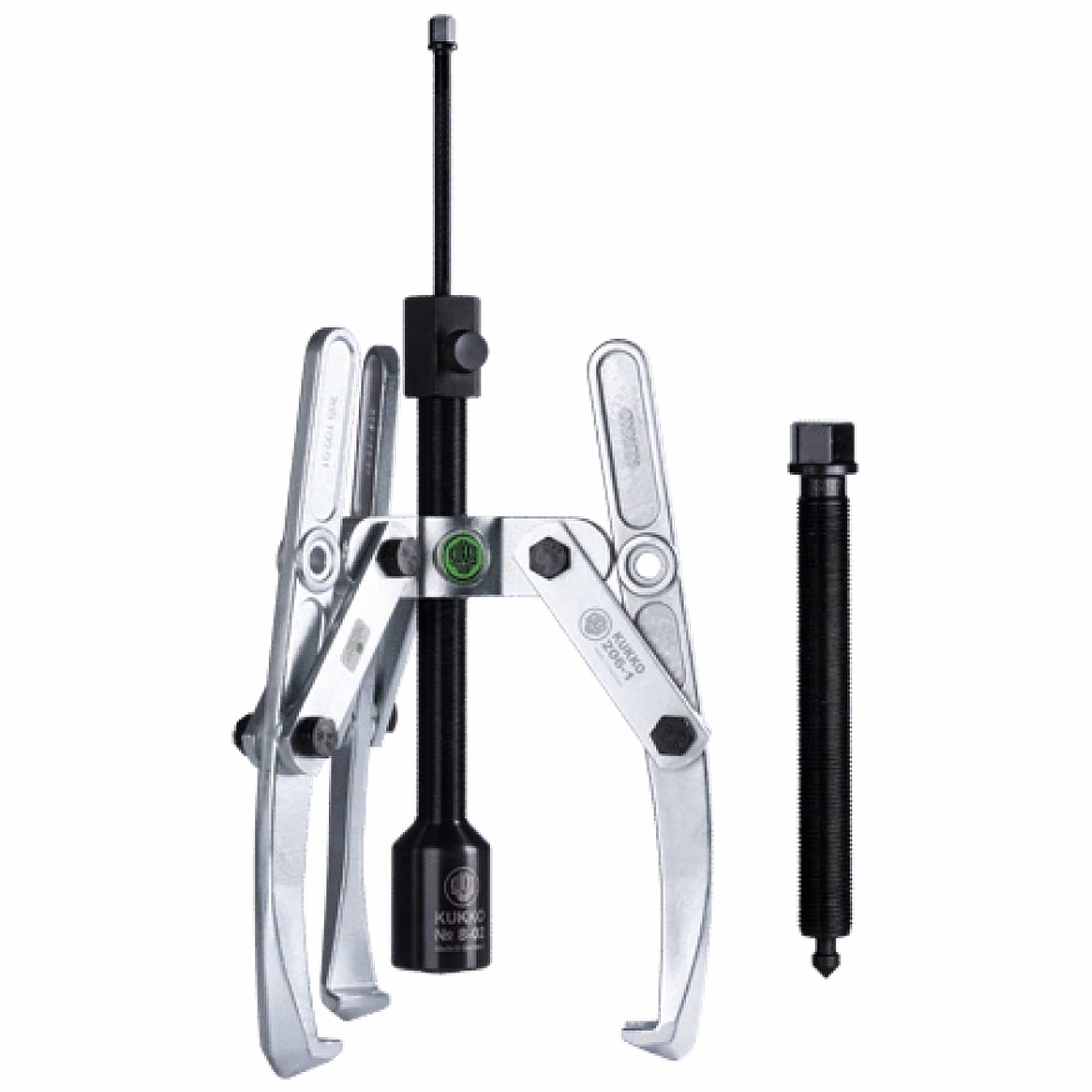

Kukko 206-2-B Universal 3-Jaw Puller With Adjustable Reach, Long Hydraulic Spindle And Swiveling Jaws 1 1/2 - 15 3/4 inch (37 - 450 mm)

|
Kukko ToolsSKU: WS03-206-2-B
filler

Price:
Sale price$1,051.80

Description

Description:

  • For pulling particularly tight bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • Hydraulic and mechanical pressure screw.
  • Grease hydraulics.
  • Milled thread treated with special coating.
  • MPN #206-2-B
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 37 - 450 mm 1 1/2 - 15 3/4 inch
Depth 400 mm 15 3/4 inch
Jaw depth with hydraulic spindle 350 mm 13 3/4 inch
Number of possible depths 3 3
Maximum load 10 t 11 US t
Maximum torque 300 Nm
Weight 9.42 kg
Space below 20 mm 3/4 inch
Space next to it 46 mm 1 7/8 inch
Number of jaws 3 3



Product Data Sheet



Advantage

  • Easy and even pulling for particularly tight parts.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Universal application thanks to adjustable depths.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with swivelling jaws
