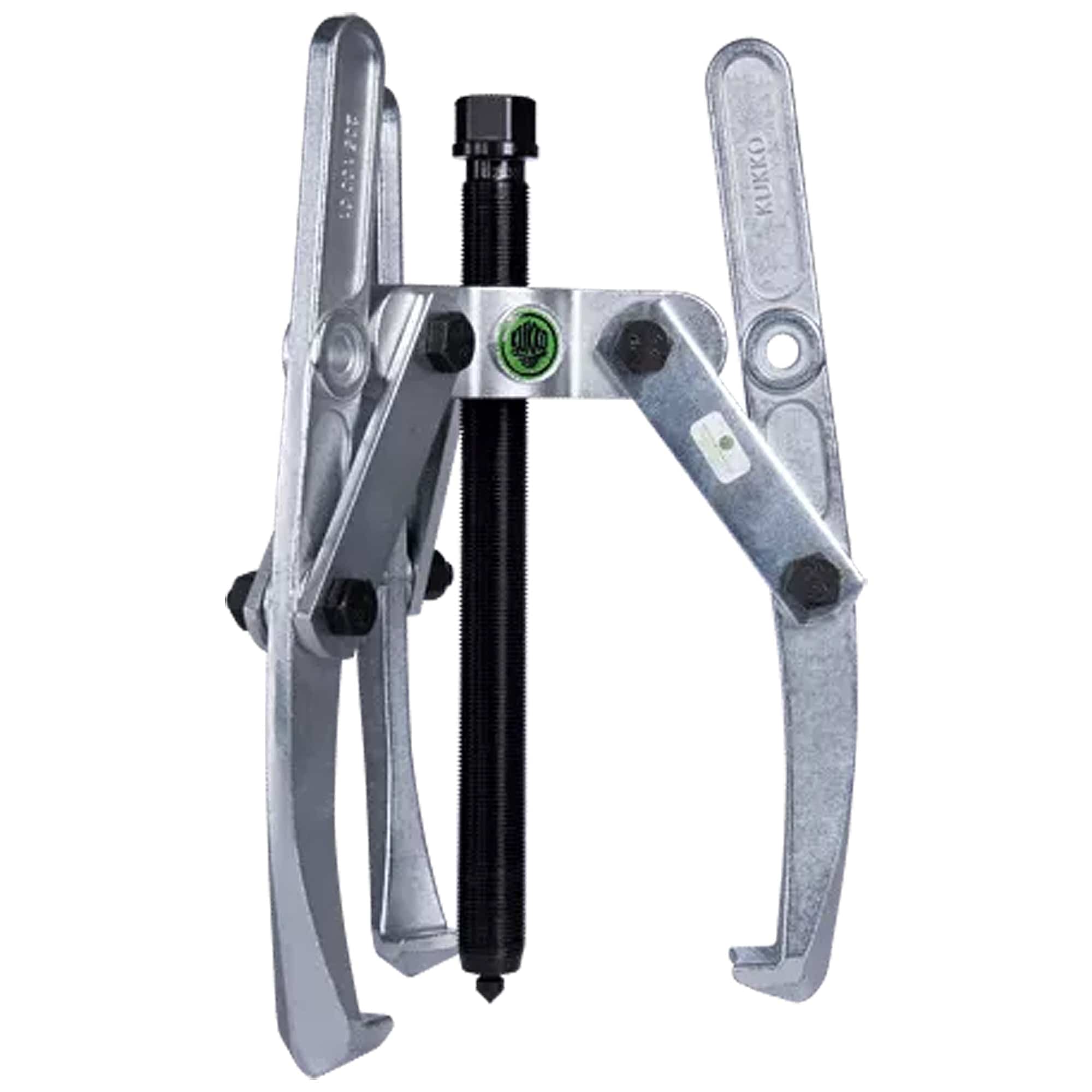

Kukko 206-1 Universal 3-Jaw Puller With Adjustable Reach And Adjustable Swiveling Jaws 1 1/2 - 11 7/8 inch (37 - 300 mm)

|
Kukko ToolsSKU: WS03-206-1
filler

Price:
Sale price$443

Description

Description:

  • For removing bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller series 205.
  • MPN #206-1
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 37 - 300 mm 1 1/2 - 11 7/8 inch
Depth 280 mm 11 1/32 inch
Jaw depth with hydraulic spindle 230 mm 9 1/16 inch
Number of possible depths 2 2
Hexagon drive (male) 27 mm
Maximum load 10 t 11 US t
Maximum torque 280 Nm 206.5 ft lb
Weight 7.025 kg
Space below 18 mm 3/4 inch
Space next to it 48 mm 1 7/8 inch
Number of jaws 3 3



Product Data Sheet



Advantage

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Universal application thanks to adjustable depths.

  • Spindle head band prevents the wrench from slipping off.

  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with swivelling jaws
