Description
Description:

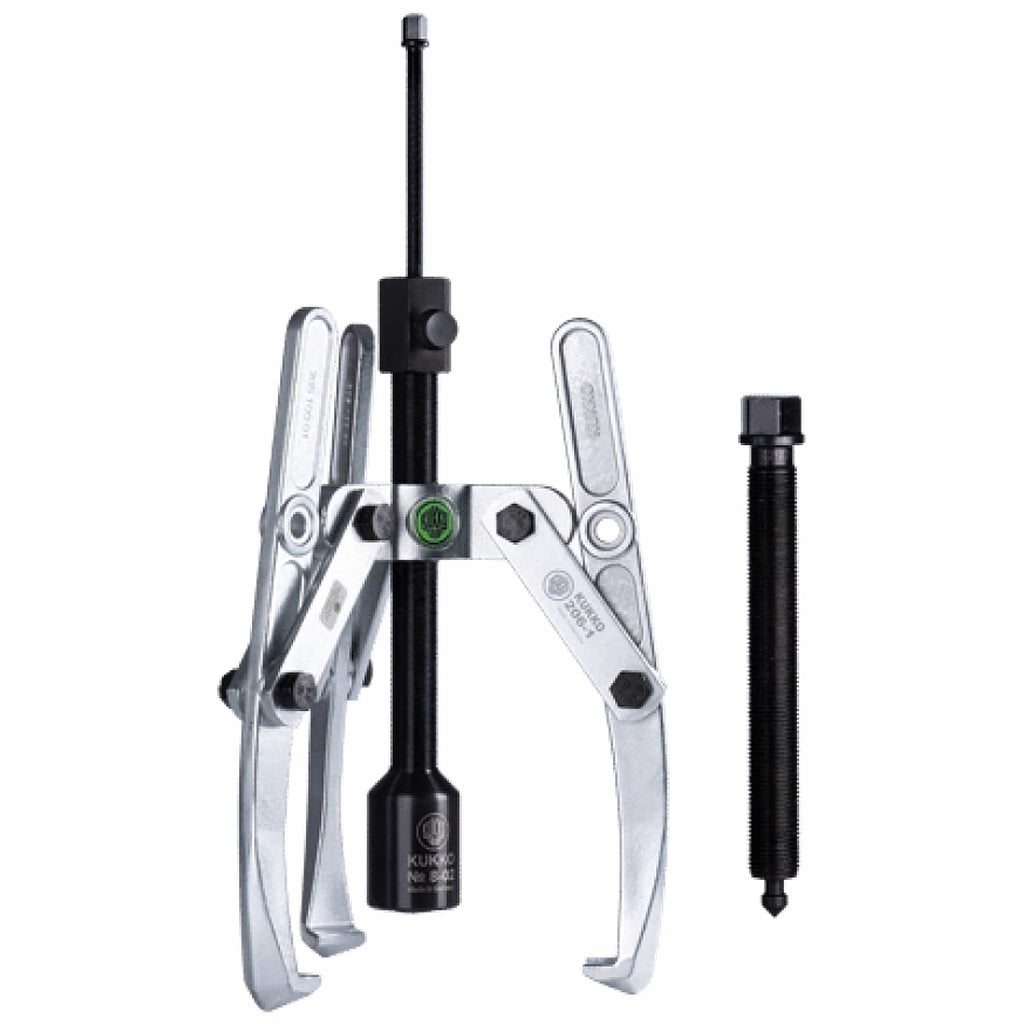

- For pulling particularly tight bearings, gears, discs, etc.
- Swivelling standard puller jaws.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- Hydraulic and mechanical pressure screw.
- Grease hydraulics.
- Milled thread treated with special coating.
- MPN #: 206-02-B
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 26 - 250 mm | 1 1/32 - 9 7/8 inch |
Depth | 220 mm | 8 5/8 inch |
Jaw depth with hydraulic spindle | 170 mm | 6 3/4 inch |
Number of possible depths | 2 | 2 |
Maximum load | 7 t | 7.5 US t |
Maximum torque | 150 Nm | |
Weight | 5.24 kg | |
Space below | 18 mm | 3/4 inch |
Space next to it | 50 mm | 2 inch |
Number of jaws | 3 | 3 |
Advantage
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Universal application thanks to adjustable depths.
-
Spindle head band prevents the wrench from slipping off.
-
Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
-
Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with swivelling jaws
