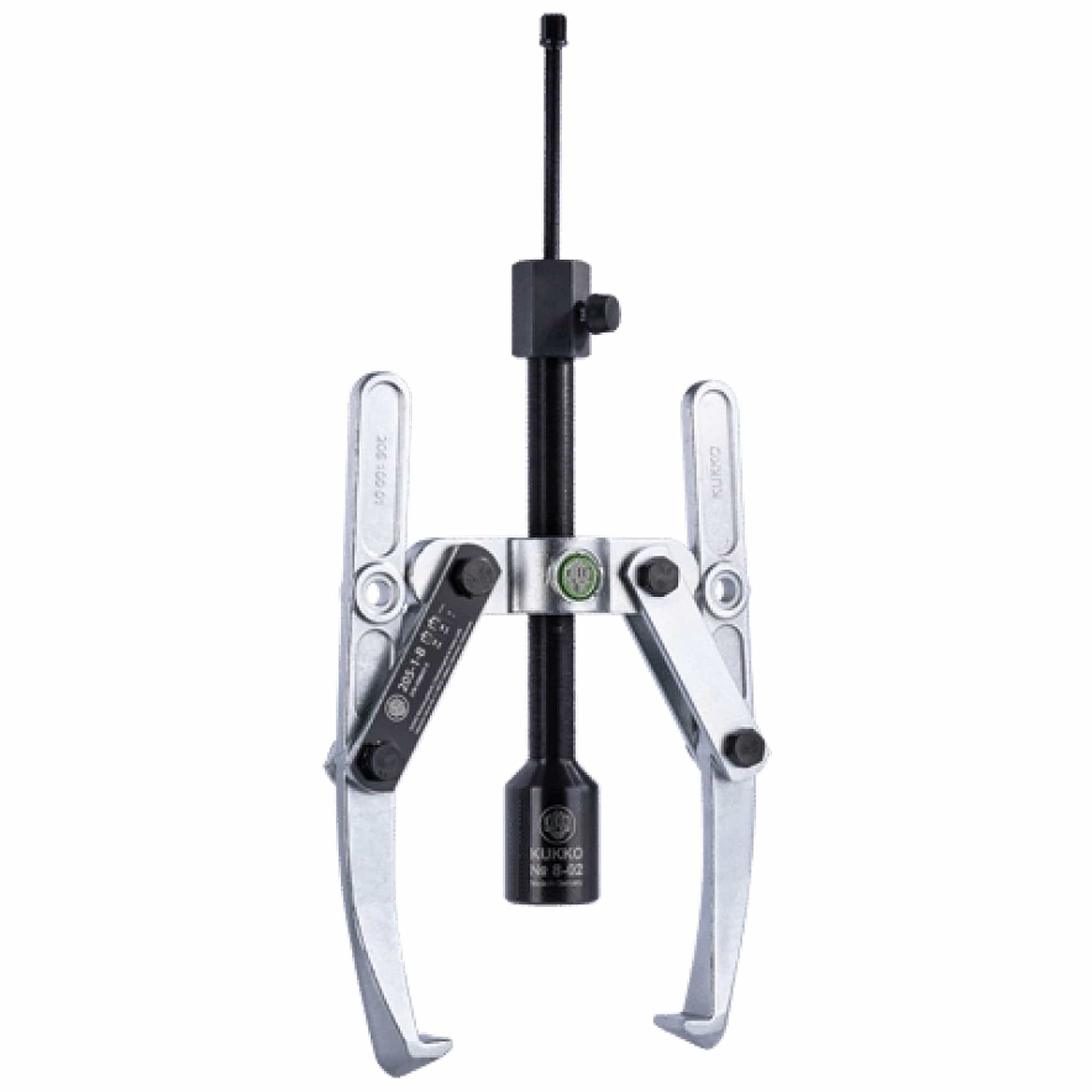

Kukko 205-3-B Universal 2-Jaw Puller With Adjustable Reach, Long Hydraulic Spindle And Swiveling Jaws 1 1/2 - 19 3/4 inch (37 - 500 mm)

|
Kukko ToolsSKU: WS03-205-3-B
filler

Price:
Sale price$1,190.20

Description

Description:

  • For pulling particularly tight bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • Hydraulic and mechanical pressure screw.
  • Milled thread treated with special coating.
  • Grease hydraulics.
  • Two-arm design for space-saving operation.
  • Parallel pulling hooks in every position, even with full load.
  • If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller series 206-B for optimal force distribution.
  • MPN #205-3-B
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 37 - 500 mm 1 1/2 - 19 3/4 inch
Depth 540 mm 21 inch
Jaw depth with hydraulic spindle 490 mm 19 1/4 inch
Number of possible depths 3 3
Maximum load 12 t 13 US t
Maximum torque 320 Nm
Weight 10.46 kg
Space below 19 mm 3/4 inch
Space next to it 58 mm 2 1/4 inch
Number of jaws 2
2



Product Data Sheet



Advantage

  • Easy and even pulling for particularly tight parts.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Universal application thanks to adjustable depths.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with swivelling jaws
