Description
Description:

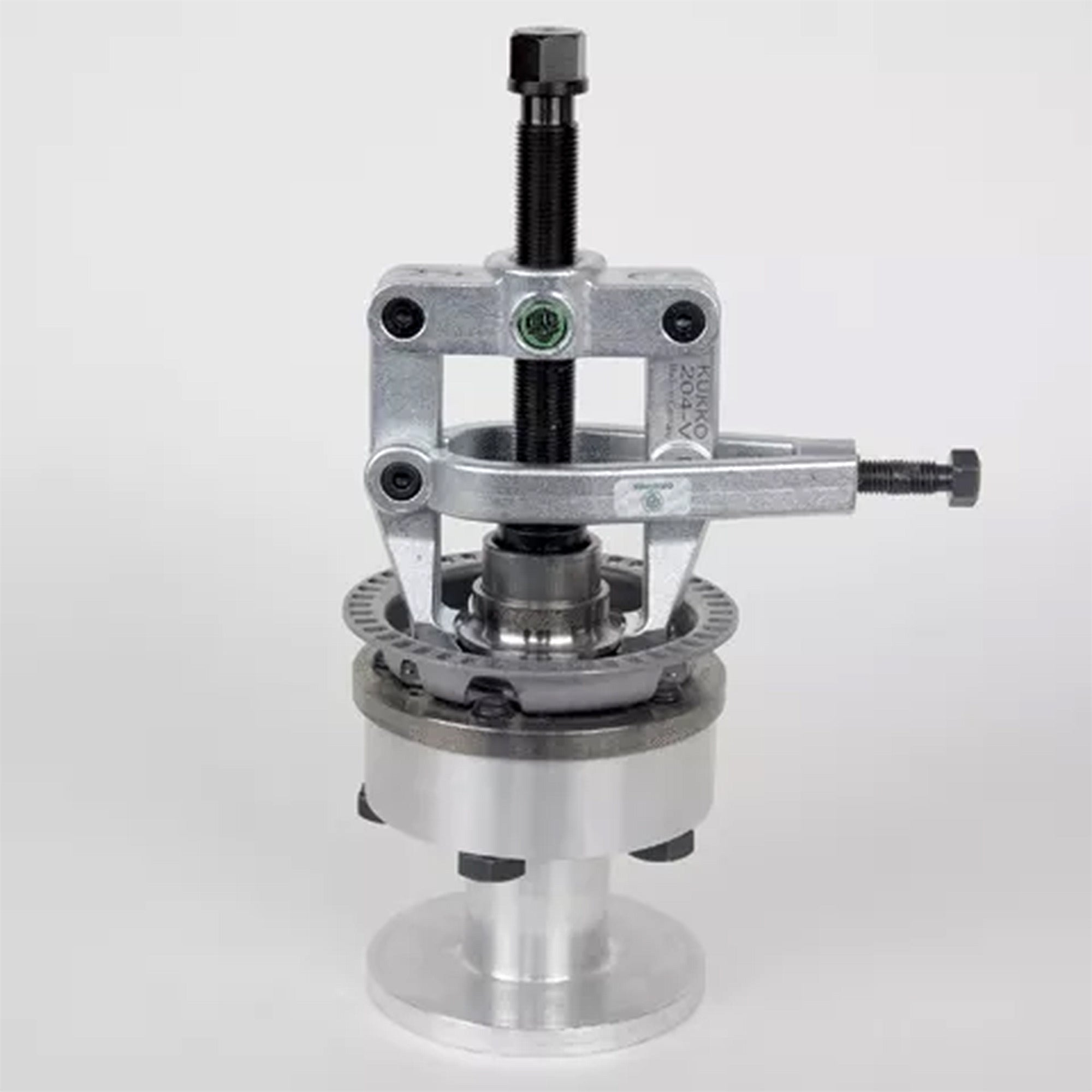

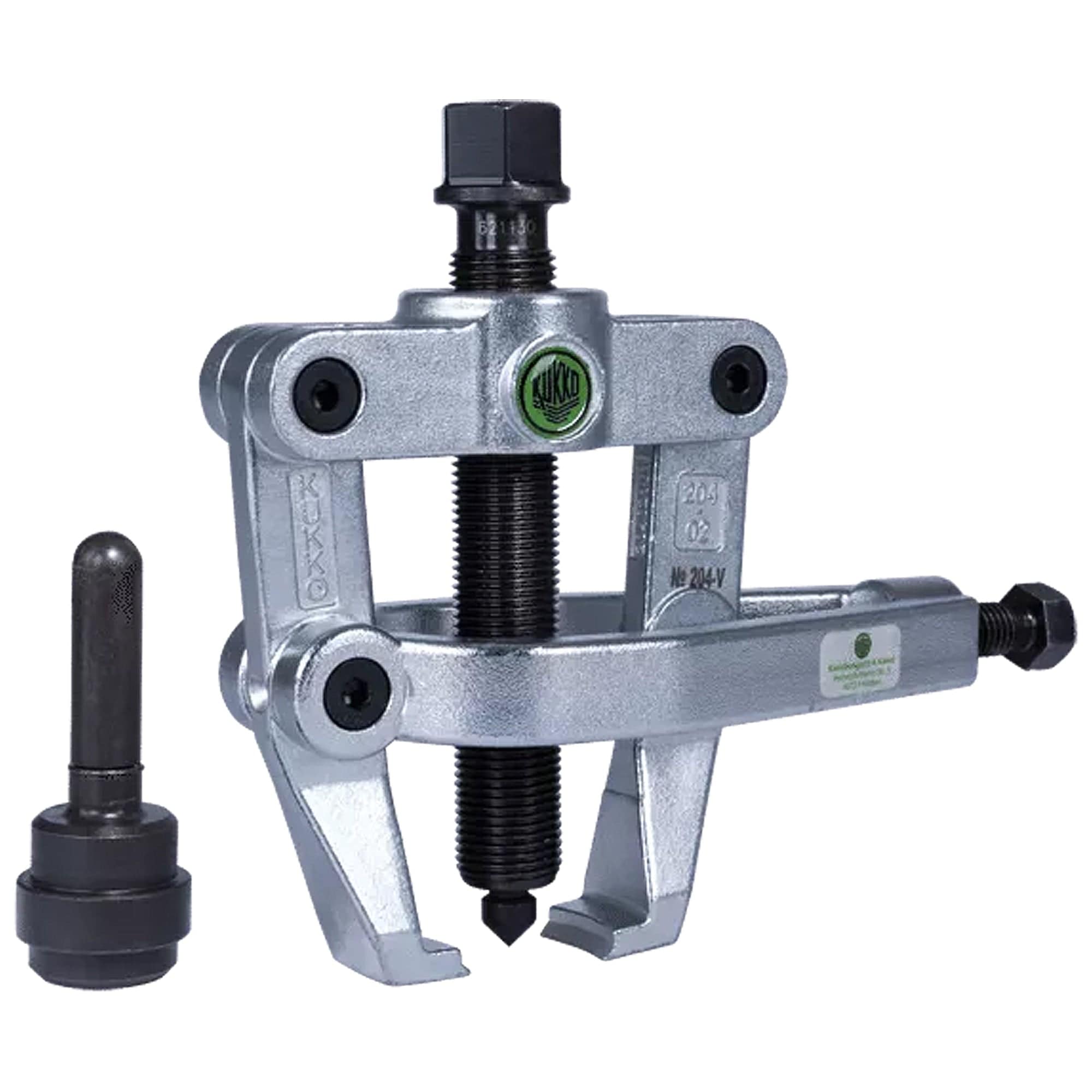

- For safe and simple disassembly of the bearing inner race
- Adapter fits on all common axial holes, e.g. on VAG and other models.
- Puller hooks are specially hardened and smoothed.
- With integrated clamp.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- MPN #: 204-V
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
| Technical attribute | Metric | Imperial |
| Spread | 40 - 90 mm | 1 5/8 - 3 5/8 inch |
| Depth | 100 mm | 3 7/8 inch |
| Hexagon drive (male) | 22 mm | |

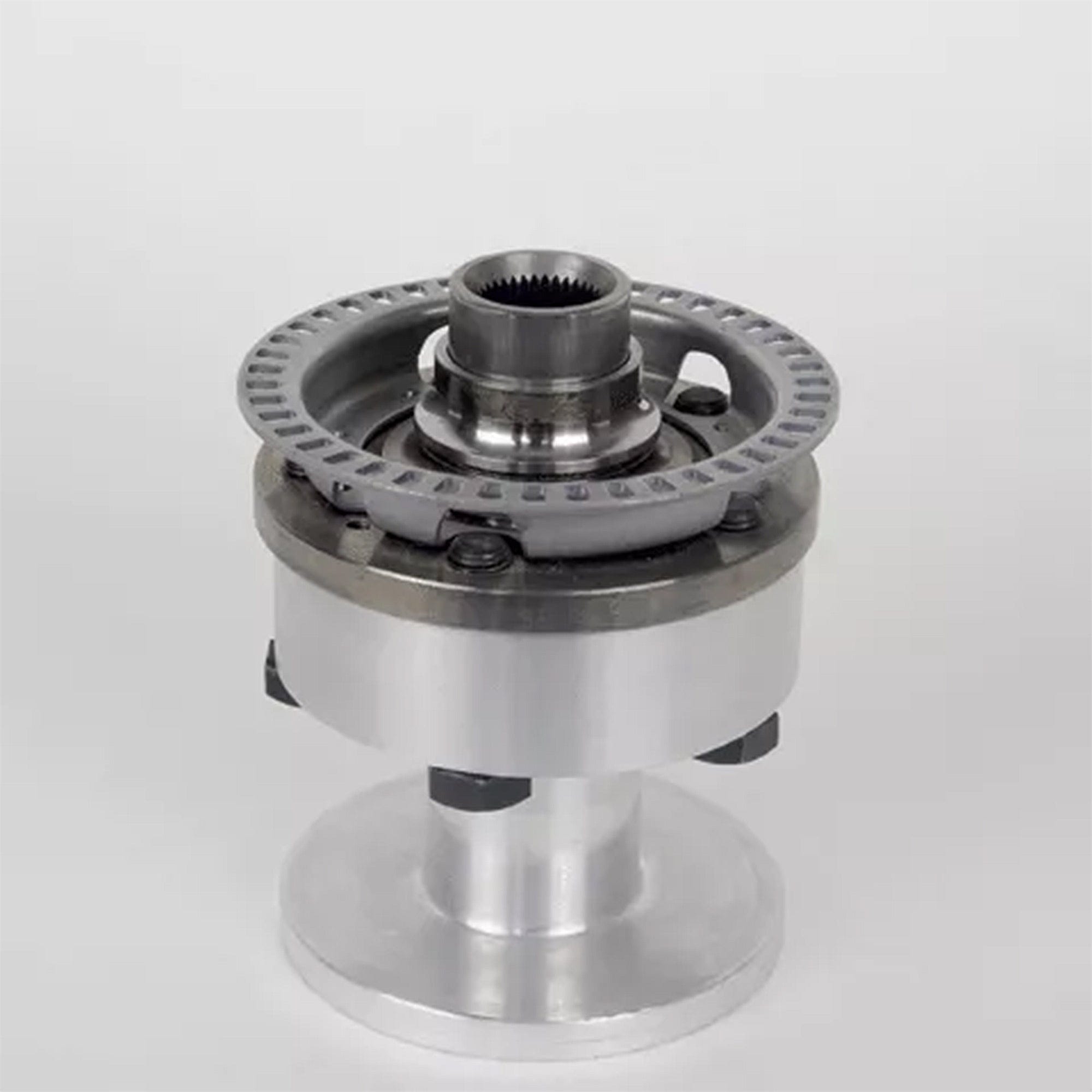

| Application | an der vorderen Radnabe V10.1 (Volkswagen) / At the front wheel hub V10.1 | an der vorderen Radnabe V10.1 (Volkswagen) / At the front wheel hub V10.1 |
| Weight | 2.075 kg | |
| Space below | 0 mm | 0 inch |
| Space next to it | 20 mm | 3/4 inch |
| Number of jaws | 2 |
2 |
Advantage
-

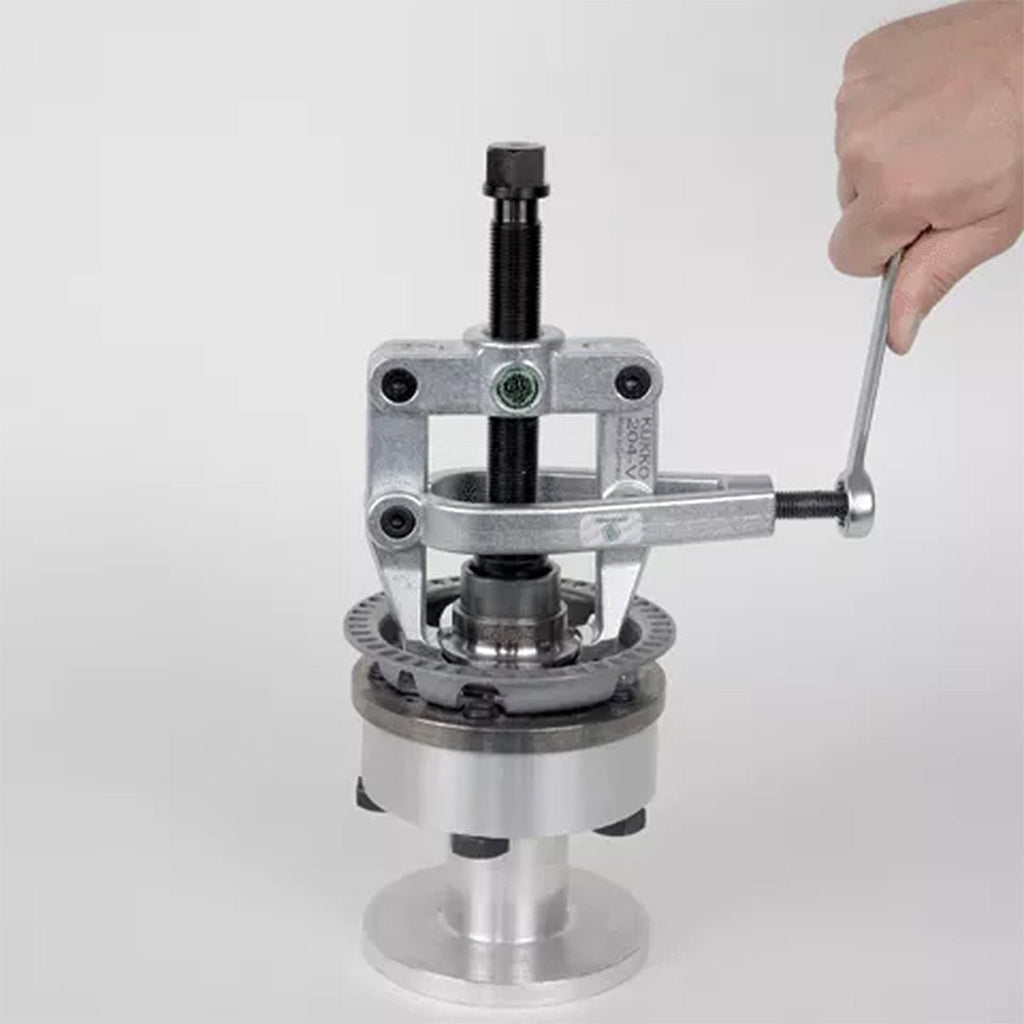

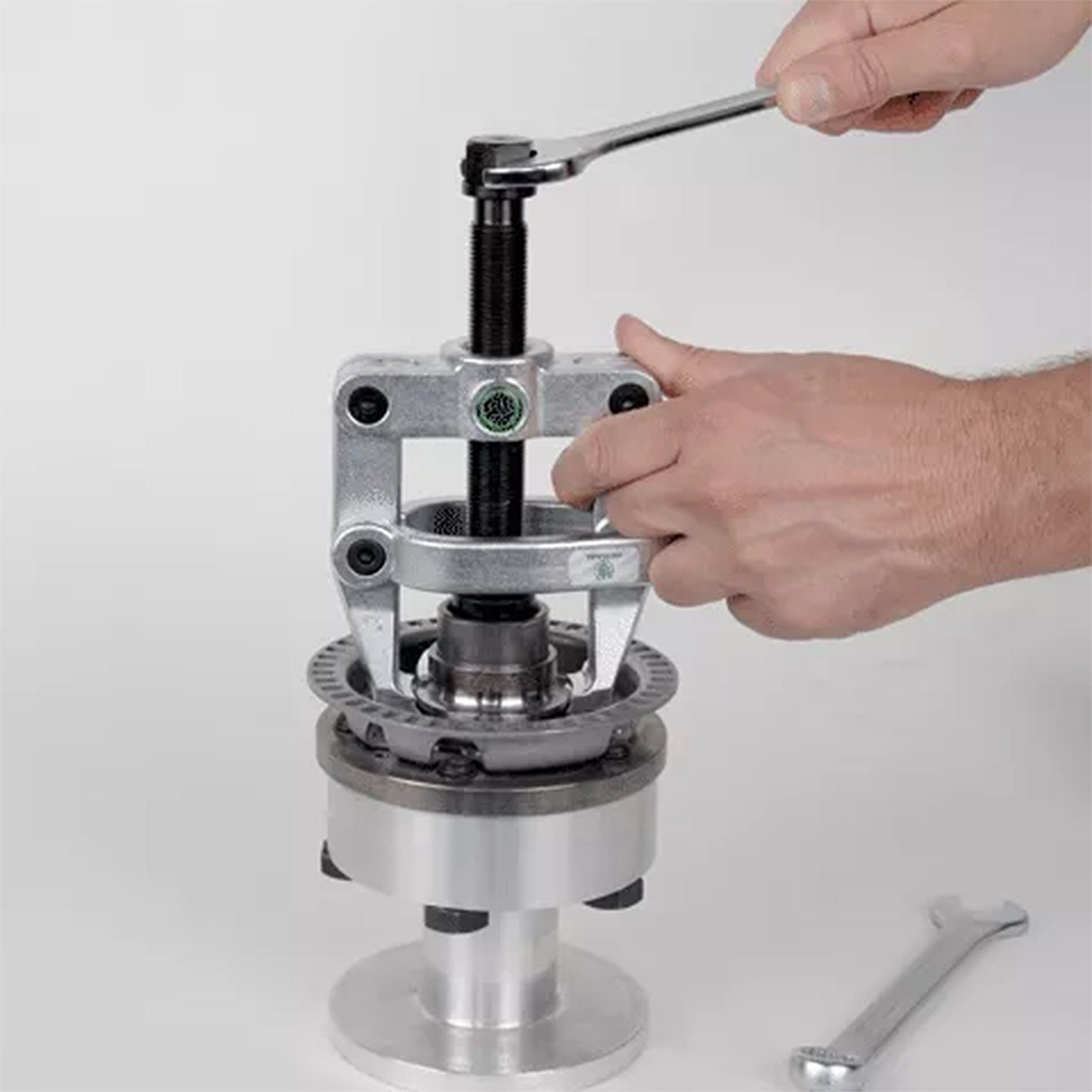

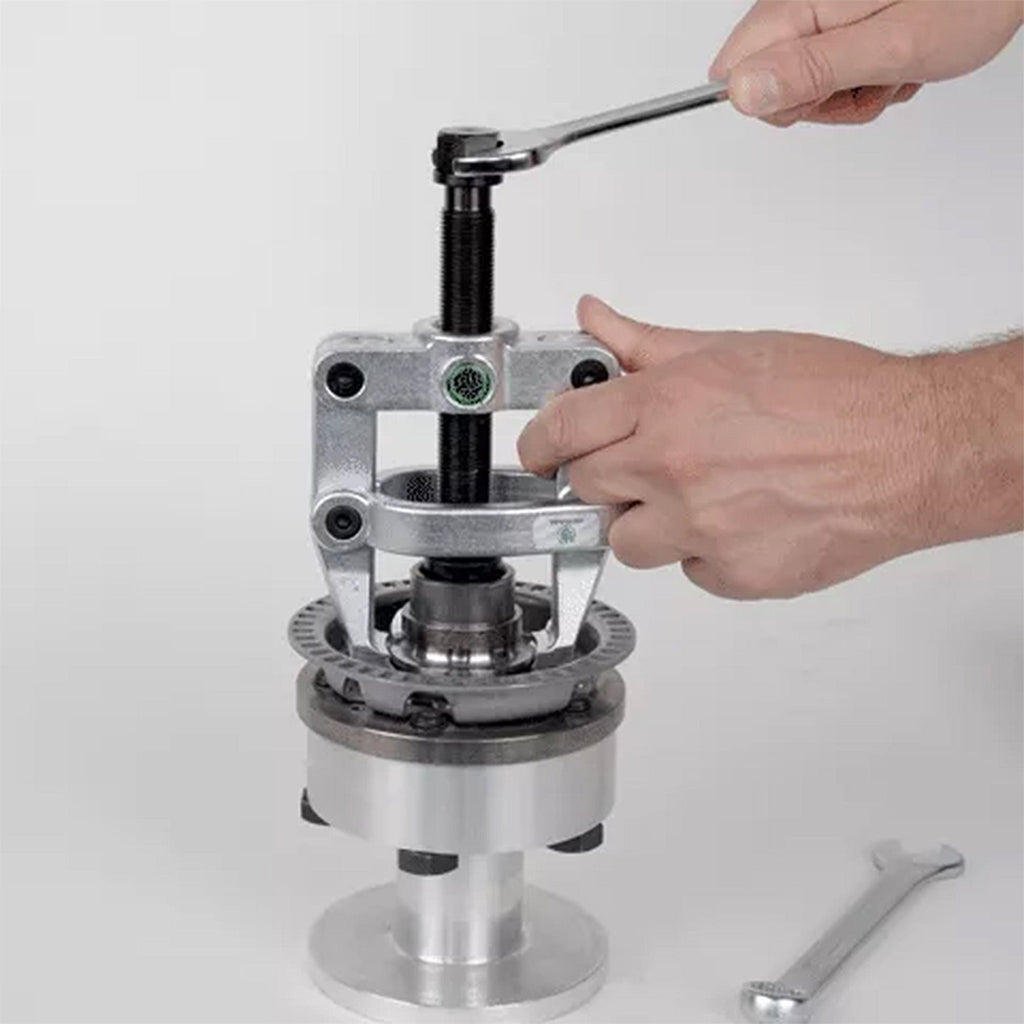

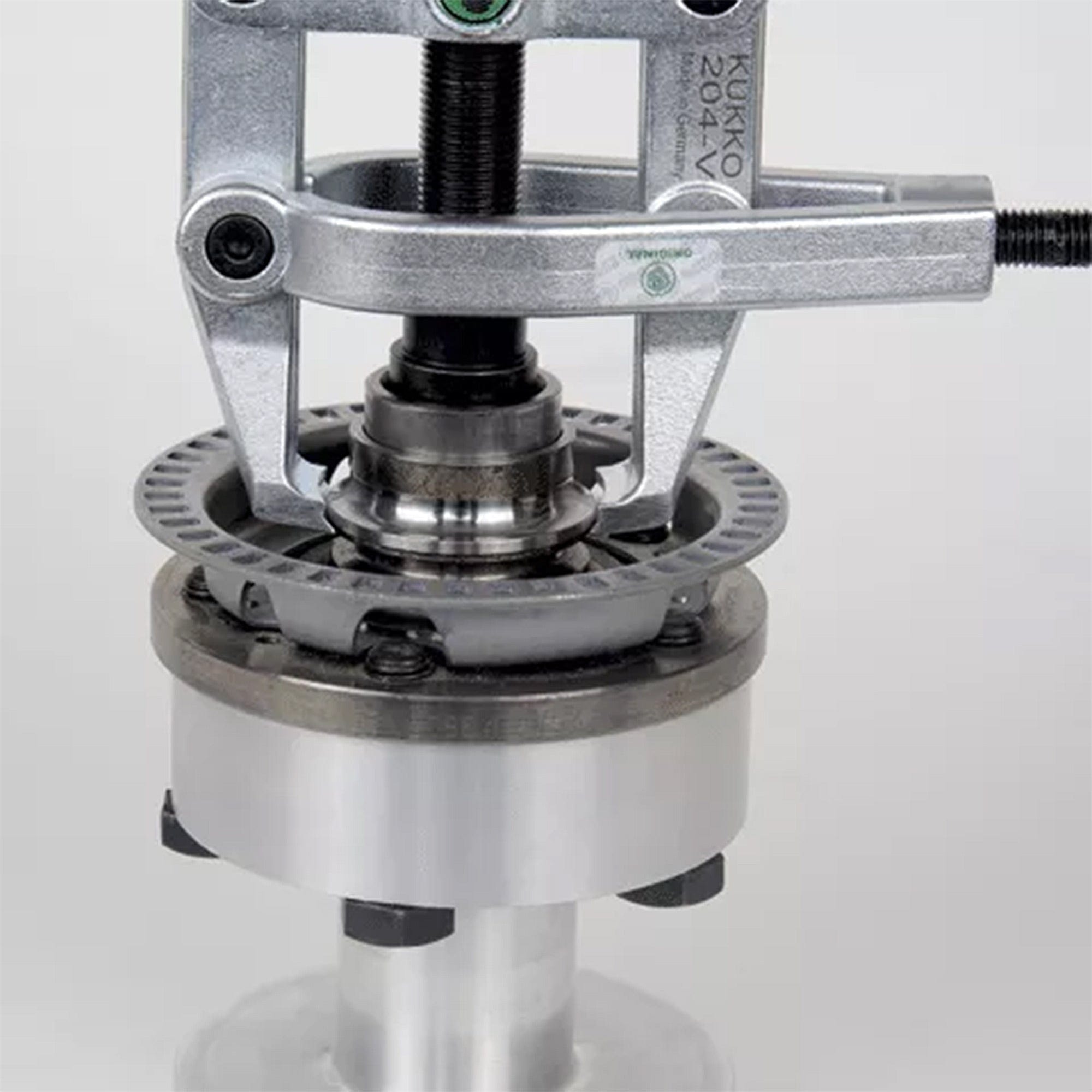

When the tension clamp is tightened, the pulling jaws grip below the part to be removed and loosen it before the actual removal process.
-
Clamps increase the pressure of the hooks significantly.
-
Spindle head band prevents the wrench from slipping off.
-
Safe, fast and efficient disassembly.
-
No cut-off grinding, chiselling or hammering required.
-

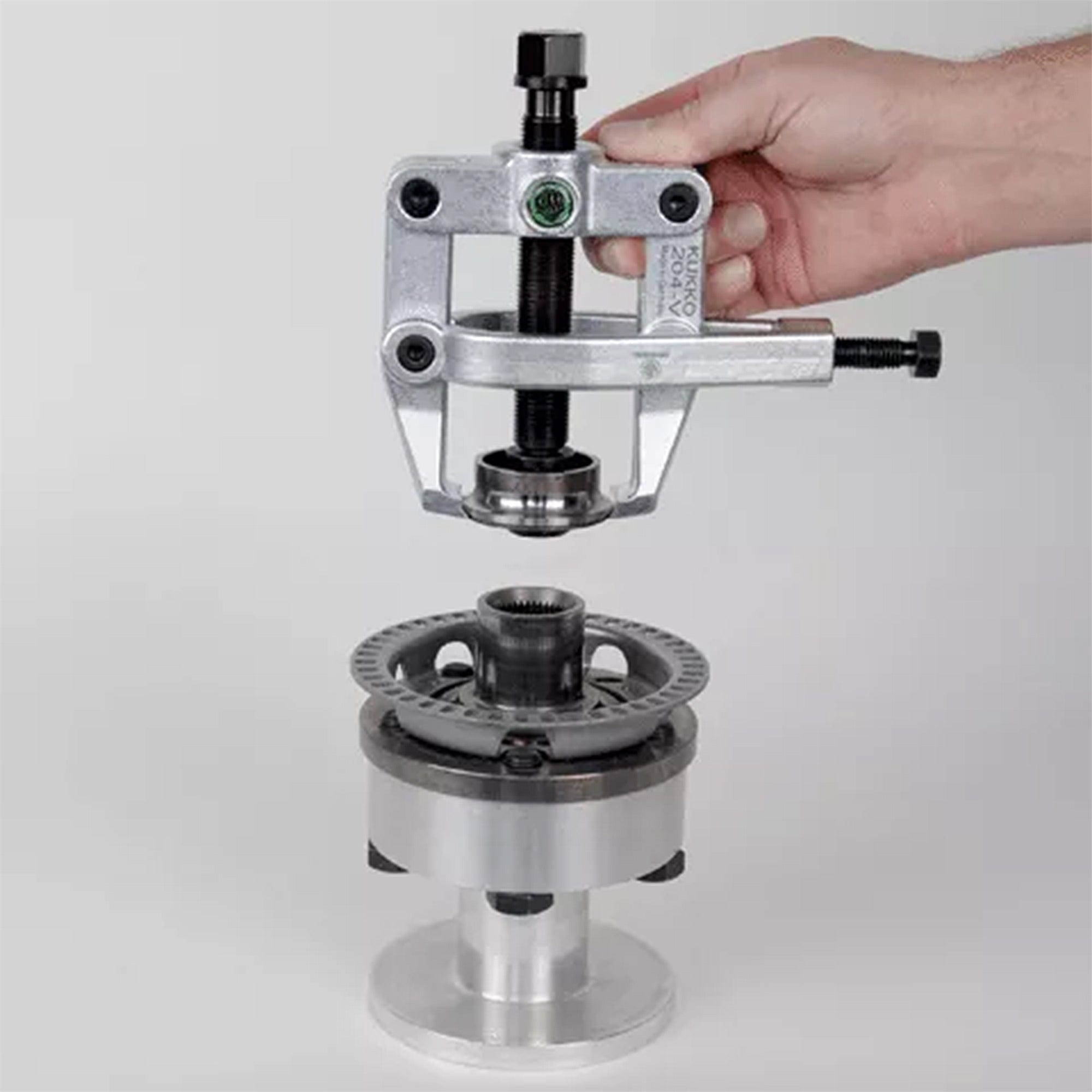

Flat inner races are disassembled without any problems.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with side clamp
