Description
Description:

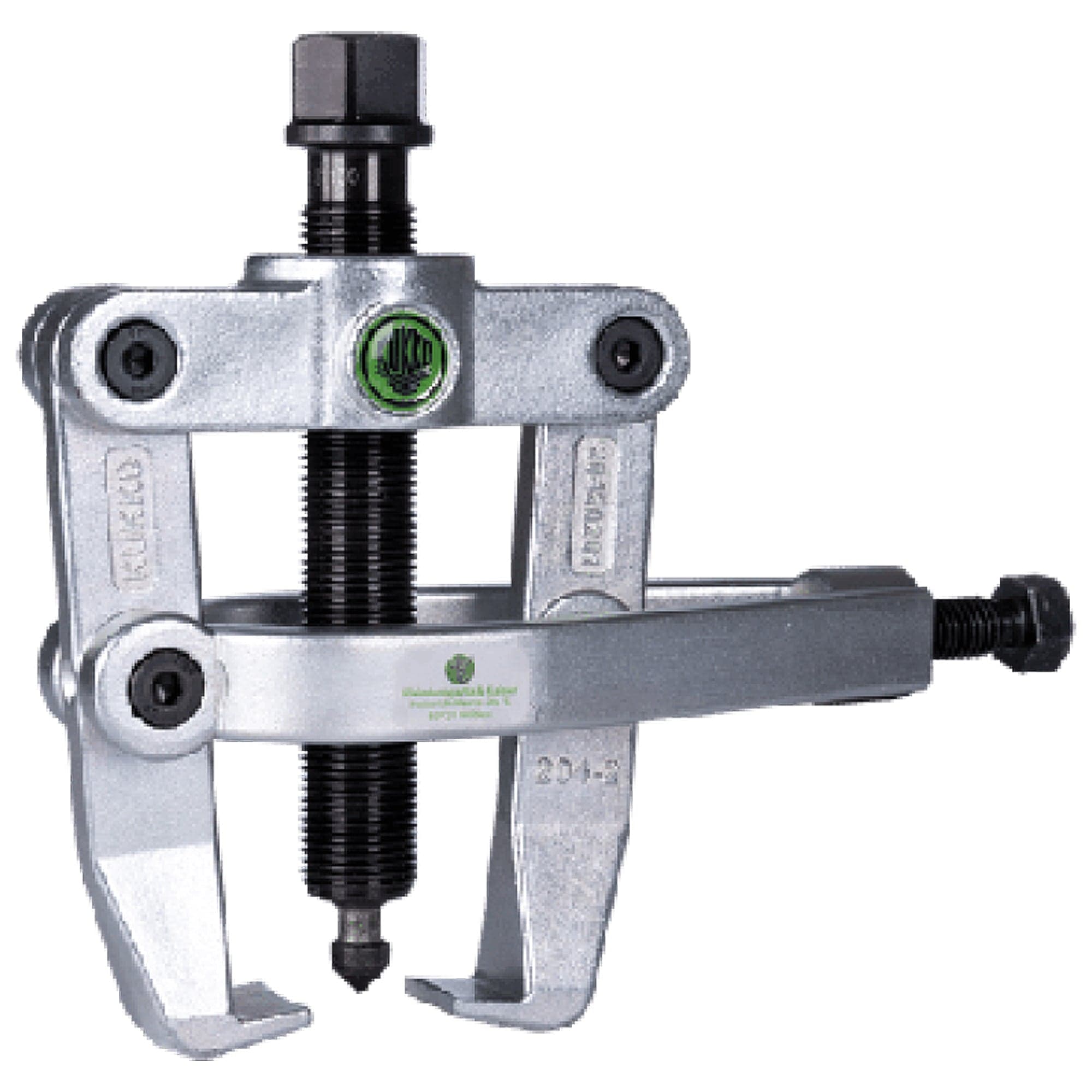

- For removing particularly tight ball bearings, bearing rings and workpieces.
- With integrated clamp.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- MPN #: 204-3
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 50 - 150 mm | 2 - 5 7/8 inch |
Depth | 140 mm | 5 1/2 inch |
Hexagon drive (male) | 24 mm | |
Maximum load | 7,5 t | 8 US t |
Maximum torque | 175 Nm | 129 ft lb |
Weight | 3.16 kg | |
Space below | 15 mm | 5/8 inch |
Space next to it | 35 mm | 1 3/8 inch |
Number of jaws | 2 | 2 |
Advantage
-
Clamps increase the pressure of the hooks significantly.
-
Spindle head band prevents the wrench from slipping off.
-
Safe, fast and efficient disassembly.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with side clamp
