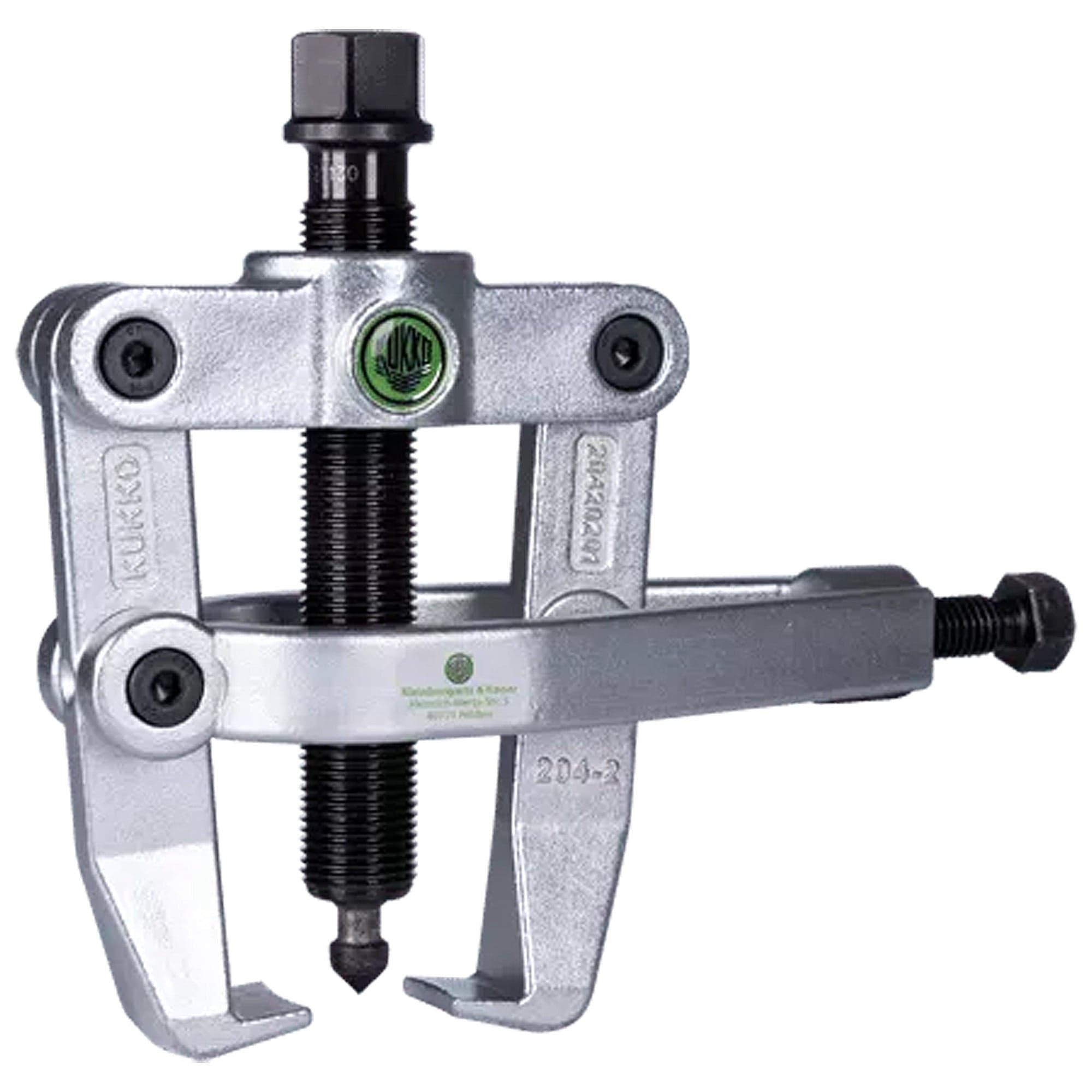

Kukko 204-2 Universal 2-Jaw Puller With Side Clamp 1 5/8 - 3 7/8 inch (40 - 100 mm)

|
Kukko ToolsSKU: WS03-204-2
filler

Price:
Sale price$245.50

Description

Description:

  • For removing particularly tight ball bearings, bearing rings and workpieces.
  • With integrated clamp.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #204-2
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 40 - 100 mm 1 5/8 - 3 7/8 inch
Depth 100 mm 3 7/8 inch
Hexagon drive (male) 22 mm
Maximum load 6 t 6.5 US t
Maximum torque 120 Nm 88.5 ft lb
Weight 2.04 kg
Space below 10 mm 3/8 inch
Space next to it 25 mm 1 inch
Number of jaws 2 2



Product Data Sheet



Advantage

  • Clamps increase the pressure of the hooks significantly.

  • Spindle head band prevents the wrench from slipping off.

  • Safe, fast and efficient disassembly.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with side clamp
