Description
Description:

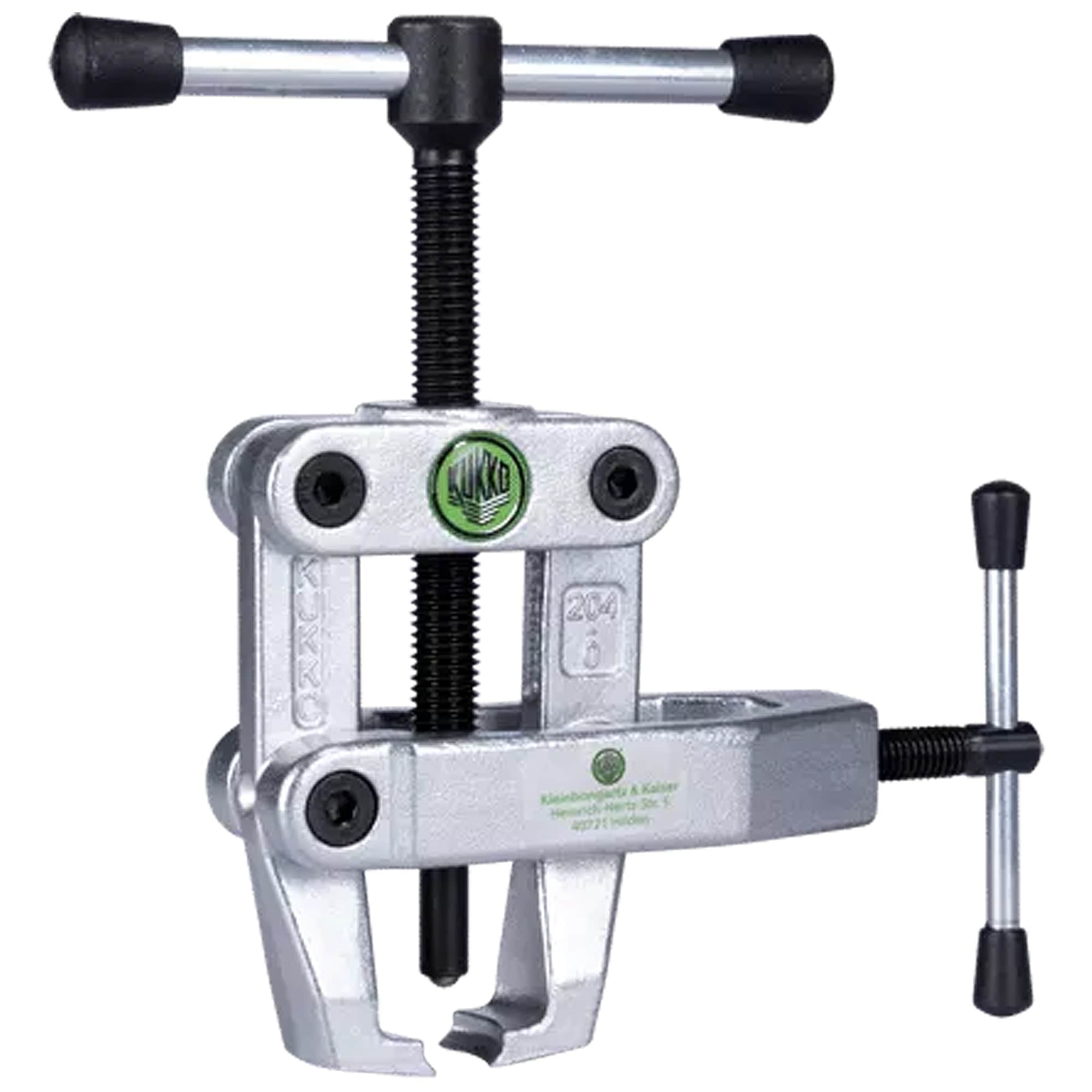

- For removing tight ball bearings, bearing rings and workpieces.
- Puller hooks are specially hardened and smoothed.
- With integrated clamp.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Technical attribute | Metric | Imperial |
Spread | 25 - 50 mm | 1 - 2 inch |
Depth | 70 mm | 2 3/4 inch |
Maximum load | 1 t | 1 US t |
Weight | 0.69 kg | |
Space below | 2,6 mm | 1/8 inch |
Space next to it | 20 mm | 3/4 inch |
Number of jaws | 2 | 2 |
Advantage:
- When the tension clamp is tightened, the pulling jaws grip below the part to be removed and loosen it before the actual removal process.
- Clamps increase the pressure of the hooks significantly and prevent the puller from slipping.
- Spindle head band prevents the wrench from slipping off.
- Safe, fast and efficient disassembly.
- No cut-off grinding, chiselling or hammering required.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
Functionality:
- Pullers with side clamp
KUKKO Quality Standards:
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
- Product video on the product can be opened.
