Description

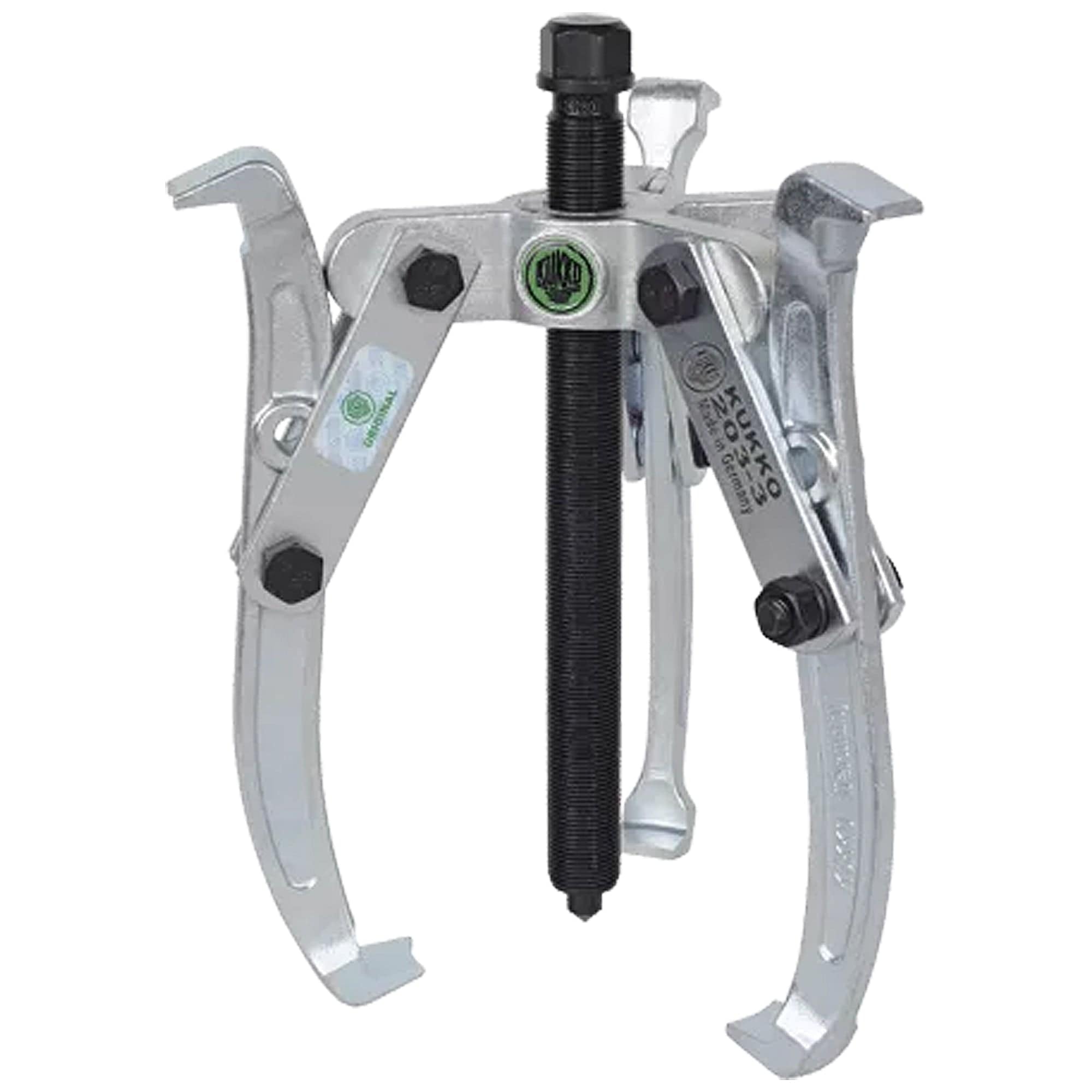

- Combi-pullers can be used as a 3-jaw and 2-jaw puller.
- Swiveling and reversible puller hooks.
- Mechanical pressure screw.
- Milled thread treated with special coating.
-
MPN #:203-3
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
37 - 350 mm | 1 1/2 - 13 3/4 inch |
Depth |
260 mm | 10 1/4 inch |
Spread used internal |
112 - 300 mm | |
Number of possible depths |
2 |
2 |
Opening of claw end |
8 mm | |
Hexagon drive (male) |
27 mm | |
Maximum load |
10 t | 11 US t |
Maximum torque |
250 Nm | 184 ft lb |
Weight |
6.86 kg | |
Space below |
12 mm | 1/2 inch |
Space next to it |
35 mm | 1 3/8 inch |
Number of jaws |
2/3 | 2/3 |
Advantage
-
The pulling hooks are reversible and can be used on both sides with various different types of hooks.
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Spindle head band prevents the wrench from slipping off.
-
Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with reversible jaws
