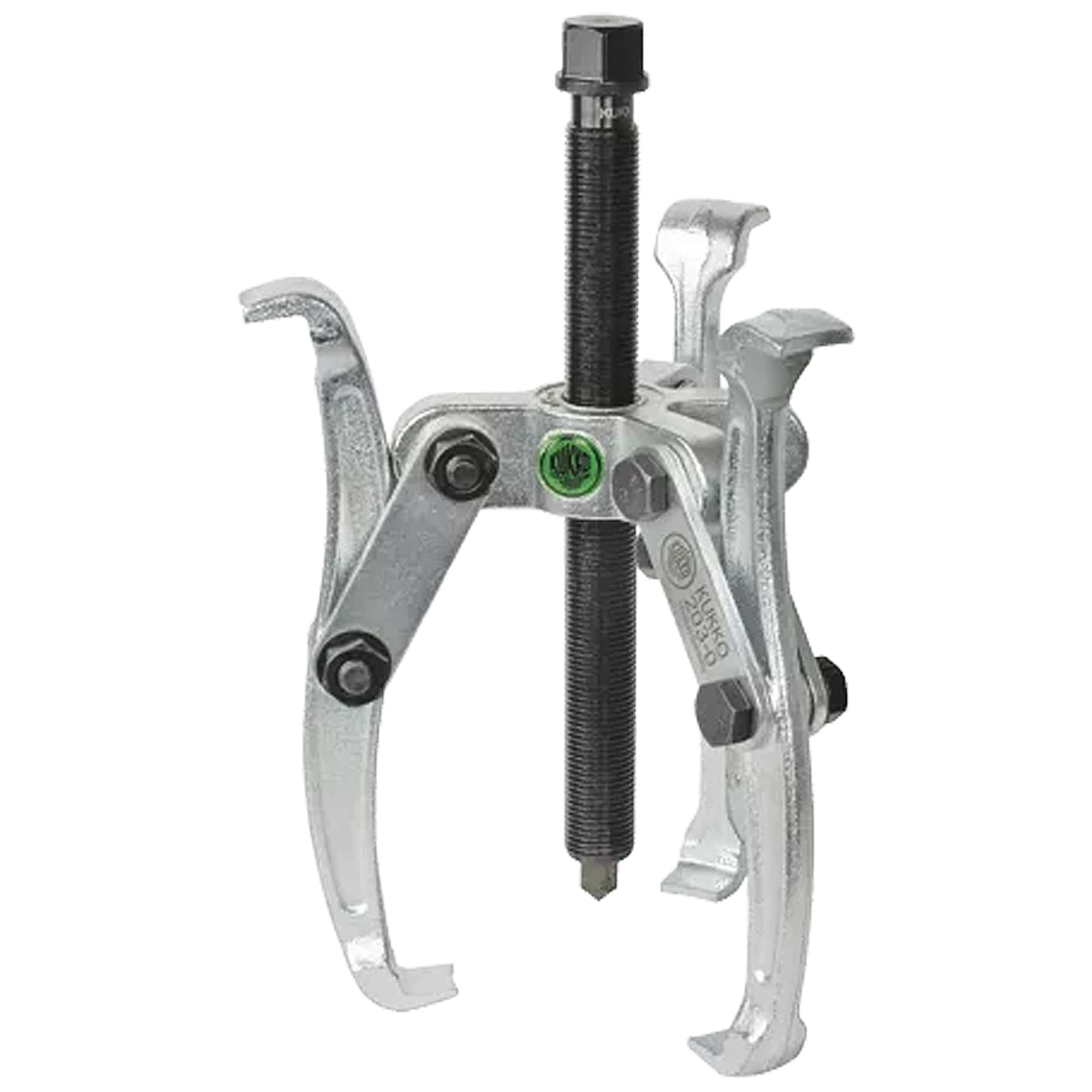

Kukko 203-0 3-Jaw Combination Puller With Reversible Double-end Jaws 5/8 - 4 3/4 inch (15 - 120 mm)

|
Kukko ToolsSKU: WS03-203-0
filler

Price:
Sale price$102

Description

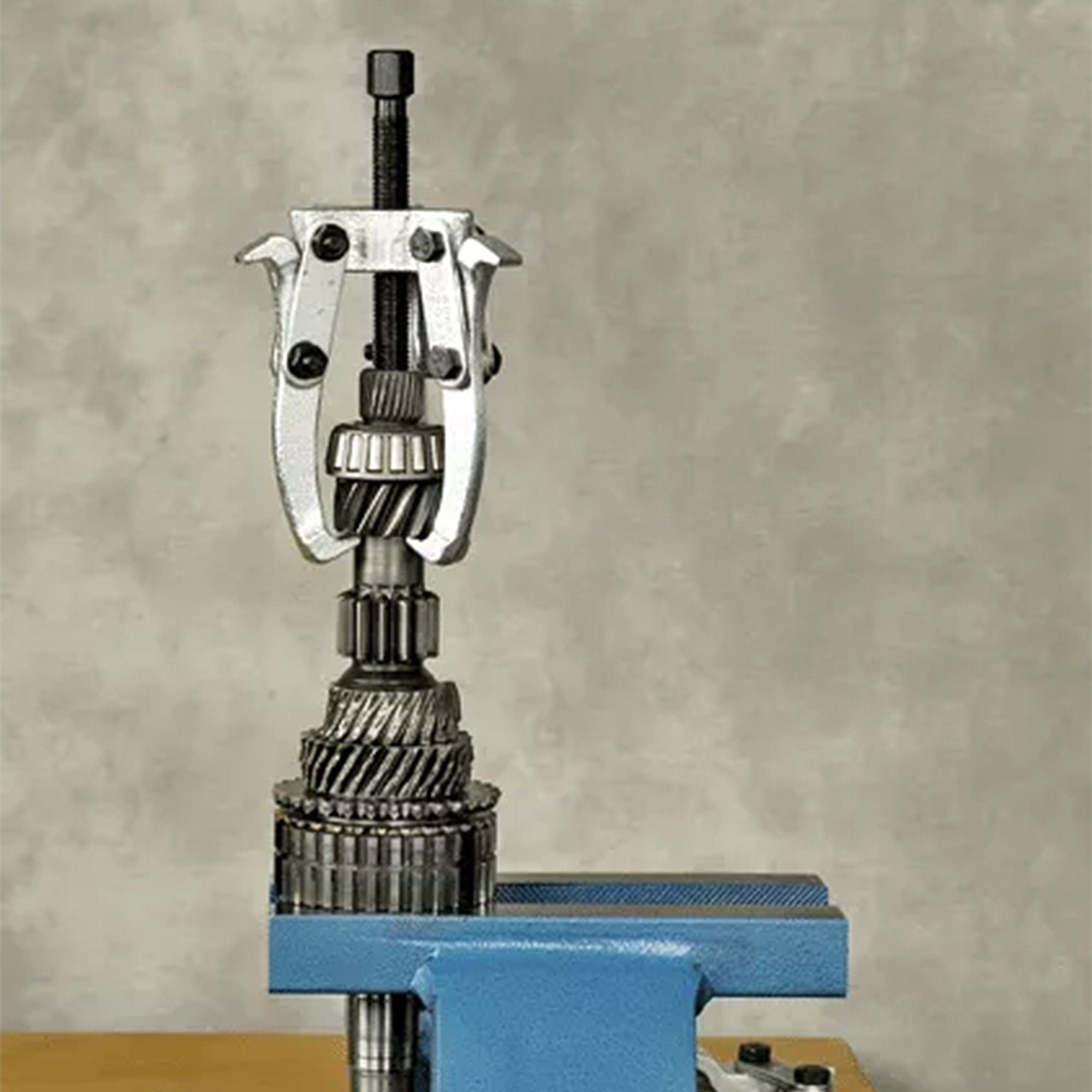

  • For removing bearings, gears, discs, etc.
  • Combi-pullers can be used as a 3-jaw and 2-jaw puller.
  • Swiveling and reversible puller hooks.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:203-0
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

15 - 120 mm 5/8 - 4 3/4 inch

Depth

75 mm 3 inch

Spread used internal

45 - 110 mm

Number of possible depths

1 1

Hexagon drive (male)

14 mm

Maximum load

1,5 t 1.5 US t

Maximum torque

25 Nm 18 ft lb

Weight

0.66 kg

Space below

6 mm 1/4 inch

Space next to it

14 mm 5/8 inch

Number of jaws

2/3 2/3



Product Data Sheet



Advantage

  • The pulling hooks are reversible and can be used on both sides with various different types of hooks.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with reversible jaws
