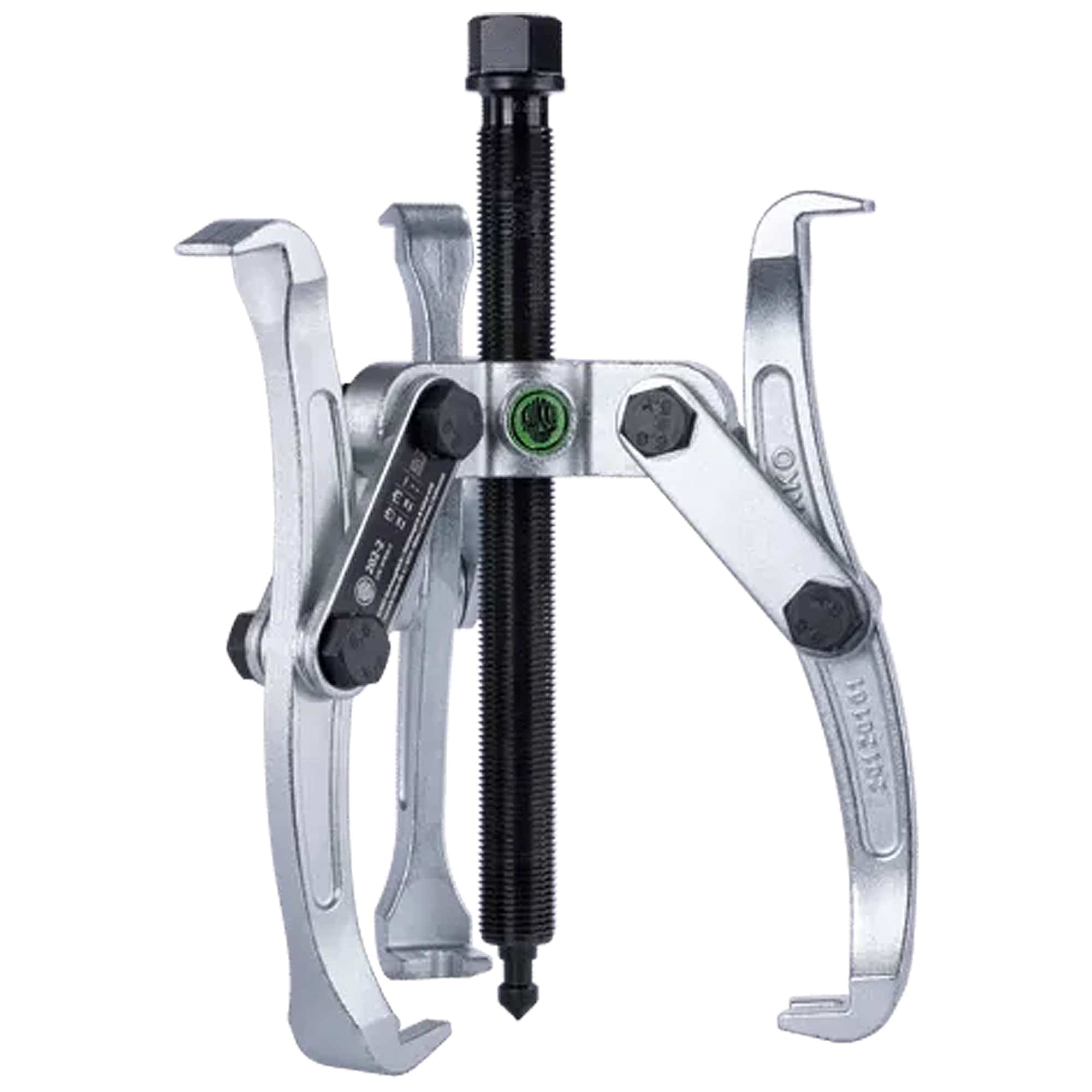

Kukko 202-2 3-Jaw Puller With Reversible Double-end Jaws 1 1/32 - 8 5/8 inch (26 - 220 mm)

|
Kukko ToolsSKU: WS03-202-2
filler

Price:
Sale price$253.80

Description

  • For removing bearings, gears, discs, etc.
  • Swiveling and reversible puller hooks.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller serie 201.
  • MPN #:202-2
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

26 - 220 mm 1 1/32 - 8 5/8 inch

Depth

130 mm 5 1/8 inch

Spread used internal

80 - 220 mm

Number of possible depths

1 1

Opening of claw end

8 mm 3/8 inch

Hexagon drive (male)

22 mm

Maximum load

7 t 7.5 US t

Maximum torque

150 Nm 110.5 ft lb

Weight

2.98 kg

Space below

7 mm 1/4 inch

Space next to it

33 mm 1 3/8 inch

Number of jaws

3 3



Product Data Sheet



Advantage

  • The pulling hooks are reversible and can be used on both sides with various different types of hooks.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with reversible jaws
