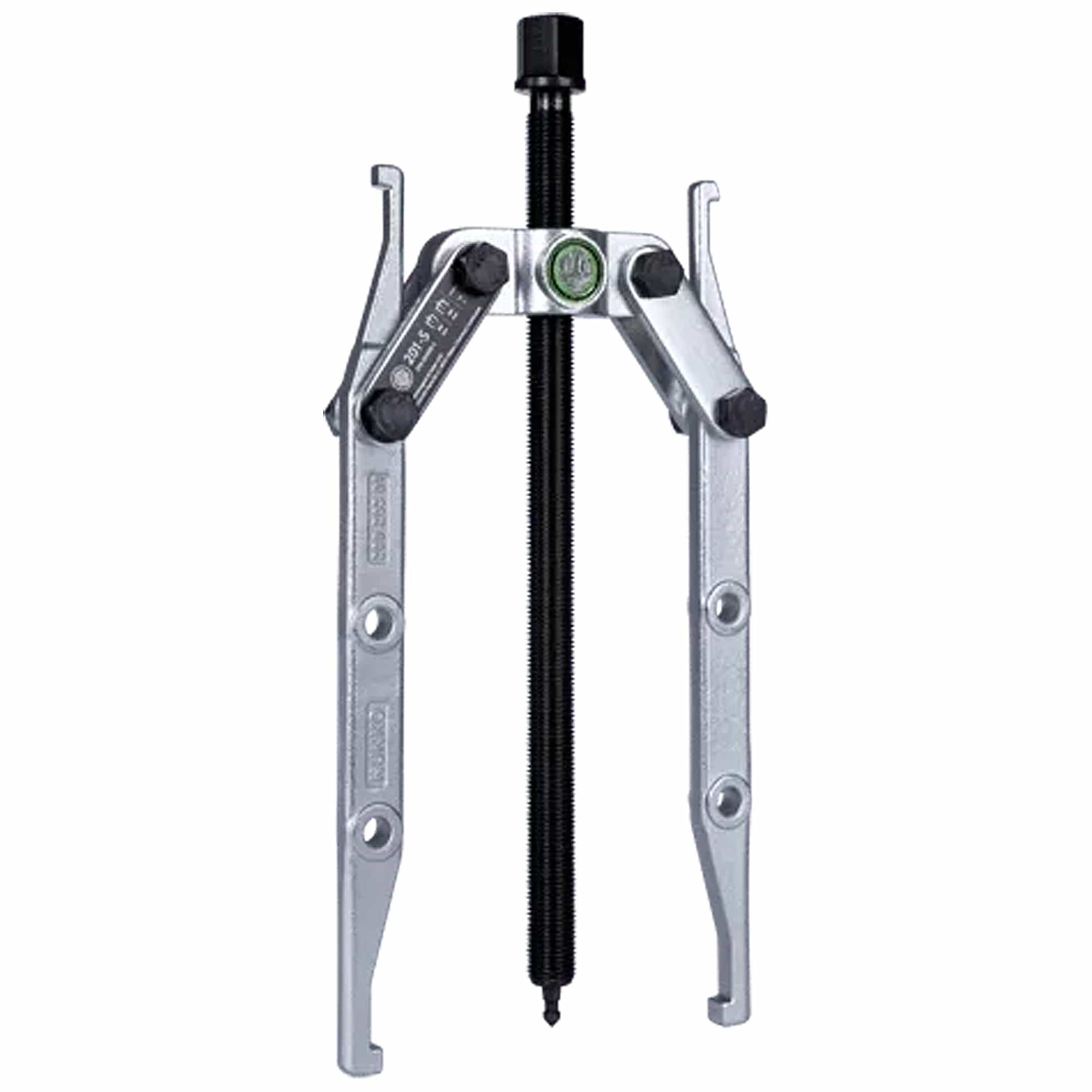

Kukko 201-S 2-Jaw Puller For Fan Wheels 3/4 - 7 7/8 inch (18 - 200 mm)

|
Kukko ToolsSKU: WS03-201-S
filler

Price:
Sale price$181

Description

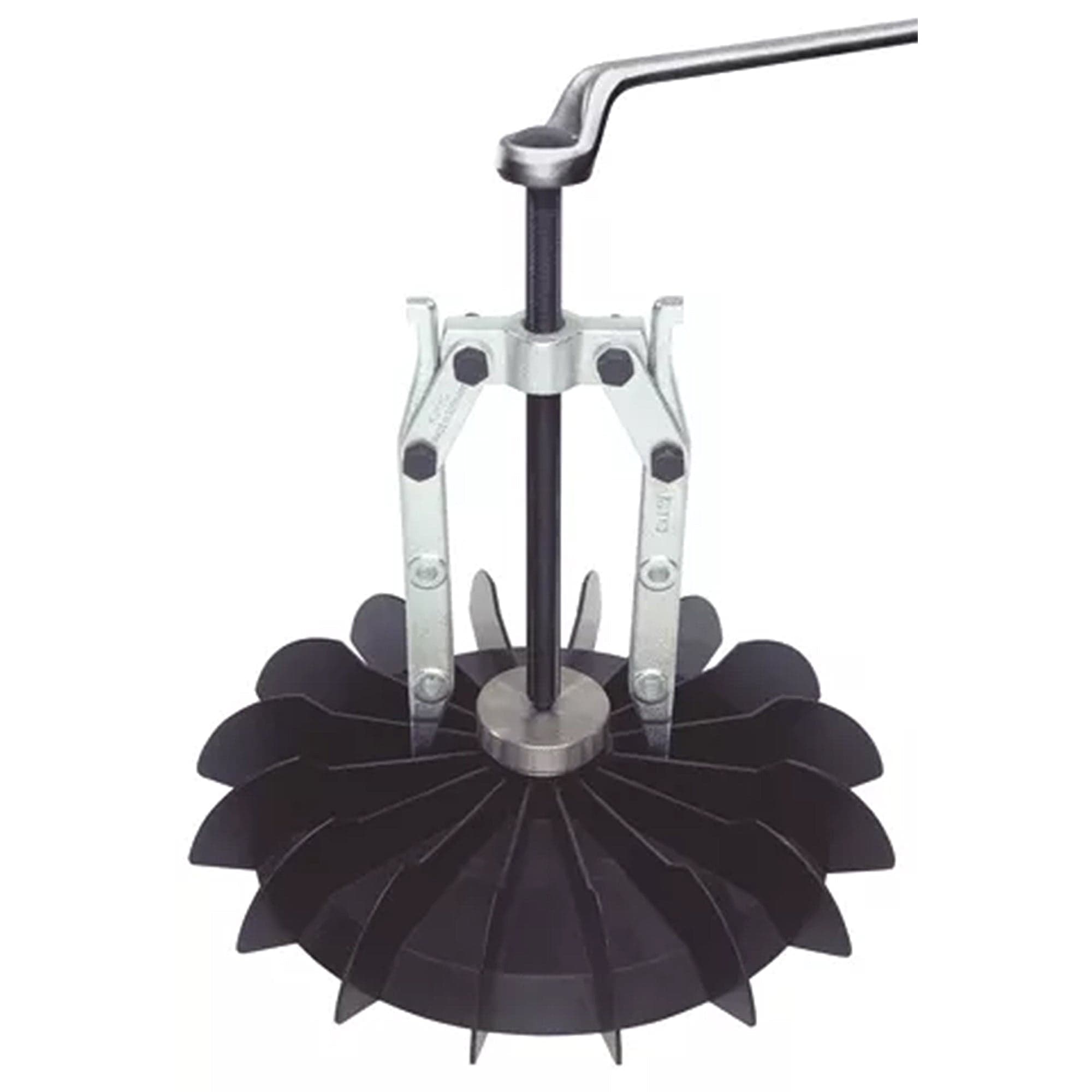

  • The extra thin hooks move through the two slits and grip the fan's collar.
  • The pulling hooks are reversible and can be used on both sides with various different types of hooks.
  • The multiple boreholes in the pulling hooks enable users to work with variable reach.
  • Two-arm design for space-saving operation.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Spindle head band prevents the wrench from slipping off.
  • Milled thread treated with special coating.
  • MPN #:201-S
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

18 - 200 mm 3/4 - 7 7/8 inch

Depth

200 mm 7 7/8 inch

Spread used internal

40 - 100 mm

Number of possible depths

3 3

Hexagon drive (male)

17 mm

Maximum load

1,5 t 1.5 US t

Maximum torque

30 Nm 22 ft lb

Weight

1.16 kg

Space below

6 mm 1/4 inch

Space next to it

8,5 mm 3/8 inch

Number of jaws

2 2



Product Data Sheet



Advantage

  • Universal application thanks to adjustable clamping depths and two types of hook.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.



Functionality

  • Pullers with reversible jaws
