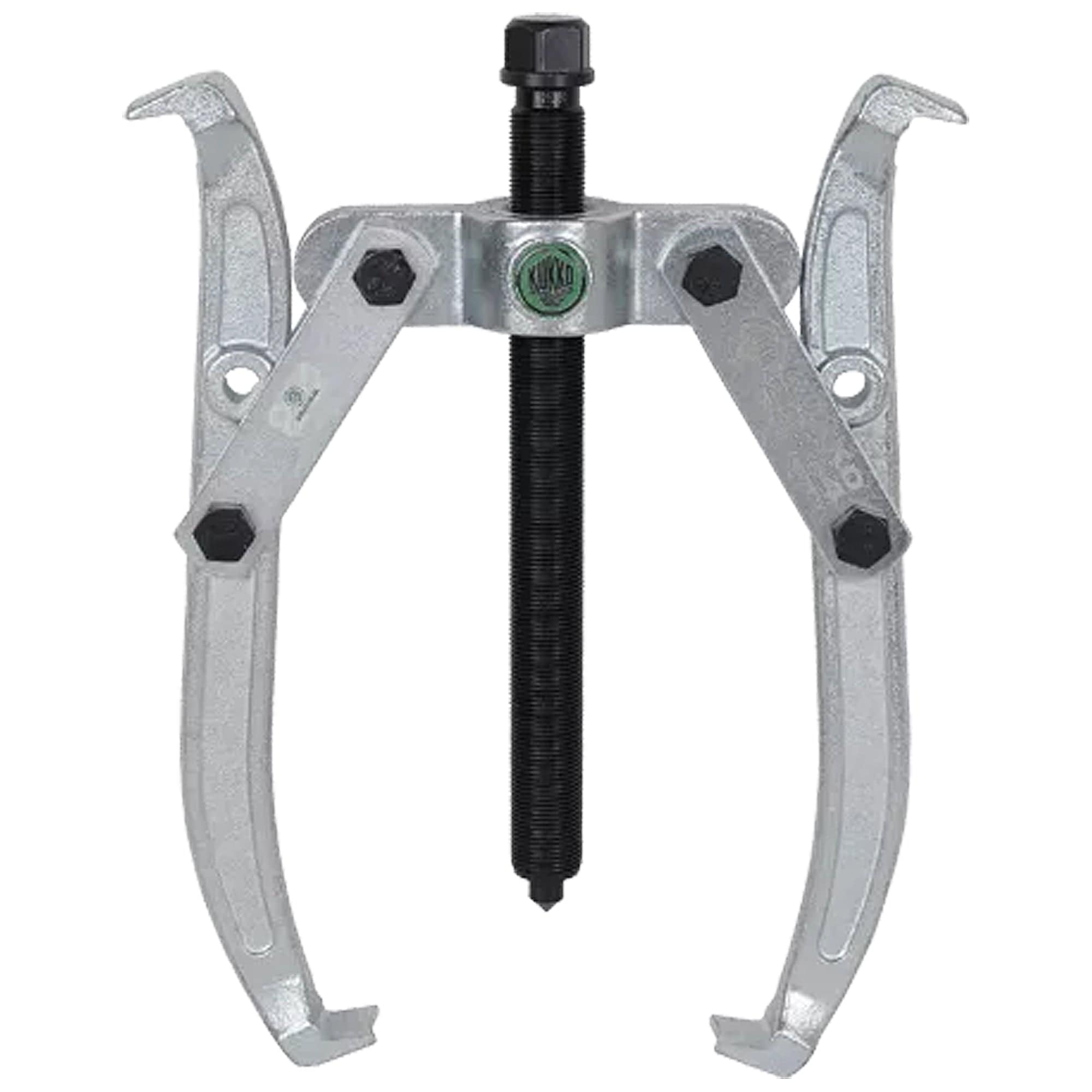

Kukko 201-4 2-Jaw Puller With Reversible Double-end Jaws 1 1/2 - 15 inch (37 - 380 mm)

|
Kukko ToolsSKU: WS03-201-4
filler

Price:
Sale price$459.90

Description

  • For removing bearings, gears, discs, etc.
  • Swiveling and reversible puller hooks.
  • Two-arm design for space-saving operation.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:201-4
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

37 - 380 mm 1 1/2 - 15 inch

Depth

300 mm 11 7/8 inch

Spread used internal

140 - 400 mm

Number of possible depths

2 2

Hexagon drive (male)

27 mm

Maximum load

10 t 11 US t

Maximum torque

250 Nm 184 ft lb

Weight

5.62 kg

Space below

20 mm 3/4 inch

Space next to it

40 mm 1 5/8 inch

Number of jaws

2 2



Product Data Sheet



Advantage

  • The pulling hooks are reversible and can be used on both sides with various different types of hooks.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with reversible jaws
