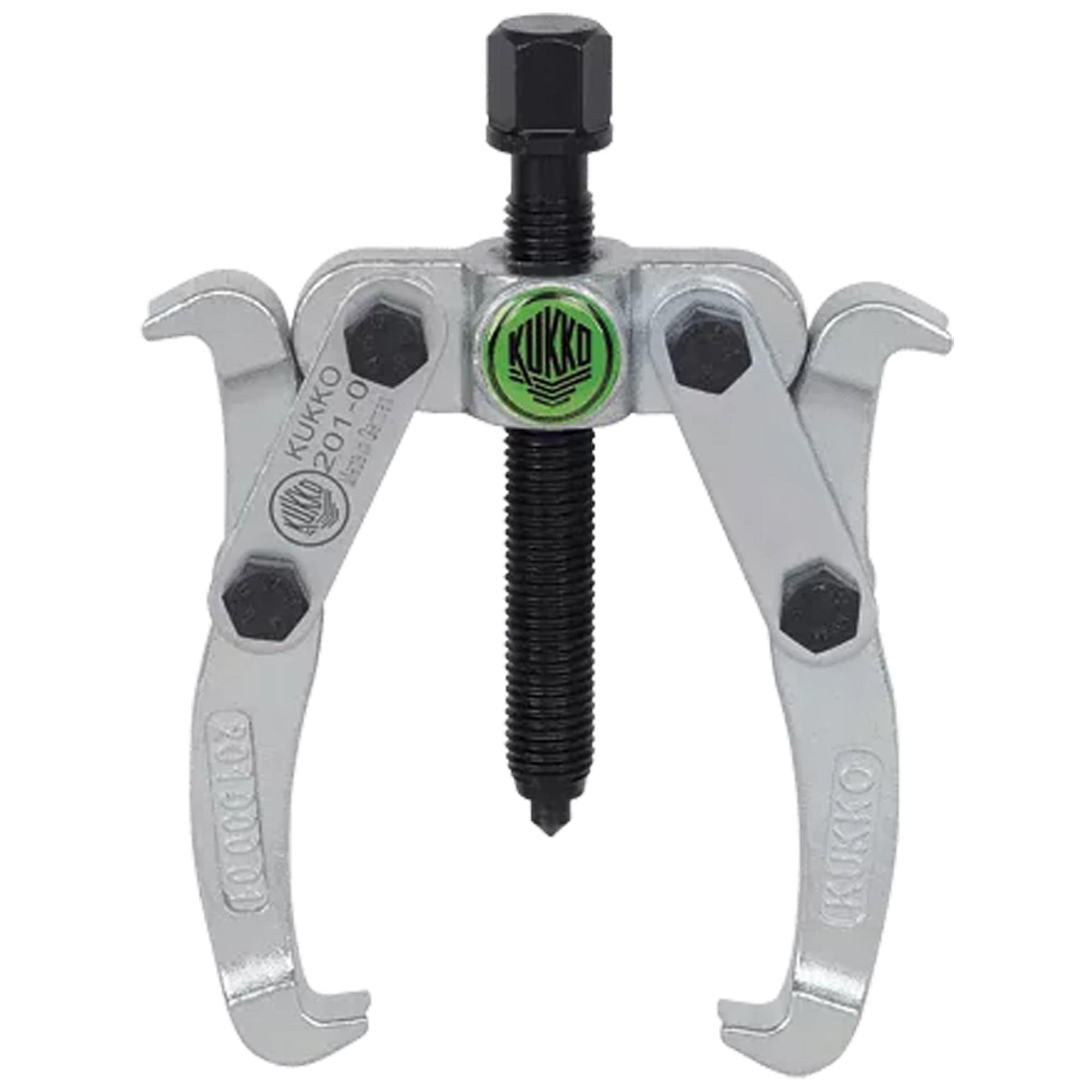

Description
- Swiveling and reversible puller hooks.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
-
MPN #:201-0
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
15 - 100 mm | 5/8 - 3 7/8 inch |
Depth |
75 mm | 3 inch |
Spread used internal |
45 - 110 mm | |
Number of possible depths |
1 | 1 |
Hexagon drive (male) |
14 mm | |
Maximum load |
1,5 t | 1.5 US t |
Maximum torque |
25 Nm | 18 ft lb |
Weight |
0.43 kg | |
Space below |
6 mm | 1/4 inch |
Space next to it |
14 mm | 5/8 inch |
Number of jaws |
2 | 2 |
Advantage
-
The pulling hooks are reversible and can be used on both sides with various different types of hooks.
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Spindle head band prevents the wrench from slipping off.
-
Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with reversible jaws
