Kukko 20-ST+ Universal 2-Jaw External And Internal Puller Set - 4 to 9 78 inch (90 - 250mm)

Kukko 20-ST+ Universal 2-Jaw External And Internal Pullers- Set of Five - 4 to 9 7/8 inch (90 - 250mm)

|
Save $327.99
Kukko ToolsSKU: WS03-20-ST+
filler
Price:
$1,572 $1,899.99

Description

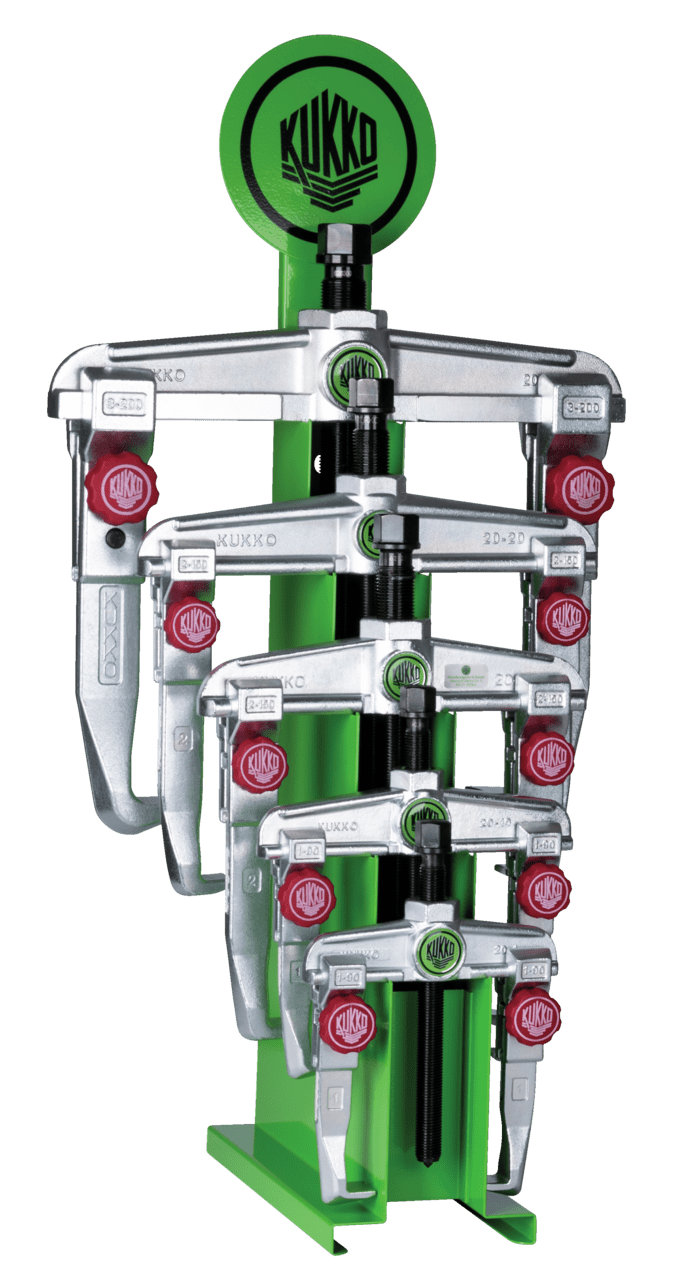

Set Contents:

  • Kukko 20-1+
  • Kukko 20-10+
  • Kukko 20-2+
  • Kukko 20-20+
  • Kukko 20-3+
  • Kukko 20-STL (Stand)

    Features:
  • For removing bearings, gears, discs, etc.
  • Standard pulling hook with quick adjusting capability quick adjust.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN #: 20-ST+
  • Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute

Metric

Imperial
Spread 90 - 250 mm 4 - 9 7/8 inch
Depth 100 - 200 mm 3 7/8 - 7 7/8 inch
Spread used internal 70 - 340 mm 2 3/4 - 13 3/8 inch
Hexagon drive (male) 17 - 27 mm
Maximum load 4,5 - 8,5 t 4.5 US t
Weight 20.2 kg
Jaws 2
 2



Product Data Sheet



Advantage

  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.

  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • Spindle head band prevents the wrench from slipping off.

  • Cross-beam with hexagonal profile for good grip.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

  • Stability support from optional series 219 clamp.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

Functionality

  • Pullers with sliding, parallel jaws
