Description

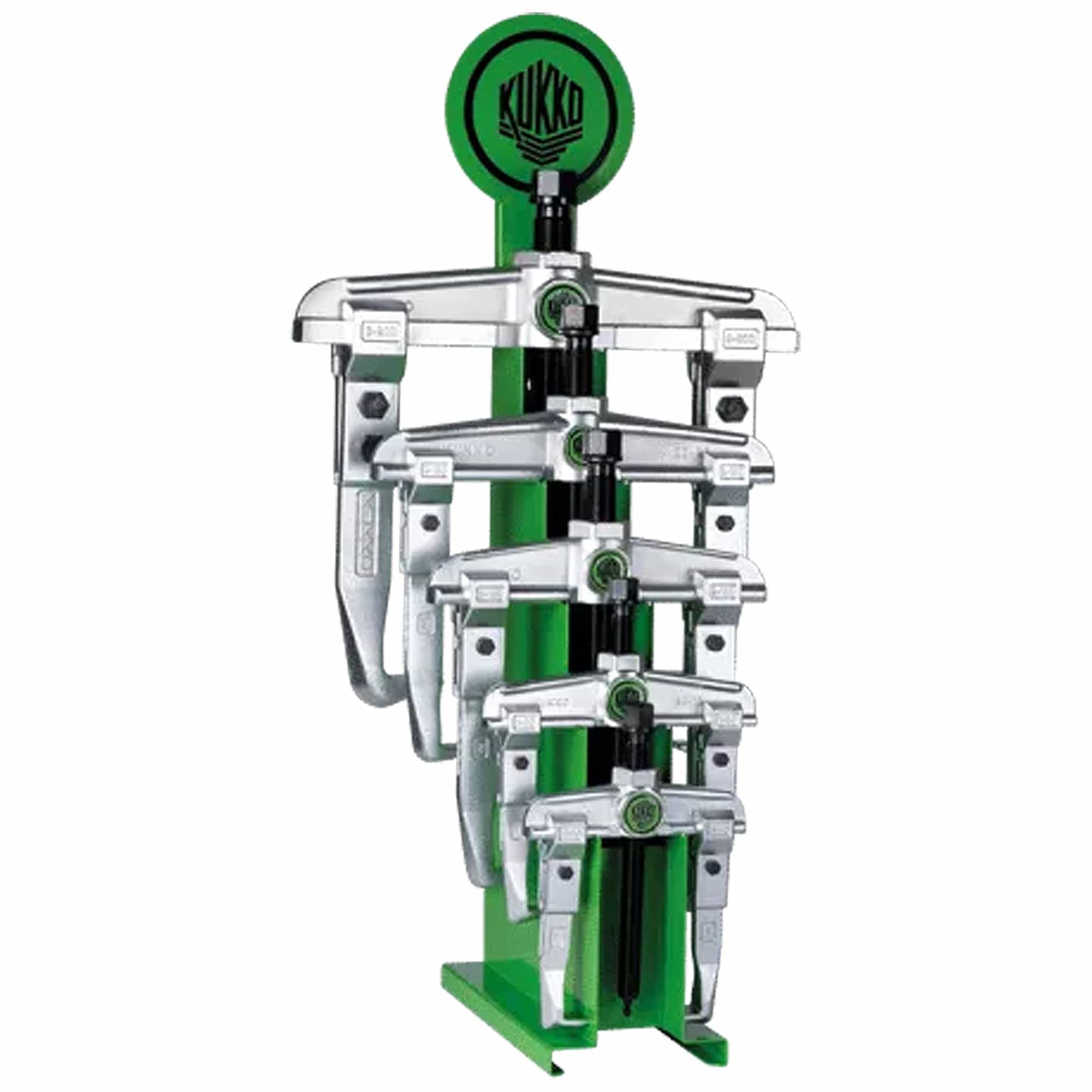

- The sales and workshop stands enable 2-jaw pullers to be stored and presented safely.
- Standard pulling hook.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
-
MPN #:20-ST
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
90 - 250 mm | 3 1/2 - 9 7/8 inch |
Depth |
100 - 200 mm | 3 7/8 - 7 7/8 inch |
Spread used internal |
70 - 340 mm | 2 3/4 - 13 3/8 inch |
Hexagon drive (male) |
17-27 mm | |
Maximum load |
80-300 t | 80-300 US t |
Weight |
20.16 kg | |
Number of jaws |
2 | 2 |
Advantage
-
Pulling hooks can be adjusted lengthwise to meet the required clamping depths.
-
Turning the pulling hooks enables them to be used both internally and externally.
-
Suitable for pulling asymmetric workpieces.
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Hydraulic spindle series 8 for particularly tight-fitting parts also available as an option.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Pullers with sliding, parallel jaws
