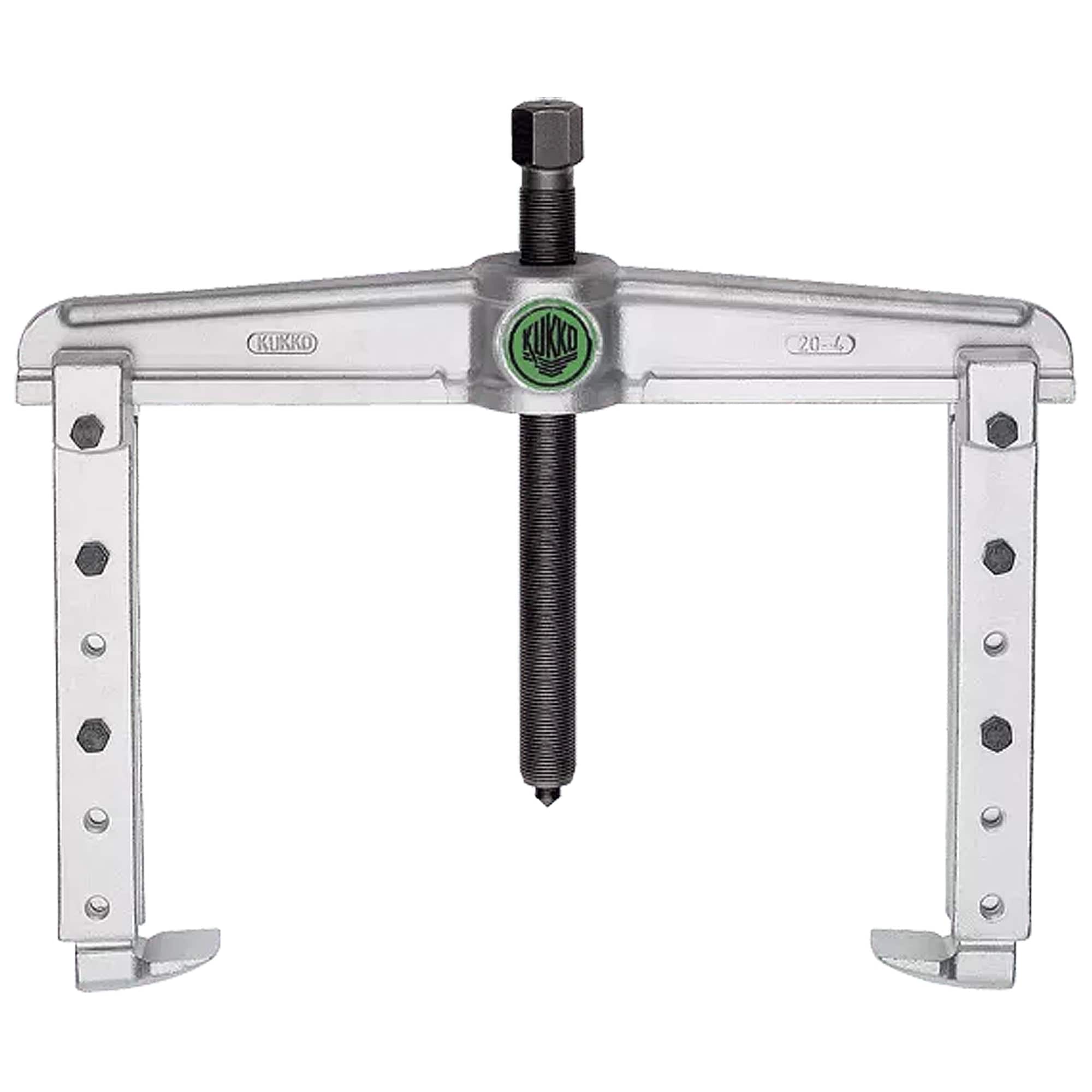

Kukko 20-4-AV Universal 2-Jaw Puller With Long Hydraulic Spindle And Extended Jaws 3 3/16 - 20 1/2 inch (80 - 520 mm)

|
Kukko ToolsSKU: WS03-20-4-AV
filler

Price:
Sale price$1,593.40

Description

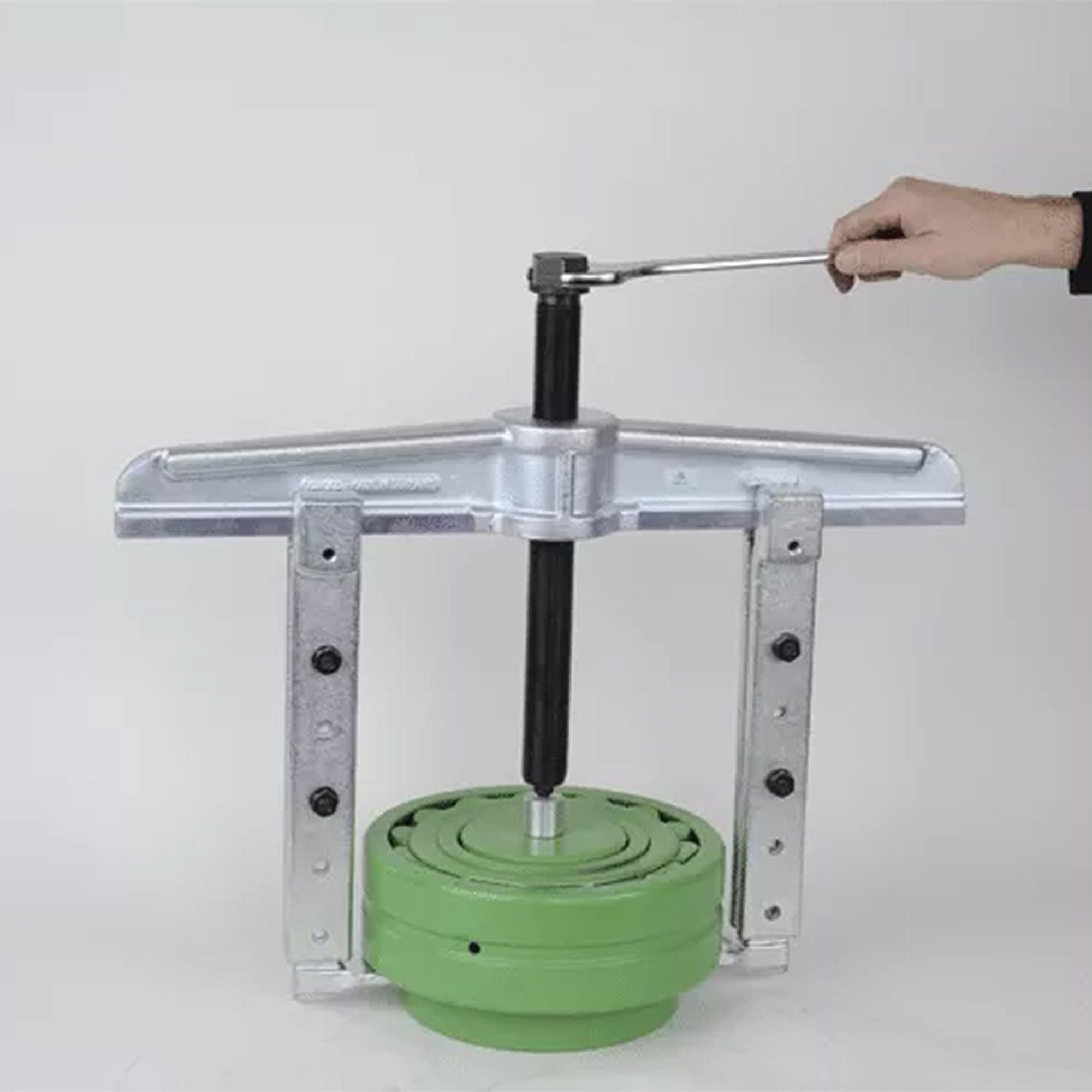

  • For removing bearings, gears, discs, etc
  • High performance is guaranteed.
  • Standard pulling hook with adjustable depths.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN #:20-4-AV
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

80 - 520 mm 3 3/16 - 20 1/2 inch

Depth

300 - 500 mm 11 7/8 - 19 3/4 inch

Spread used internal

200 - 590 mm 7 7/8 - 23 inch

Hexagon drive (male)

36 mm

Maximum load

12 t 1 US t

Maximum torque

400 Nm 295 ft lb

Weight

20.74 kg

Space below

25 mm 1 inch

Space next to it

85 mm 3 3/8 inch

Number of jaws

2 2



Product Data Sheet



Advantage

  • Pulling hooks can be adjusted lengthwise to meet the required clamping depths.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Hydraulic spindle series 8 for particularly tight-fitting parts also available as an option.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.




Functionality

  • Pullers with sliding, parallel jaws
