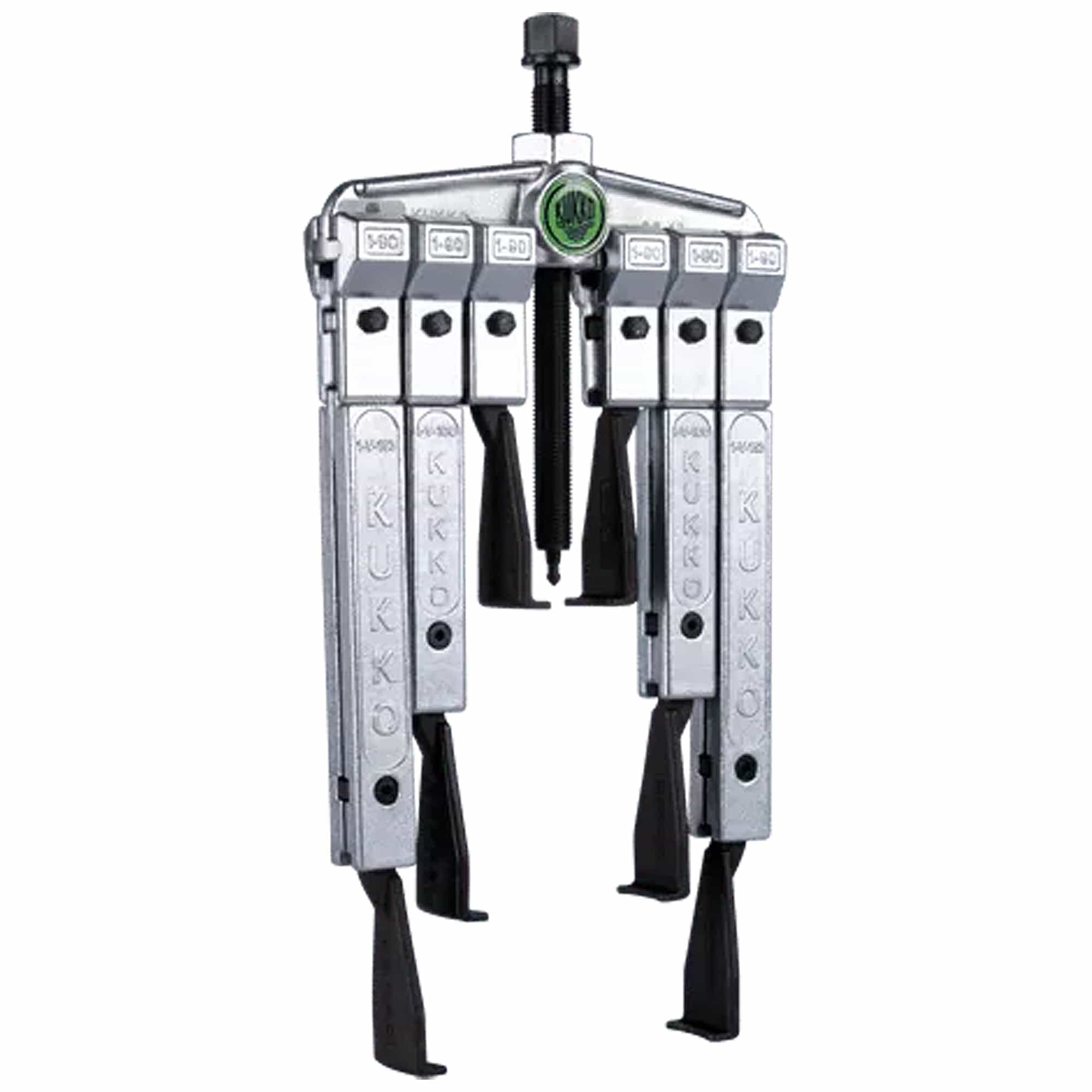

Description
- Thin pulling hooks in various lengths.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
-
MPN #:20-30-SP
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
350 mm | 13 3/4 inch |
Depth |
200/300/400 mm | 7 7/8; 11 7/8; 15 3/4 inch |
Spread used internal |
180 - 440 mm | 7 1/8 - 17 3/8 inch |
Hexagon drive (male) |
27 mm | |
Maximum torque |
250 Nm | |
Maximum load |
7 t | 7.5 US t |
Weight |
16.68 kg | |
Number of jaws |
2 | 2 |
Advantage
-
Variable reach thanks to optional jaw extensions.
-
Can be installed on various pulling hooks.
-
Turning the pulling hooks enables them to be used both internally and externally.
-
Suitable for pulling asymmetric workpieces.
-
Spindle head band prevents the wrench from slipping off.
-
Cross-beam with hexagonal profile for good grip.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
-
Stability support from optional series 219 clamp.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with sliding, parallel jaws
