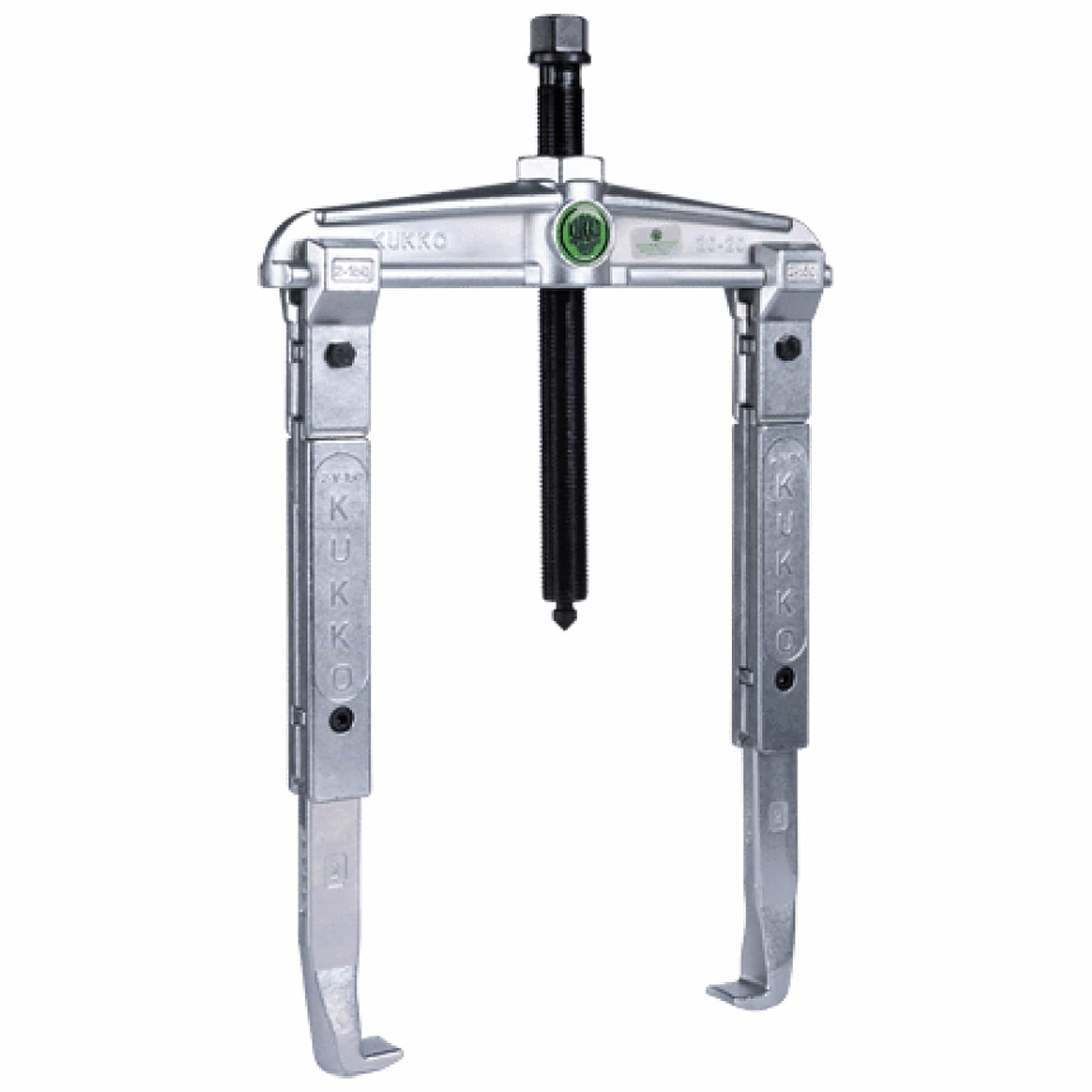

Kukko 20-30-5 Universal 2-Jaw Puller With Extended Jaws 2 5/8 - 13 3/4 inch (65 - 350 mm)

Kukko ToolsSKU: WS03-20-30-5

Sale price$772

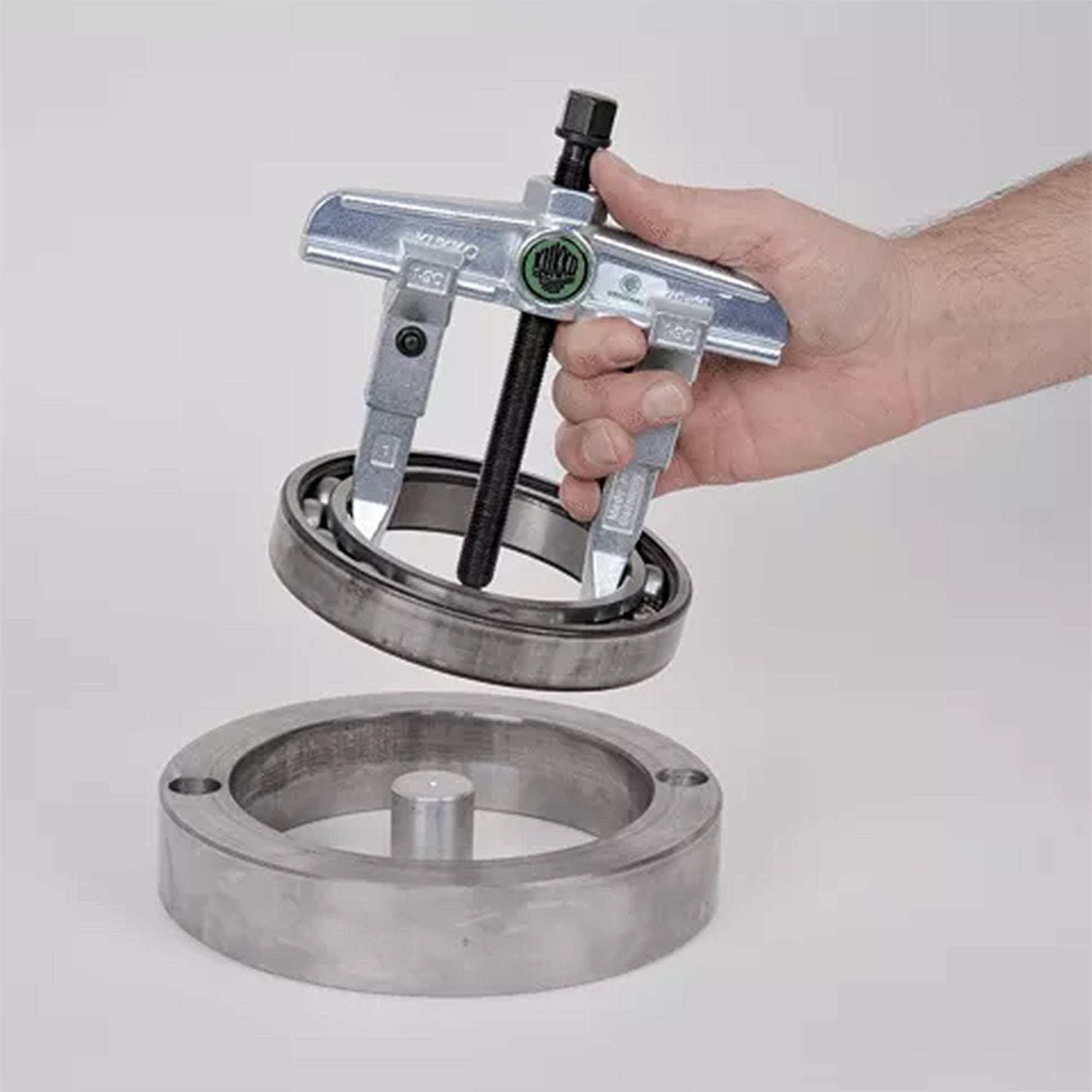

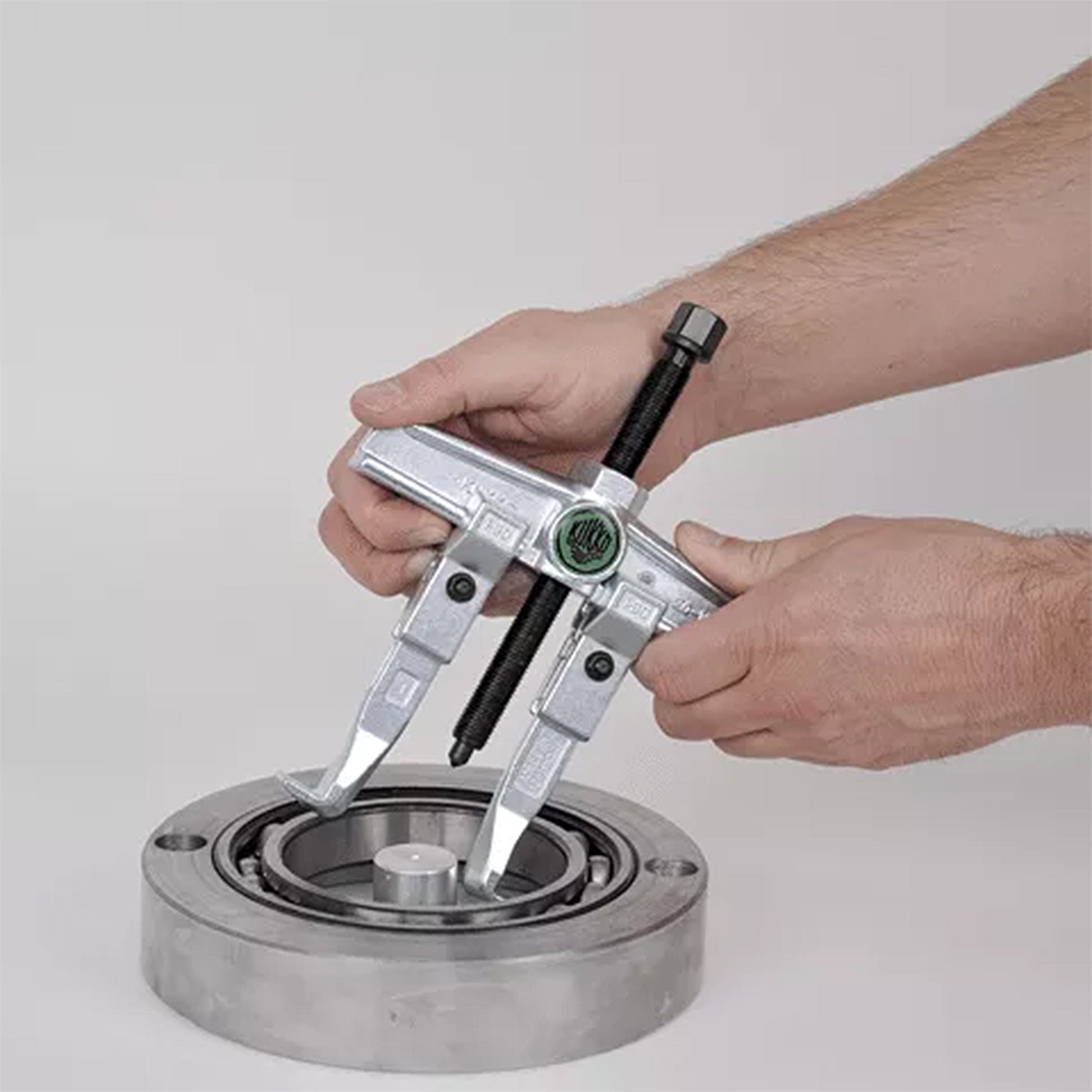

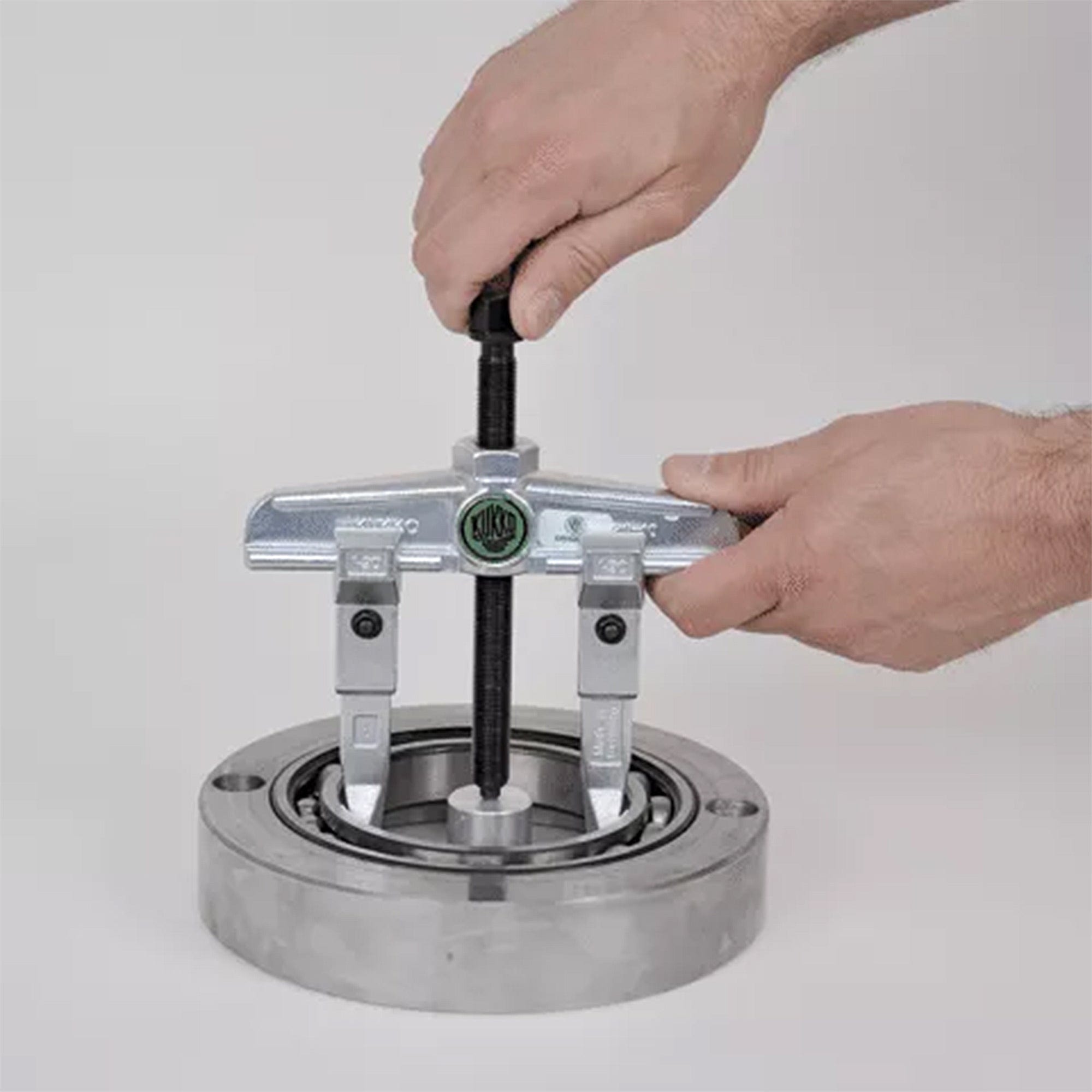

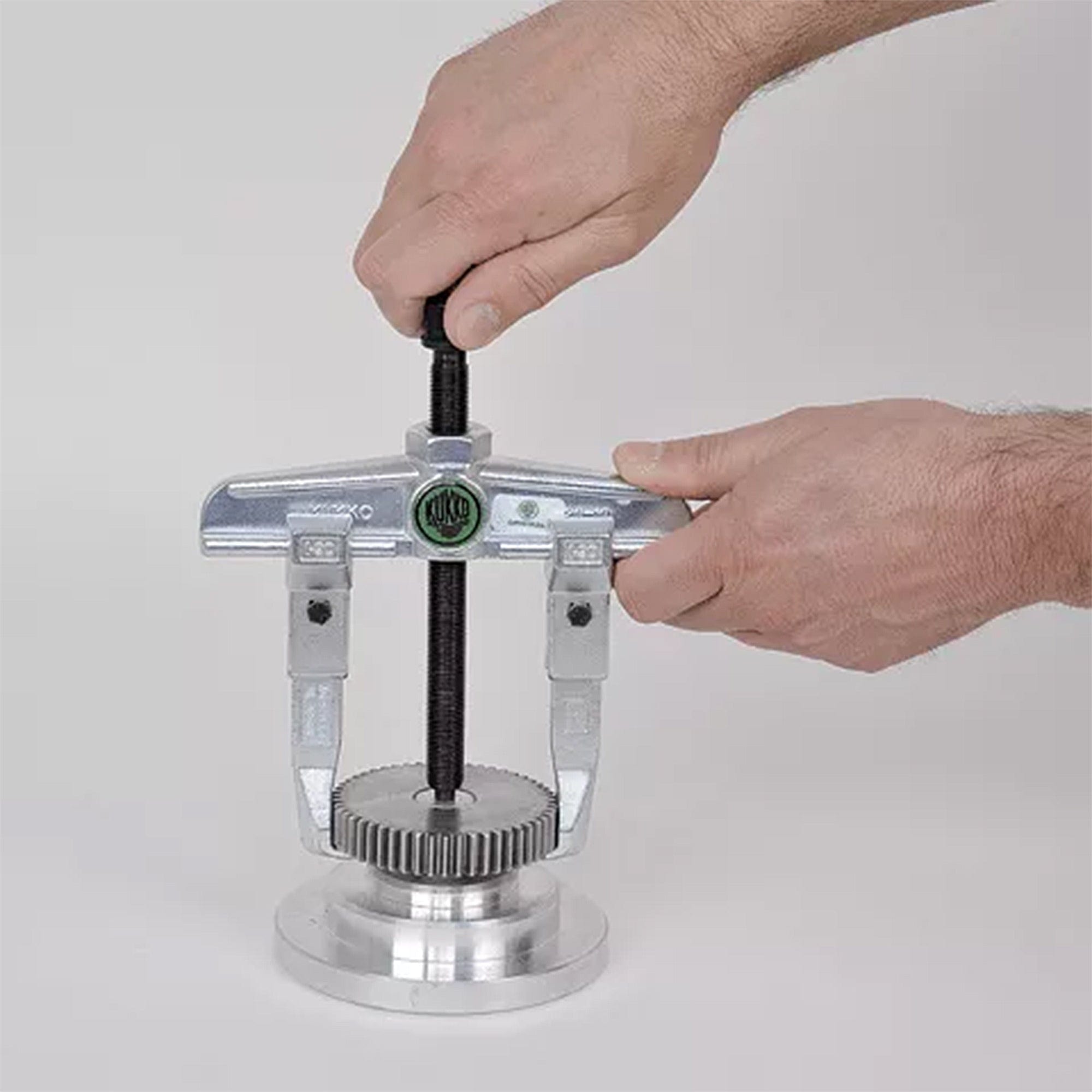

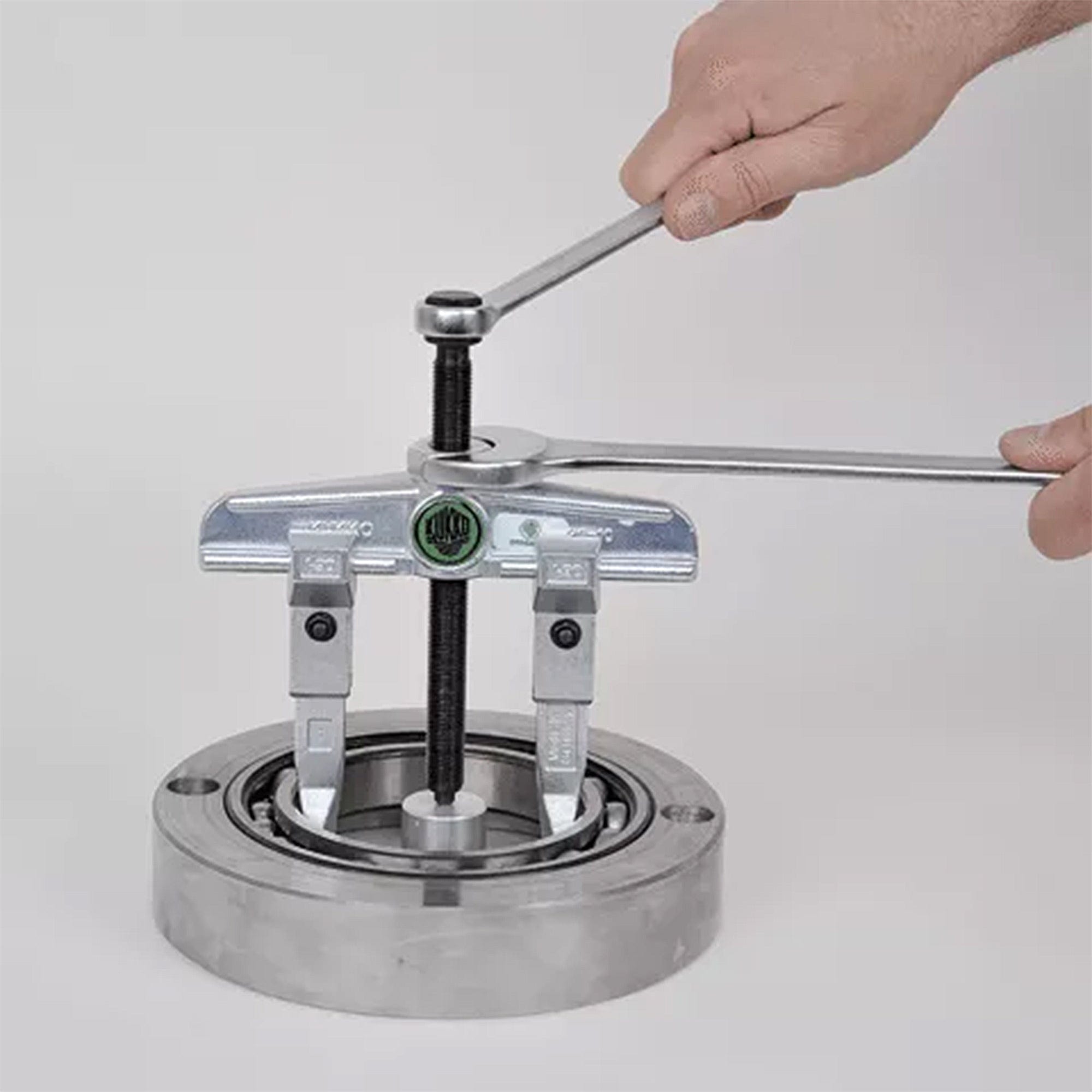

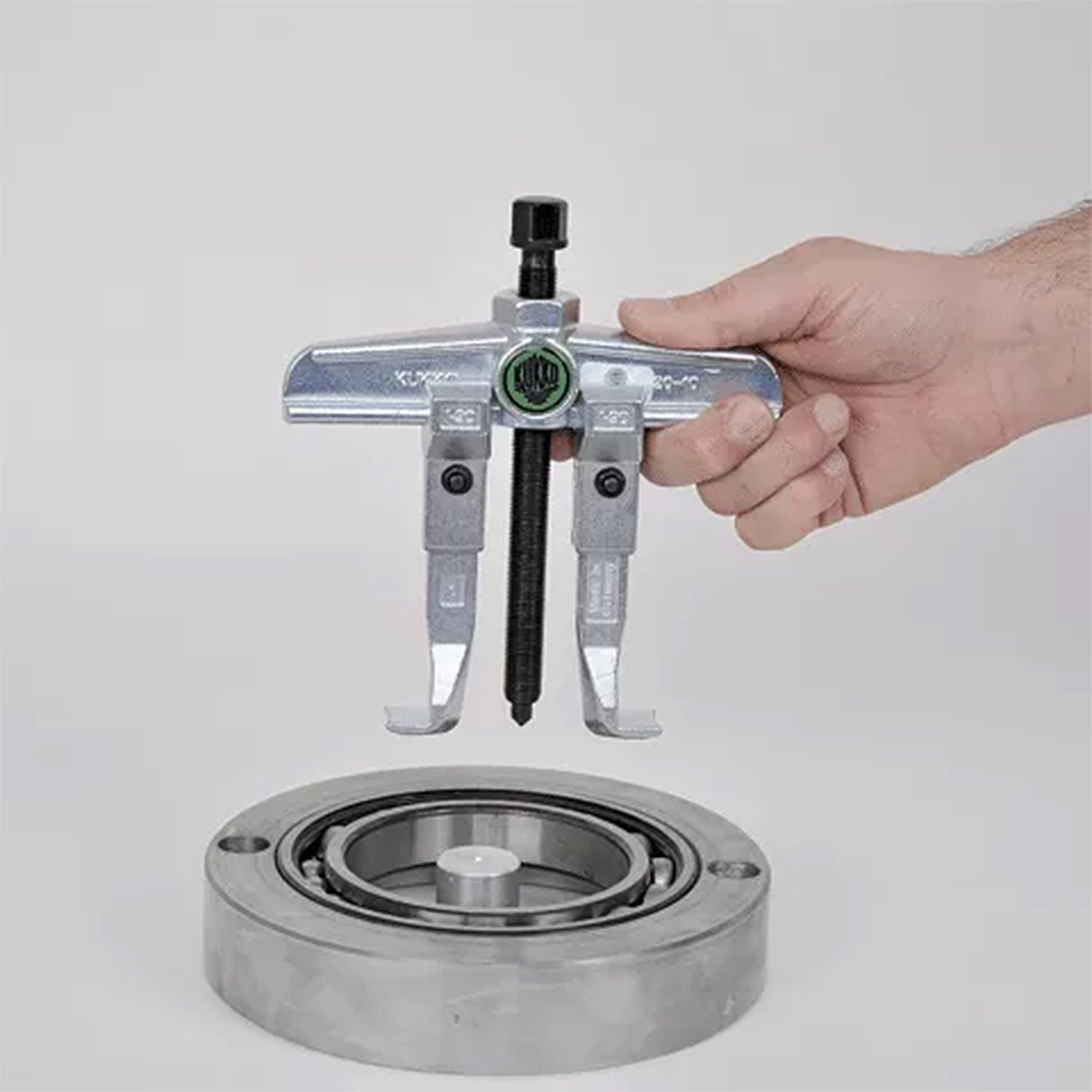

  • For removing bearings, gears, discs, etc.
  • Extended standard puller hook.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN #:20-30-5
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute




65 - 350 mm 2 5/8 - 13 3/4 inch


500 mm 19 3/4 inch

Spread used internal

180 - 440 mm 7 1/8 - 17 3/8 inch

Hexagon drive (male)

27 mm

Maximum torque

300 Nm

Maximum load

8,5 t 9 US t


10.875 kg

Space below

20 mm 3/4 inch

Space next to it

67 mm 2 5/8 inch

Number of jaws

2 2


Product Data Sheet



  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • Spindle head band prevents the wrench from slipping off.

  • Cross-beam, up to size -30, includes hexagonal profile for holding.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

  • Stability support from optional series 219 clamp.

KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



  • Pullers with sliding, parallel jaws
