Description
- Grease hydraulics.
- Extended standard puller hook.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.

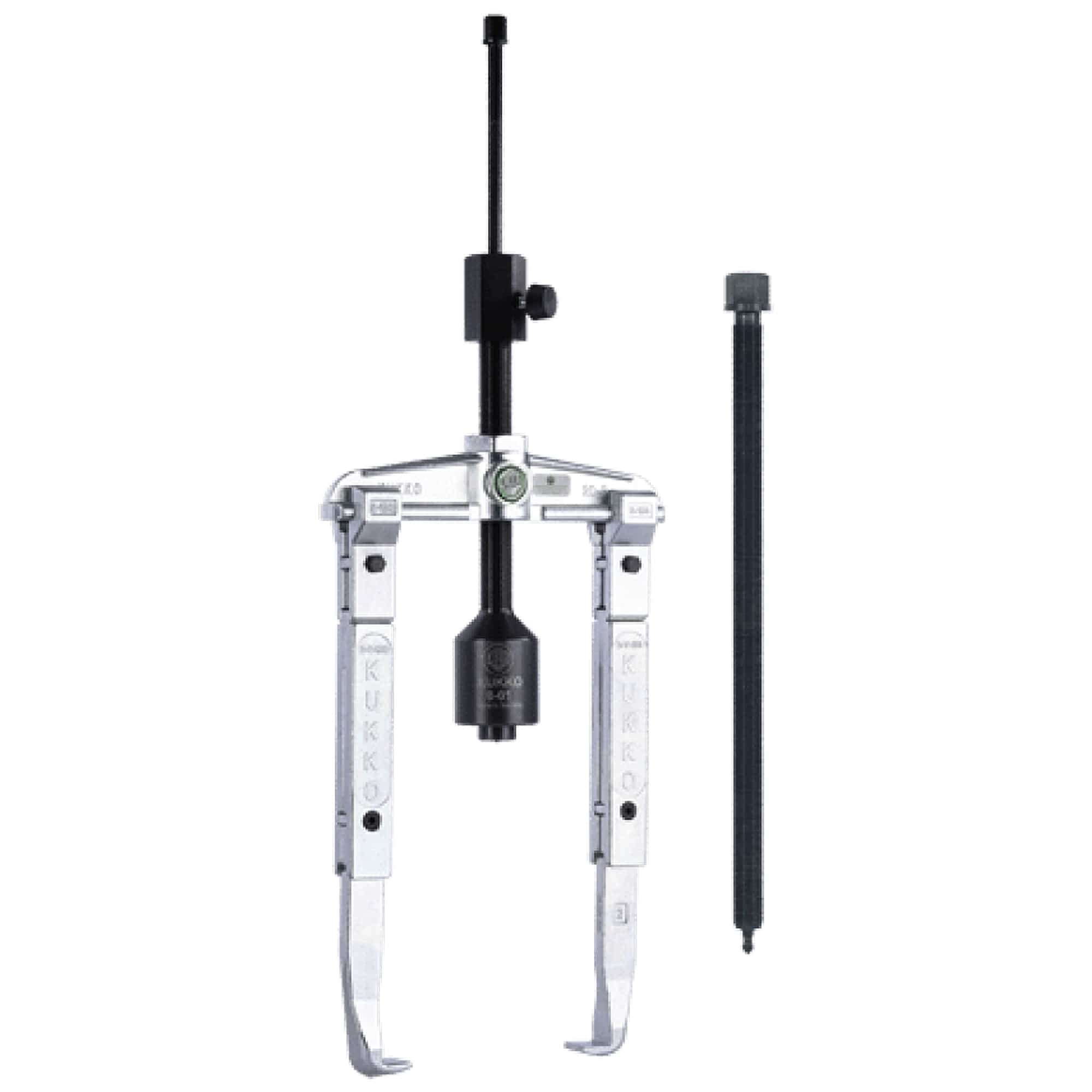

- Hydraulic and mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
- MPN #:20-30-5-B
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
|
Spread |
65 - 350 mm | 2 5/8 - 13 3/4 inch |
|
Depth |
500 mm | 19 3/4 inch |
|
Spread used internal |
180 - 440 mm | 7 1/8 - 17 3/8 inch |
|
Hexagon drive (male) |
12; 27 mm | |
|
Maximum load |
10 t | 11 US t |
|
Weight |
12.815 kg | |
|
Space below |
20 mm | 3/4 inch |
|
Space next to it |
67 mm | 2 5/8 inch |
|
Number of jaws |
2 | 2 |
Advantage
-
Easy and even pulling for particularly tight parts.
-
Optional conversion to various jaw types for mechanical use.
-
Variable reach thanks to jaw extensions, available up to a puller size of -30.
-

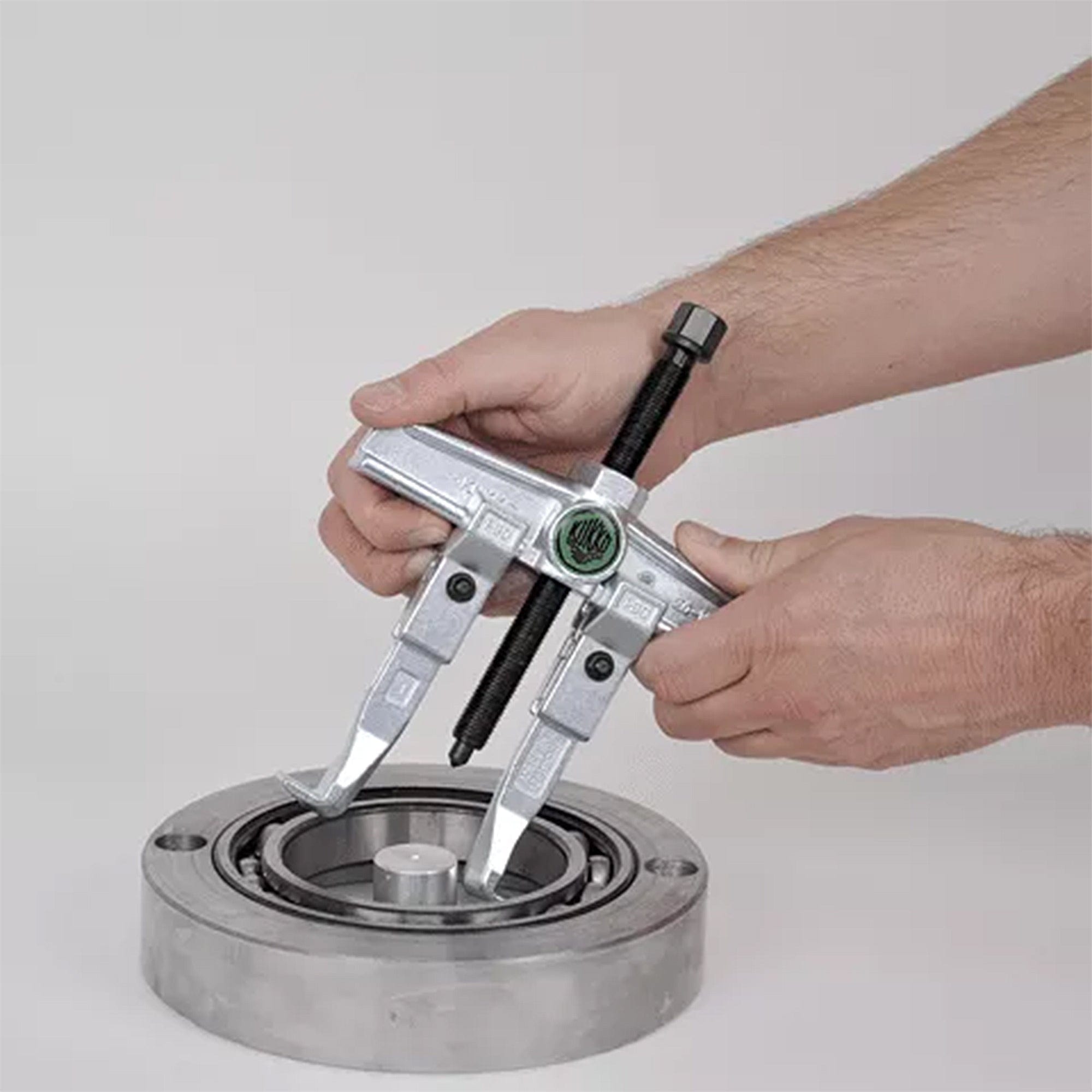

Turning the pulling hooks enables them to be used both internally and externally.
-
Suitable for pulling asymmetric workpieces.
-
Spindle head band prevents the wrench from slipping off.
-
Cross-beam, up to size -30, includes hexagonal profile for holding.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with sliding, parallel jaws
