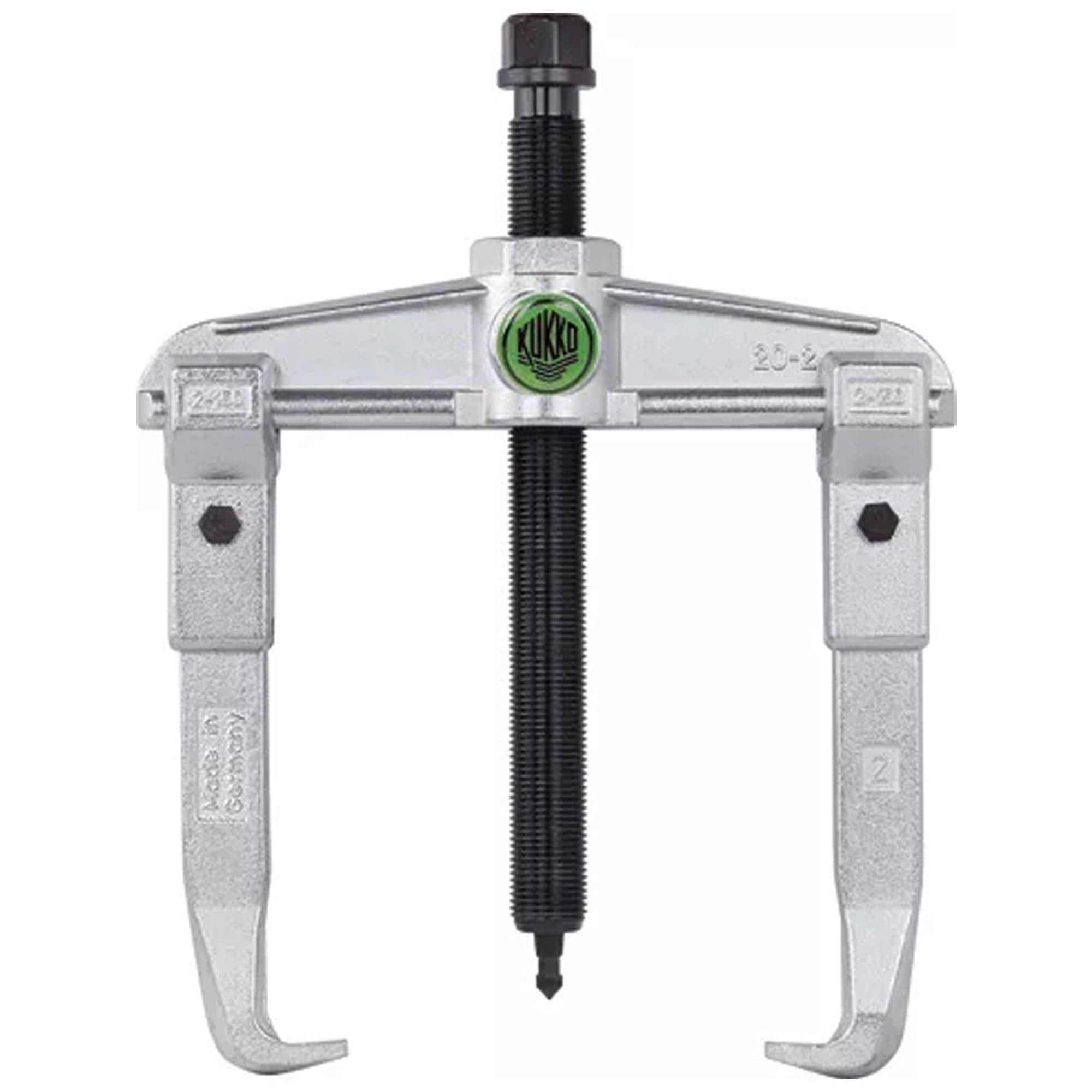

Description
- Standard pulling hook.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure spindle.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
- MPN #:20-2
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
|
Spread |
40 - 160 mm | 1 5/8 - 6 3/8 inch |
|
Depth |
150 mm | 5 7/8 inch |
|
Spread used internal |
100 - 220 mm | 3 7/8 - 8 5/8 inch |
|
Hexagon drive (male) |
22 mm | |
|
Maximum load |
6,0 t | 6.5 US t |
|
Maximum torque |
150 Nm | 110.5 ft lb |
|
Number of jaws |
2 | 2 |
|
Weight |
3.01 kg | |
|
Space below |
9 mm | 3/8 inch |
|
Space next to it |
40 mm | 1 5/8 inch |
Advantage
-
The thin pulling hooks are suitable for narrow, difficult-to-access locations.
-
A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
-
Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
-
Suitable for pulling asymmetric workpieces.
-
Spindle head band prevents the wrench from slipping off.
-
Cross-beam with hexagonal profile for good grip.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
-
Stability support from optional series 219 clamp.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance, and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
Product video on the product can be opened.
Functionality
-
Pullers with sliding, parallel jaws
