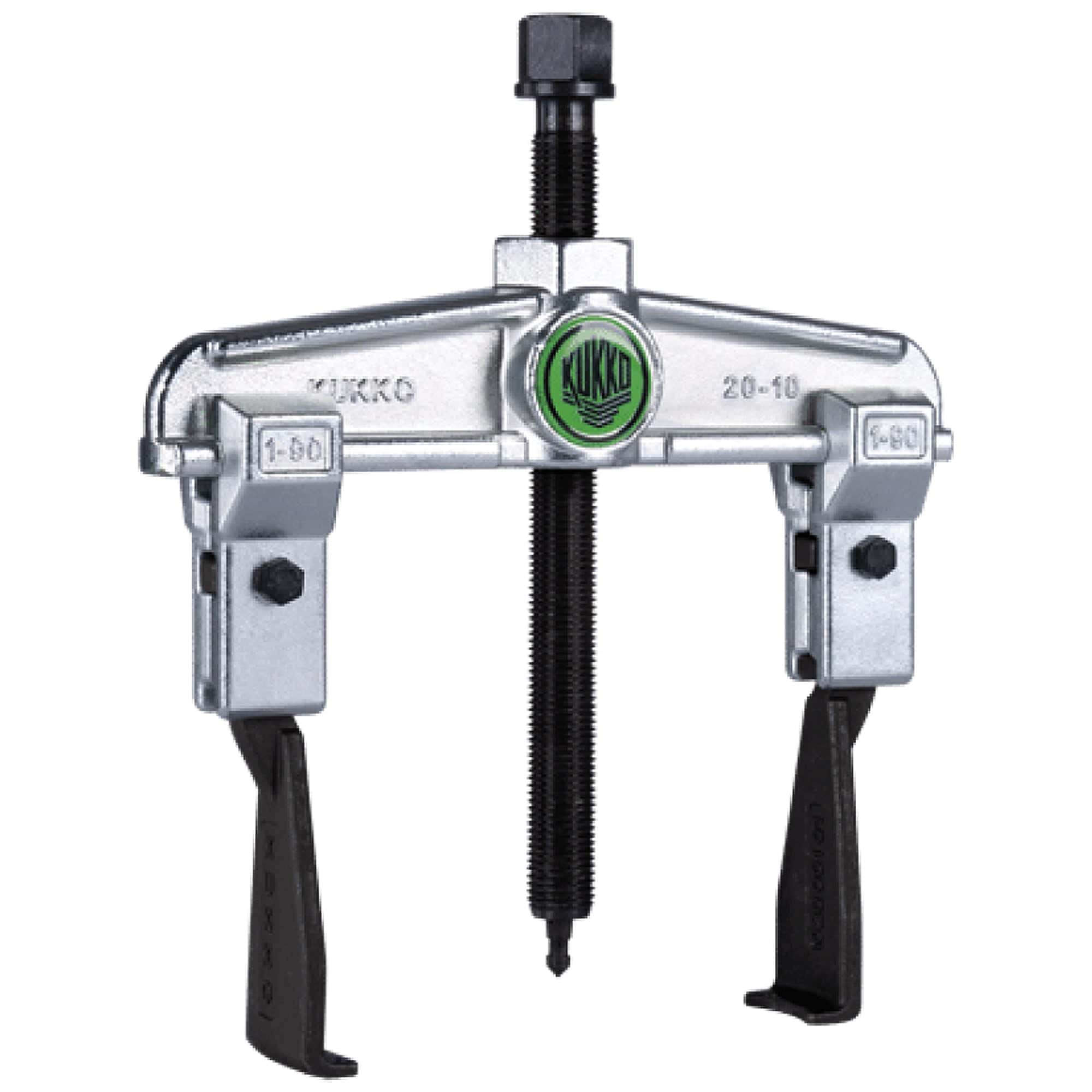

Kukko 20-2-S Universal 2-Jaw Puller With Narrow Jaws 1 5/8 - 6 3/8 inch (40 - 160 mm)

|
Kukko ToolsSKU: WS03-20-2-S
filler

Price:
Sale price$386

Description

  • For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
  • Thin pulling hooks.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN #:20-2-S
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

40 - 160 mm 1 5/8 - 6 3/8 inch

Depth

150 mm 5 7/8 inch

Spread used internal

100 - 220 mm 3 7/8 - 8 5/8 inch

Hexagon drive (male)

22 mm

Maximum load

5 t 5.5 US t

Maximum torque

120 Nm 88.5 ft lb

Number of jaws

2 2

Weight

3.005 kg

Space below

4 mm 3/16 inch

Space next to it

19 mm 3/4 inch



Product Data Sheet



Advantage

  • The thin pulling hooks are suitable for narrow, difficult-to-access locations.

  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • Spindle head band prevents the wrench from slipping off.

  • Cross-beam with hexagonal profile for good grip.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

  • Stability support from optional series 219 clamp.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with sliding, parallel jaws
