Description

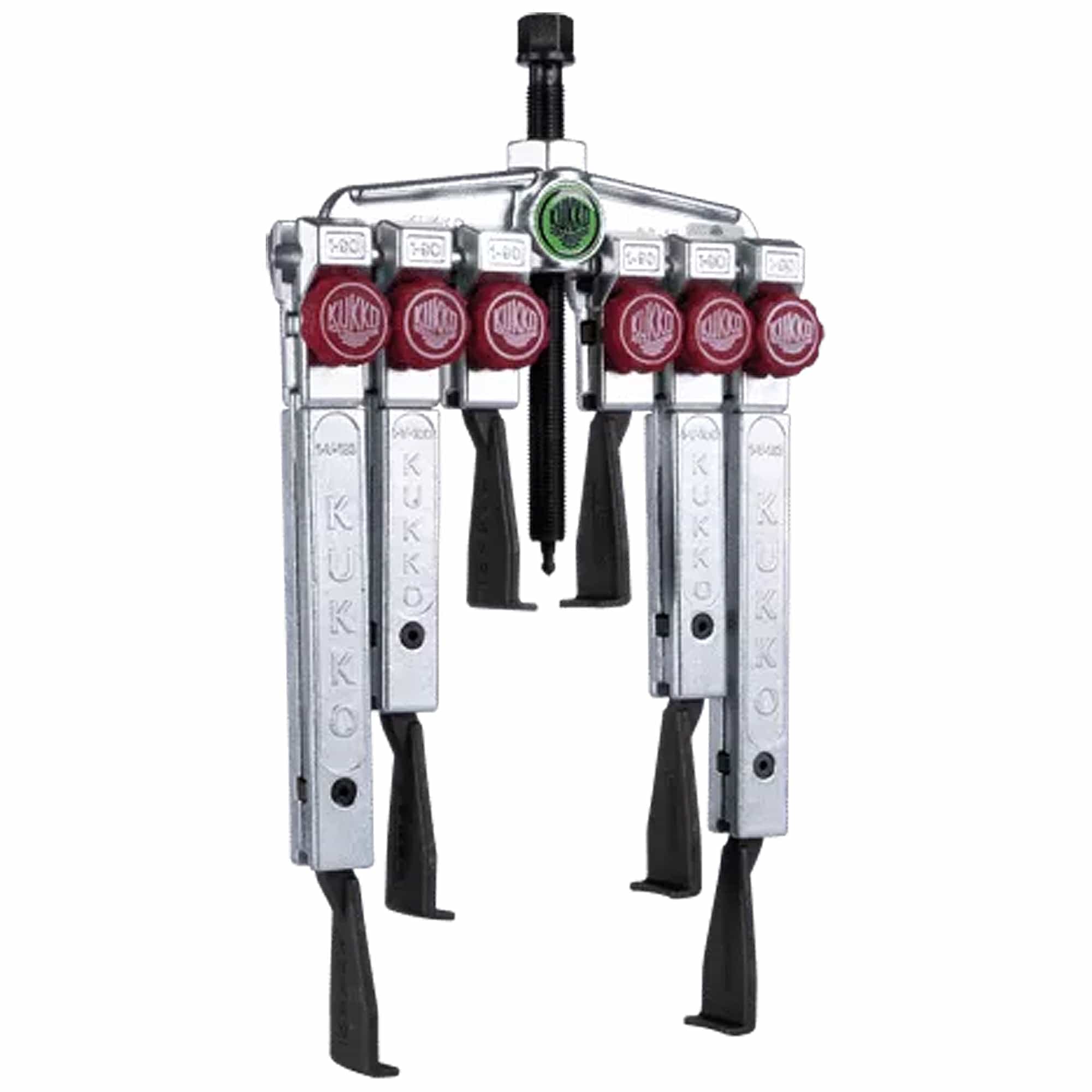

- Thin pulling jaws in various lengths with quick-adjusting capability.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
- MPN #:20-10+SP
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
120 mm | 4 3/4 inch |
Depth |
100/200/250 mm | 3 7/8; 7 7/8; 9 7/8 inch |
Spread used internal |
70 - 180 mm | 2 3/4 - 7 1/8 inch |
Hexagon drive (male) |
17 mm | |
Maximum load |
2,5 t | 2.5 US t |
Weight |
3.875 kg |
Advantage
-
The thin pulling hooks are suitable for narrow, difficult-to-access locations.
-
A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
-
Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
-
Suitable for pulling asymmetric workpieces.
-
Spindle head band prevents the wrench from slipping off.
-
Cross-beam with hexagonal profile for good grip.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
-
Stability support from optional series 219 clamp.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance, and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
Product video on the product can be opened.
Functionality
-
Pullers with sliding, parallel jaws
