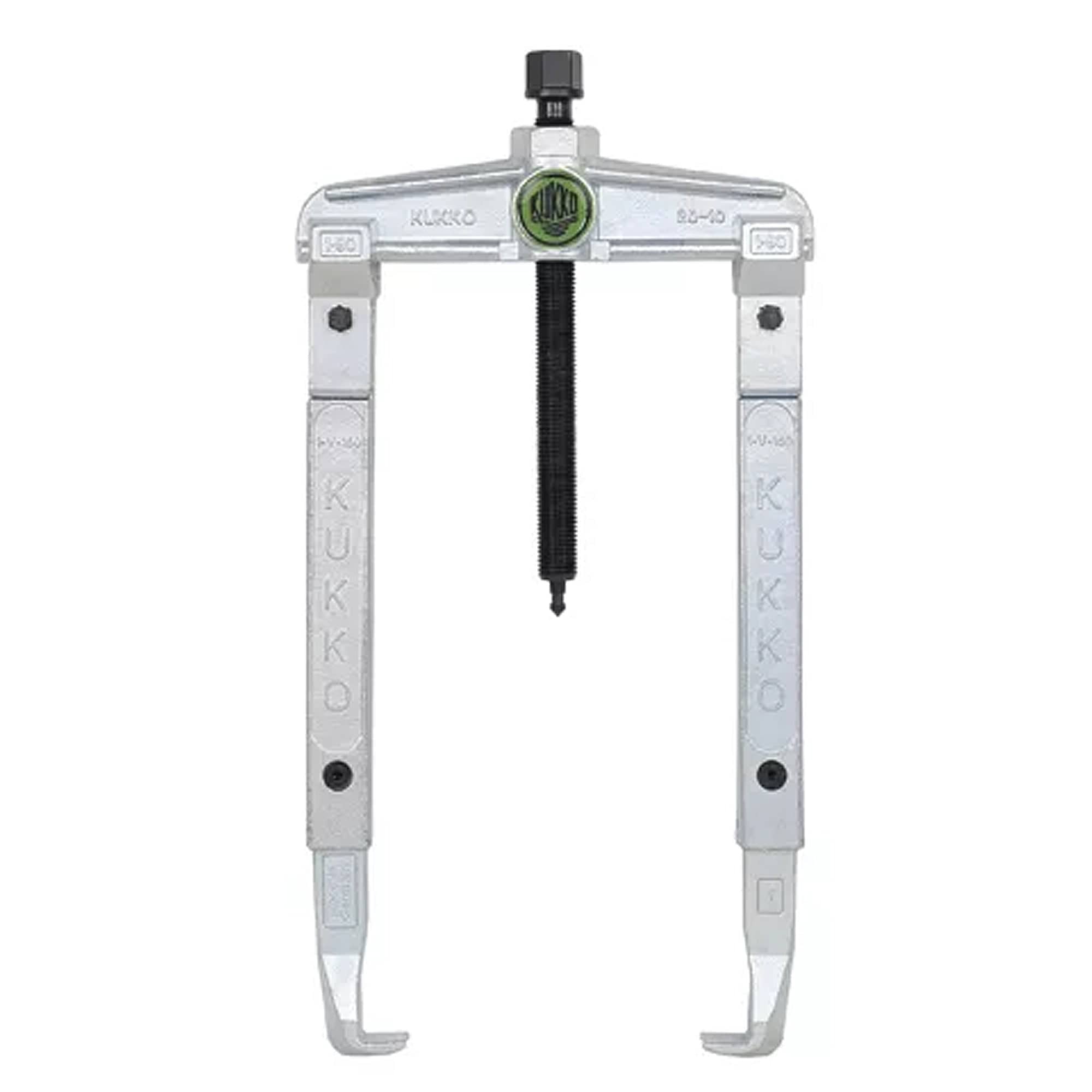

Kukko 20-10-4 Universal 2-Jaw Puller With Extended Jaws 1 3/16 - 4 3/4 inch (30 - 120 mm)

|
Kukko ToolsSKU: WS03-20-10-4
filler

Price:
Sale price$282.10

Description

  • For removing bearings, gears, discs, etc.
  • Extended standard puller hook.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN #:20-10-4
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

30 - 120 mm 1 3/16 - 4 3/4 inch

Depth

400 mm 15 3/4 inch

Spread used internal

70 - 180 mm 2 3/4 - 7 1/8 inch

Hexagon drive (male)

17 mm

Maximum load

4,5 t 4.5 US t

Maximum torque

80 Nm

Weight

3.435 kg

Space below

10 mm 3/8 inch

Space next to it

31 mm 1 1/4 inch

Number of jaws

2
2



Product Data Sheet



Advantage

  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • Spindle head band prevents the wrench from slipping off.

  • Cross-beam, up to size -30, includes hexagonal profile for holding.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

  • Stability support from optional series 219 clamp.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with sliding, parallel jaws
