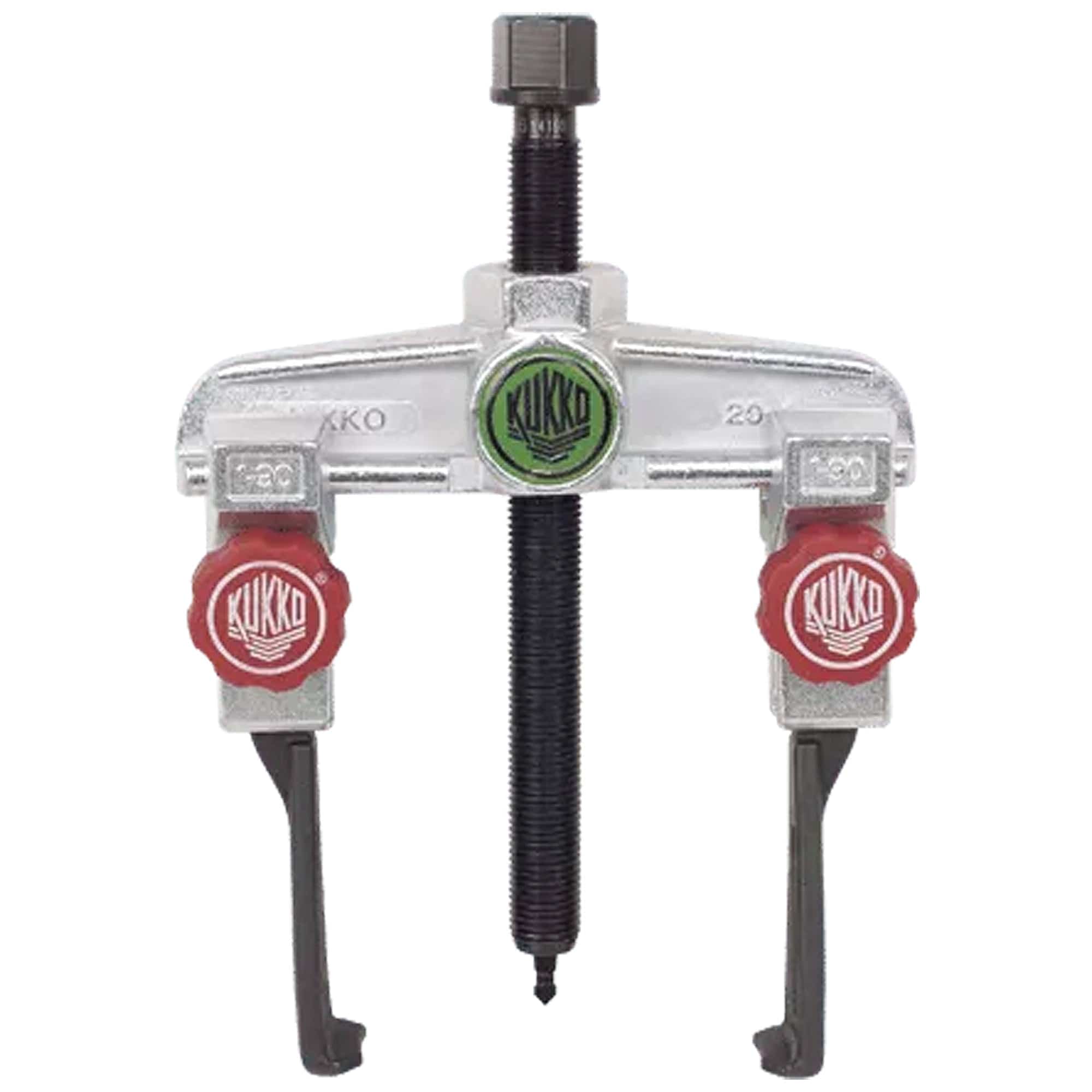

Kukko 20-1-S-T Universal 2-Jaw Puller With Narrow Jaws 1 3/16 - 3 1/2 inch (30 - 90 mm)

Kukko ToolsSKU: WS03-20-1-S-T

Sale price$193


  • For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
  • Thin pulling hook with quick adjusting capability quick adjust.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN#: 20-1-S-T
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.

Technical attribute



Spread 30 - 90 mm 1 3/16 - 3 1/2 inch
Depth 100 mm 3 7/8 inch
Spread used internal 70 - 140 mm 2 3/4 - 5 1/2 inch
Hexagon drive (male) 17 mm
Maximum load 2.5 t 2.5 US t
Maximum torque 35 Nm 25.5 ft lb
Weight 1.18 kg
Space below 3 mm 1/8 inch
Space next to it 12 mm 1/2 inch
2 2


Product Data Sheet



  • The thin pulling hooks are suitable for narrow, difficult-to-access locations.

  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.

  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • Spindle head band prevents the wrench from slipping off.

  • Cross-beam with hexagonal profile for good grip.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

  • Stability support from optional series 219 clamp.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


  • Pullers with sliding, parallel jaws
