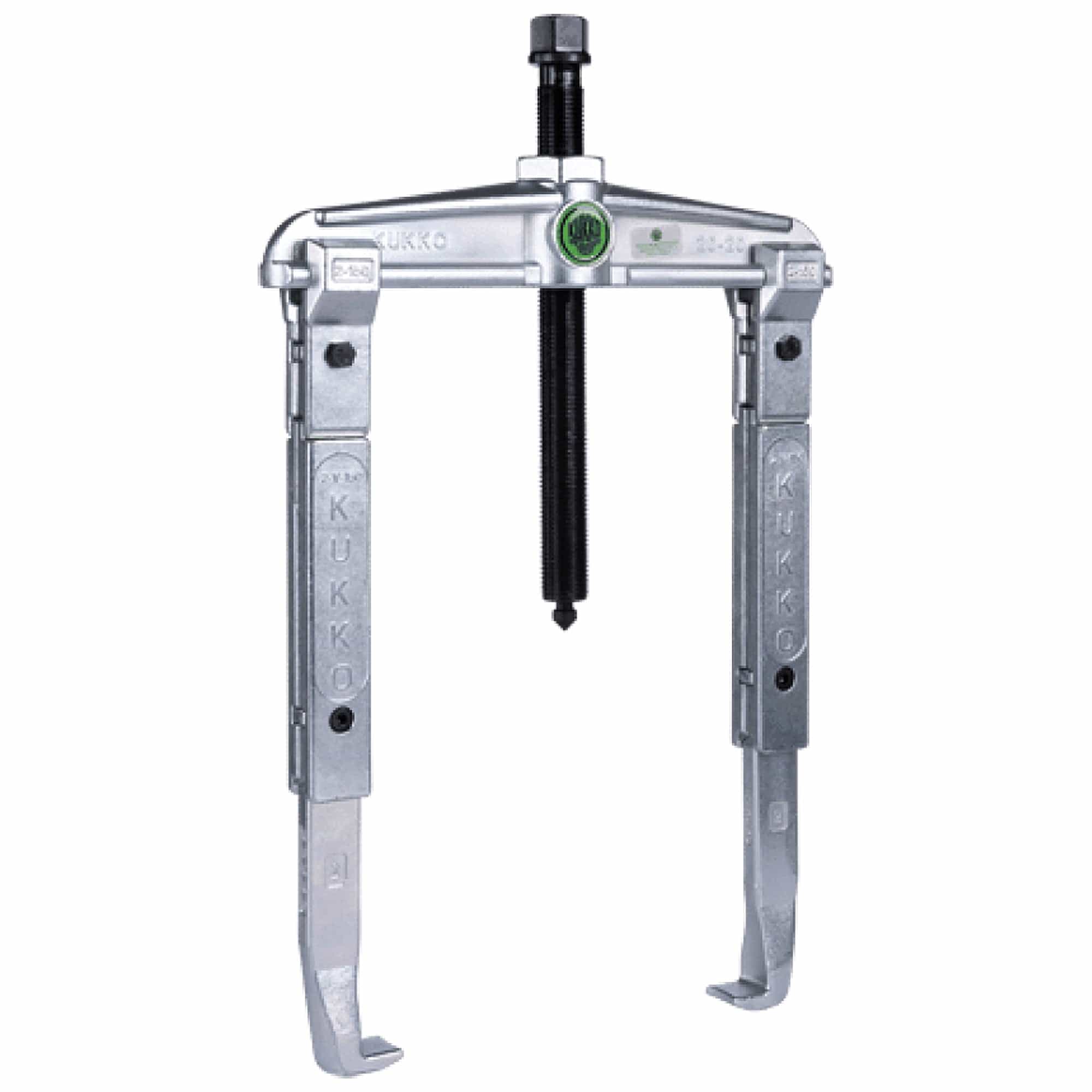

Description
- For removing bearings, gears, discs, etc.
- Extended standard puller hook.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
- MPN #: 20-1-4
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread | 30 - 90 mm | 1 3/16 - 3 1/2 inch |
Depth | 400 mm | 15 3/4 inch |
Spread used internal | 70 - 140 mm | 2 3/4 - 5 1/2 inch |
Hexagon drive (male) | 17 mm | |
Maximum load | 4,5 t | 4.5 US t |
Maximum torque | 80 Nm | 59 ft lb |
Number of jaws | 2 | 2 |
Weight | 3.13 kg | |
Space below | 10 mm | 3/8 inch |
Space next to it | 31 mm | 1 1/4 inch |
Advantage
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Cross-beam, up to size -30, includes hexagonal profile for holding.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
- Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
- Stability support from optional series 219 clamp.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Pullers with sliding, parallel jaws
