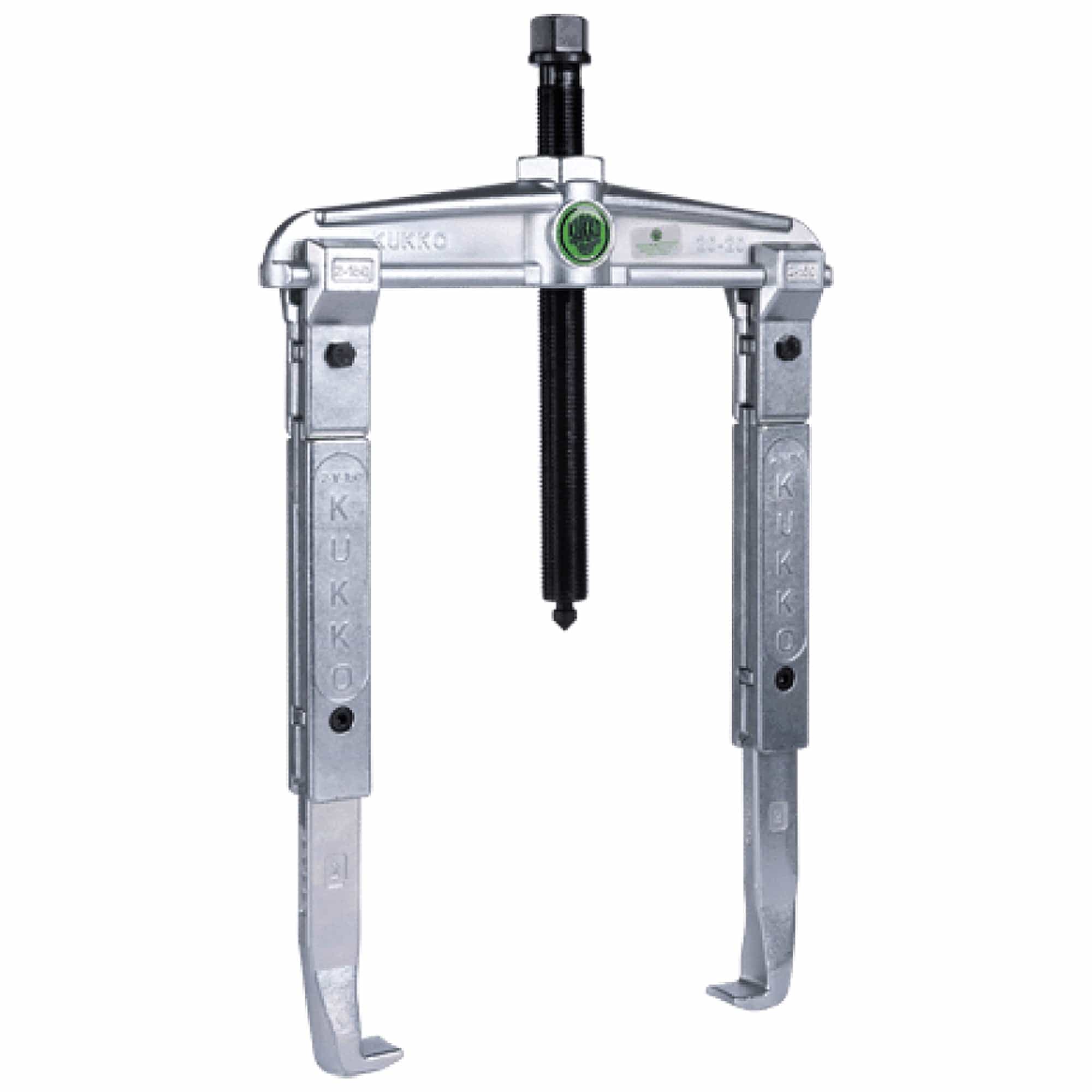

Kukko 20-1-25 Universal 2-Jaw Puller with Extended Jaws 1 3/16 - 3 1/2inch (30 - 90mm)

|
Kukko ToolsSKU: WS03-20-1-25
filler

Price:
Sale price$227.40

Description

  • For removing bearings, gears, discs, etc.
  • Extended standard puller hook.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.
  • MPN #: 20-1-25
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute

Metric

Imperial

Spread 30 - 90 mm 1 3/16 - 3 1/2 inch
Depth 250 mm 9 7/8 inch
Spread used internal 70 - 140 mm 2 3/4 - 5 1/2 inch
Hexagon drive (male) 17 mm
Maximum load 4,5 t 4.5 US t
Maximum torque 80 Nm 59 ft lb
Number of jaws 2 2
Weight 1.985 kg
Space below 10 mm 3/8 inch
Space next to it 31 mm 1 1/4 inch



Product Data Sheet


Advantage

  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Cross-beam, up to size -30, includes hexagonal profile for holding.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
  • Stability support from optional series 219 clamp.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Pullers with sliding, parallel jaws
