Description
- For use with series 15 and 17 separators.
- The pulling device can be combined with the series 18-0-AS screw adapter to remove parts with threaded holes.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- MPN #:18-4
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Distance of side screw |
120 - 380 mm | 4 3/4 - 15 inch |
Depth of side screw |
134 - 350 mm | 5 1/4 - 13 3/4 inch |
Thread |
G 5/8" | G 5/8" |
Hexagon drive (male) |
36 mm | |
Maximum load |
15 t | 16.5 US t |
Maximum torque |
450 Nm | 1.5 ft lb |
Weight |
14.3 kg |
Advantage
-
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-

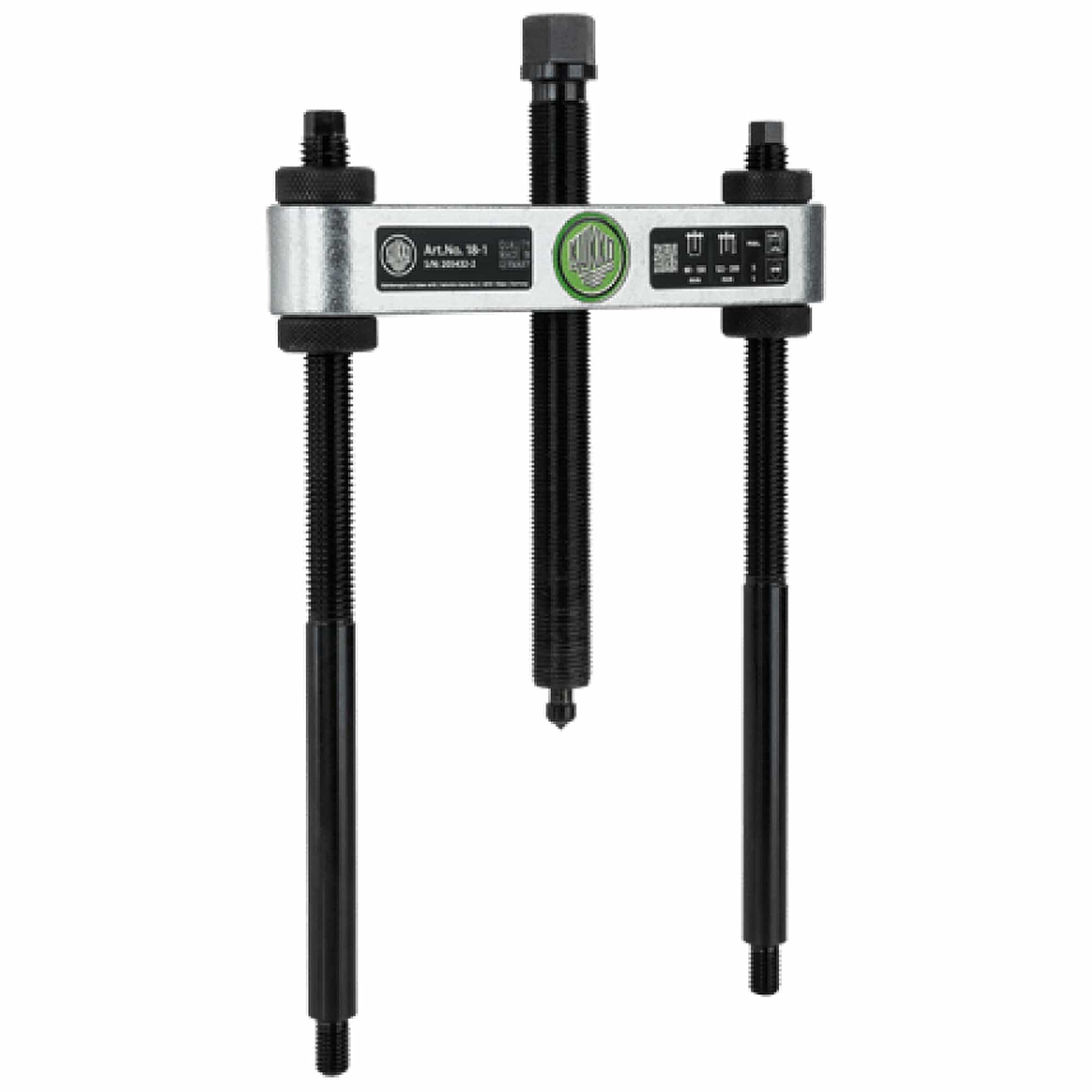

Pulling device
