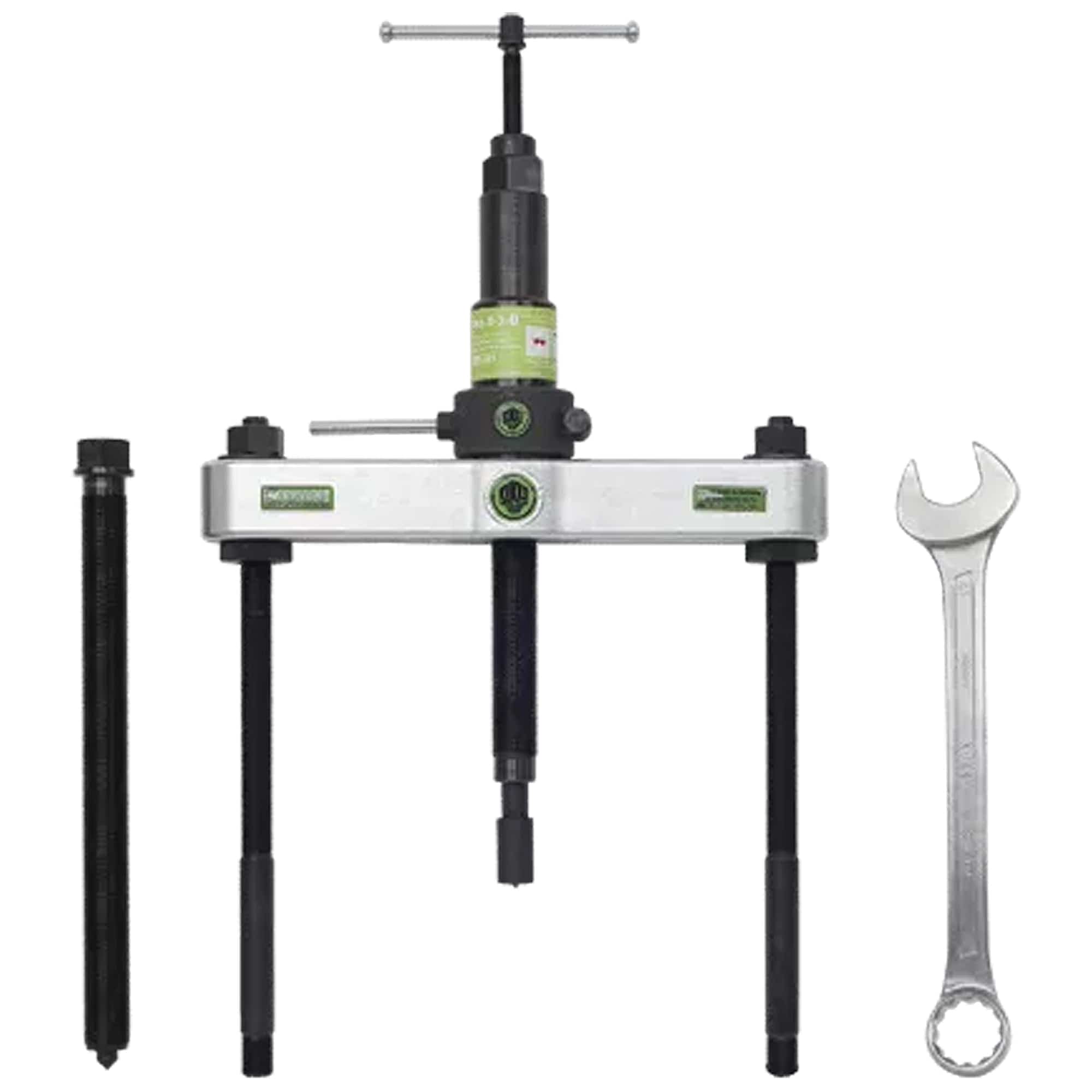

Kukko 18-4-B Hydraulic Pulling Device (Including Mechanical Pressure Screw) 4 3/4 - 15 inch (120 - 380 mm)

|
Kukko ToolsSKU: WS03-18-4-B
filler

Price:
Sale price$1,952.20

Description

  • For use with series 17, series 15, series 18-AS and series 18-A.
  • For use with series 15 and 17 separators.
  • Hydraulic spindle and mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:18-4-B
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Distance of side screw

120 - 380 mm 4 3/4 - 15 inch

Depth of side screw

134 - 350 mm 5 1/4 - 13 3/4 inch

Thread

G 5/8" G 5/8"

Hexagon drive (male)

36 mm

Maximum load

15 t 16.5 US t

Weight

21.11 kg



Product Data Sheet



Advantage

  • Easy and even pulling for particularly tight parts.

  • Ultimate stability when removing, as the separator and pulling device are screwed firmly together.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pulling device
