Description
- For use with series 15 and 17 separators.
- The pulling device can be combined with the series 18-0-AS screw adapter to remove parts with threaded holes.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- MPN #:18-2
-
Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Distance of side screw |
68 - 244 mm | 2 3/4 - 9 5/8 inch |
Depth of side screw |
145 - 280 mm | 5 3/4 - 11 1/32 inch |
Thread |
M14x1,5 | M14x1,5 |
Hexagon drive (male) |
22 mm | |
Maximum load |
7 t | 7.5 US t |
Maximum torque |
120 Nm | 88.5 ft lb |
Weight |
3.245 kg |
Advantage
-
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-

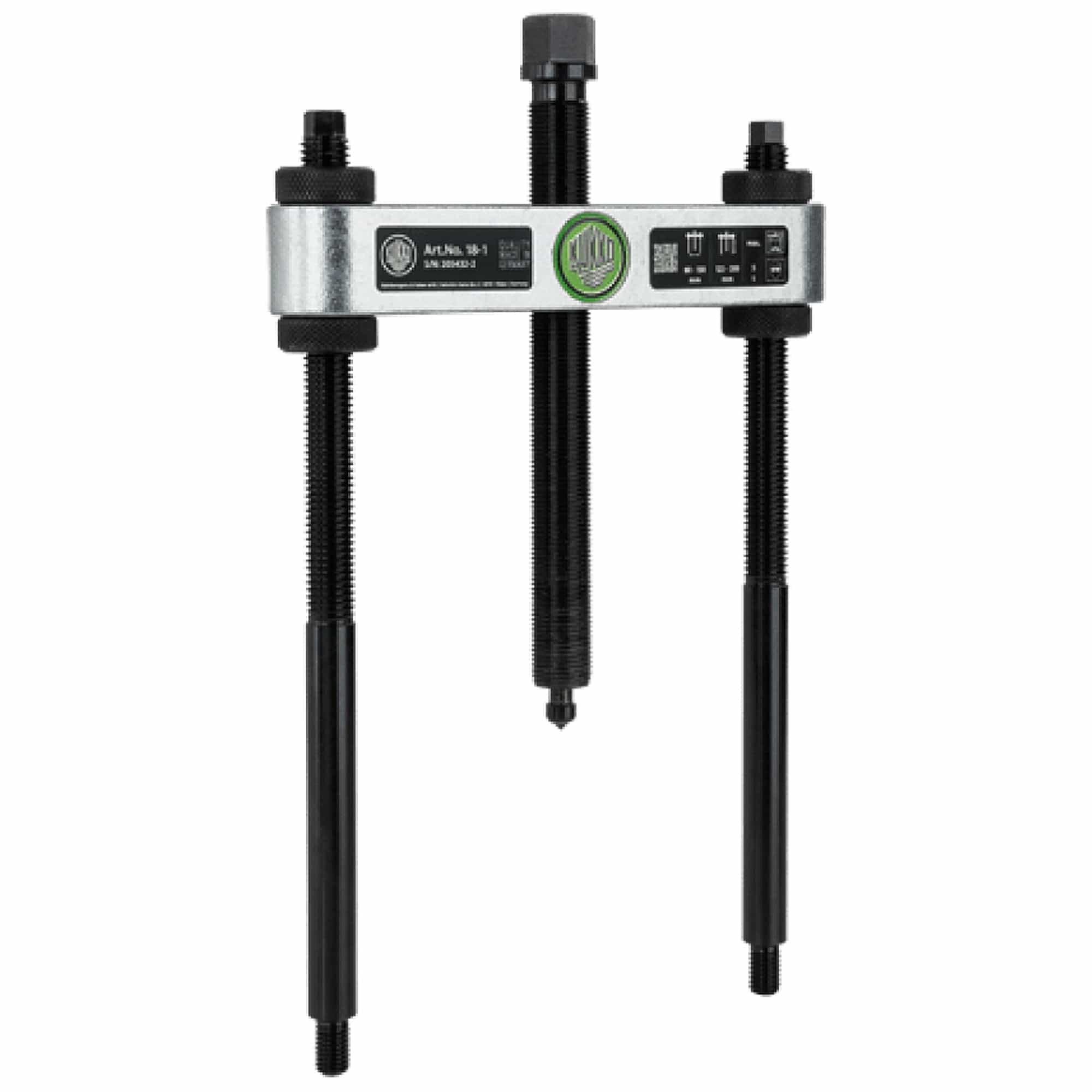

Pulling device
