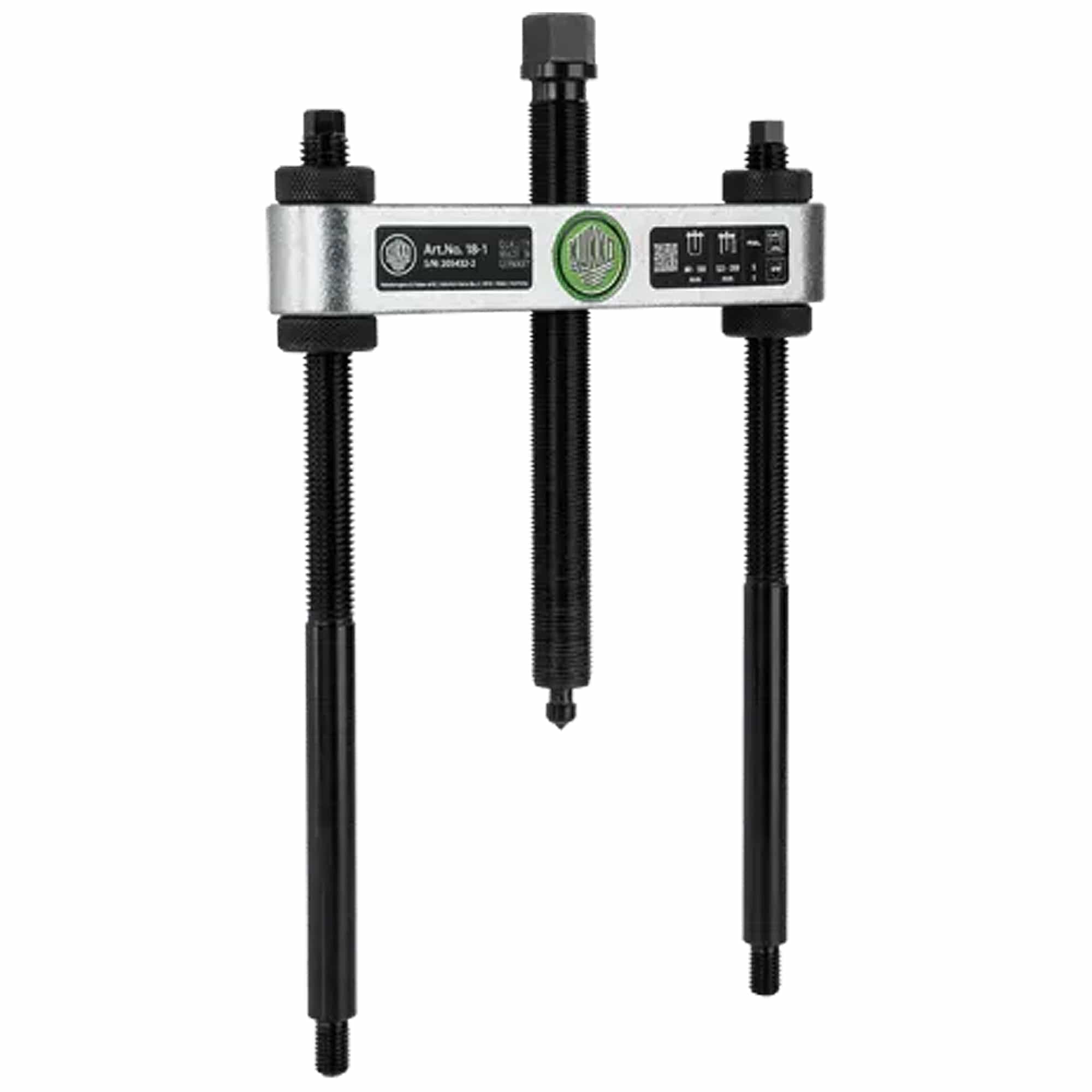

Kukko 18-1 Pulling Device 2 3/8 - 5 7/8 inch (60 - 150 mm)

|
Kukko ToolsSKU: WS03-18-1
filler

Price:
Sale price$190.20

Description

  • For use with series 17, series 15, series 18-AS and series 18-A.
  • For use with series 15 and 17 separators.

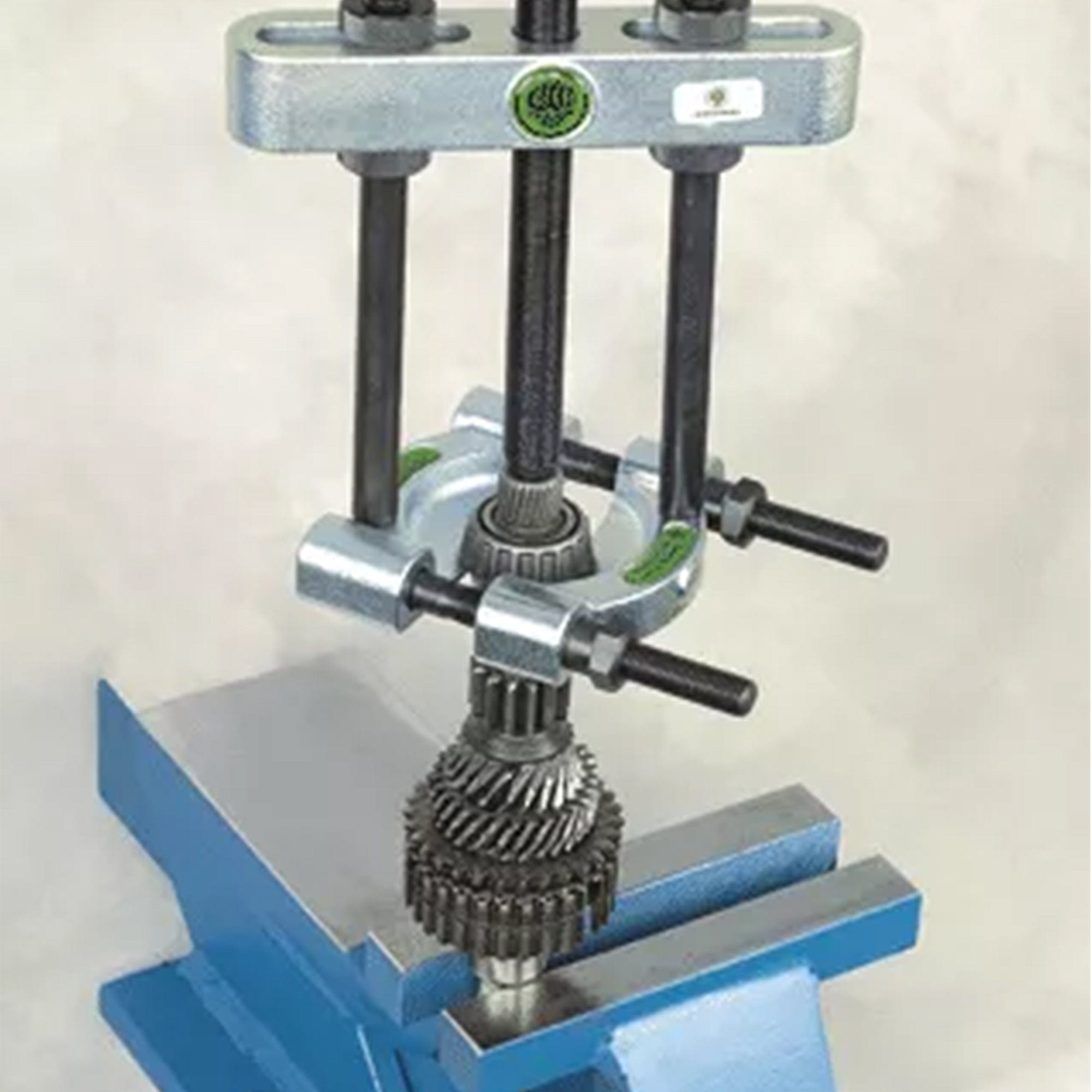

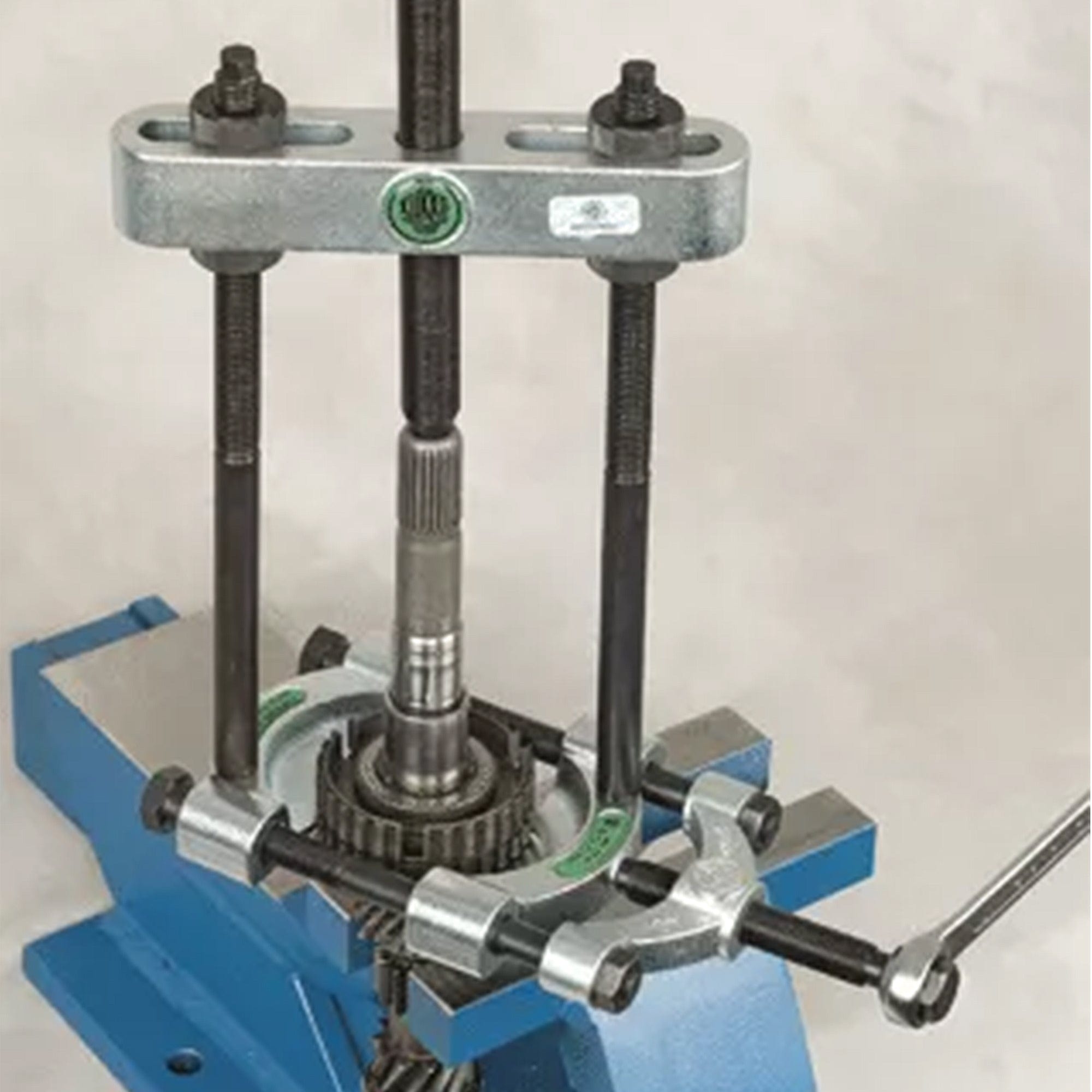

  • The pulling device can be combined with the series 18-0-AS screw adapter to remove parts with threaded holes.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:18-1
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Distance of side screw

60 - 150 mm 2 3/8 - 5 7/8 inch

Depth of side screw

122 - 200 m 4 7/8 - 7 7/8 inch

Thread

M10 M10

Hexagon drive (male)

19 mm

Maximum load

5 t 5.5 US t

Maximum torque

70 Nm 51.5 ft lb

Weight

2.05 kg



Product Data Sheet



Advantage

  • Ultimate stability when removing, as the separator and pulling device are screwed firmly together.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pulling device
