Description
Description:

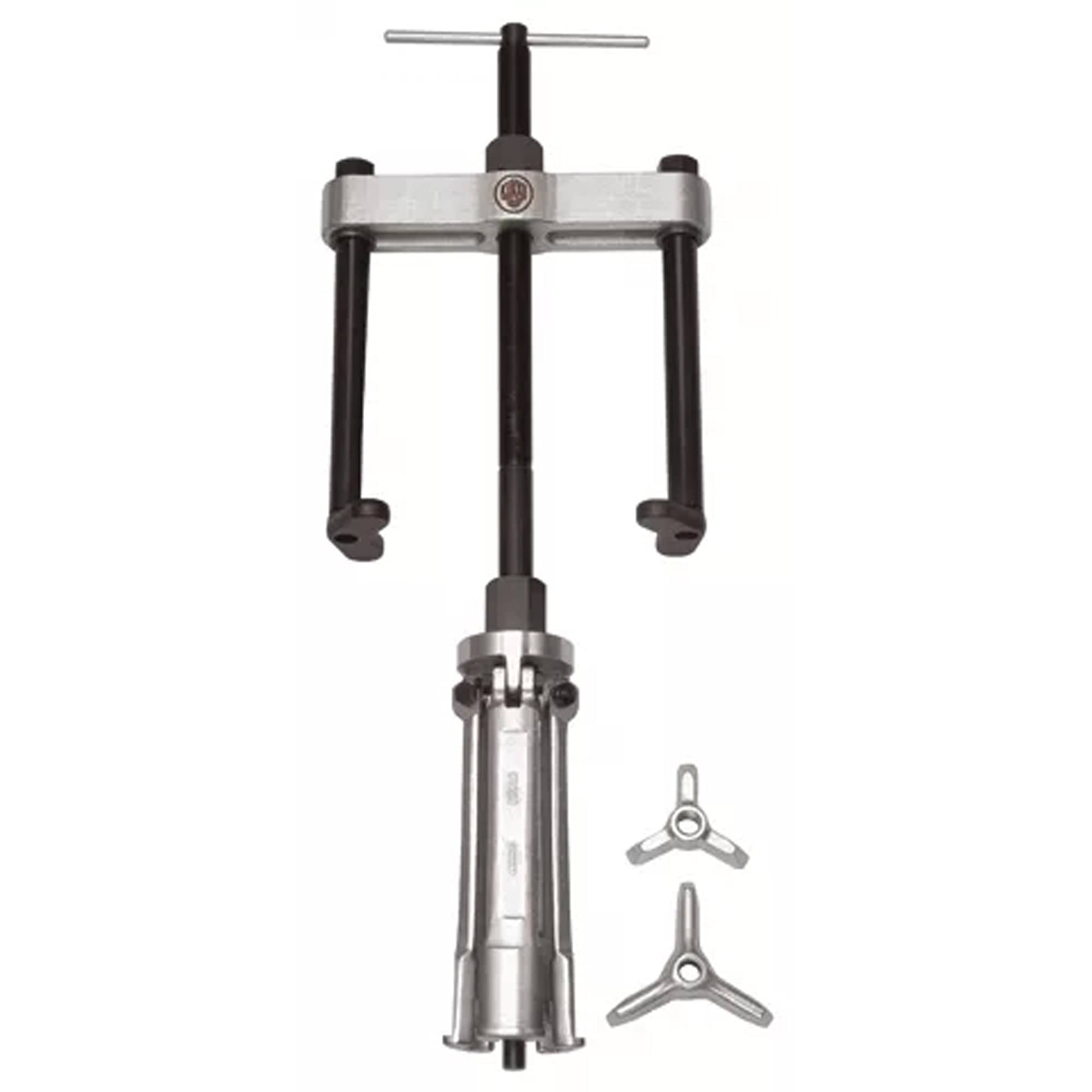

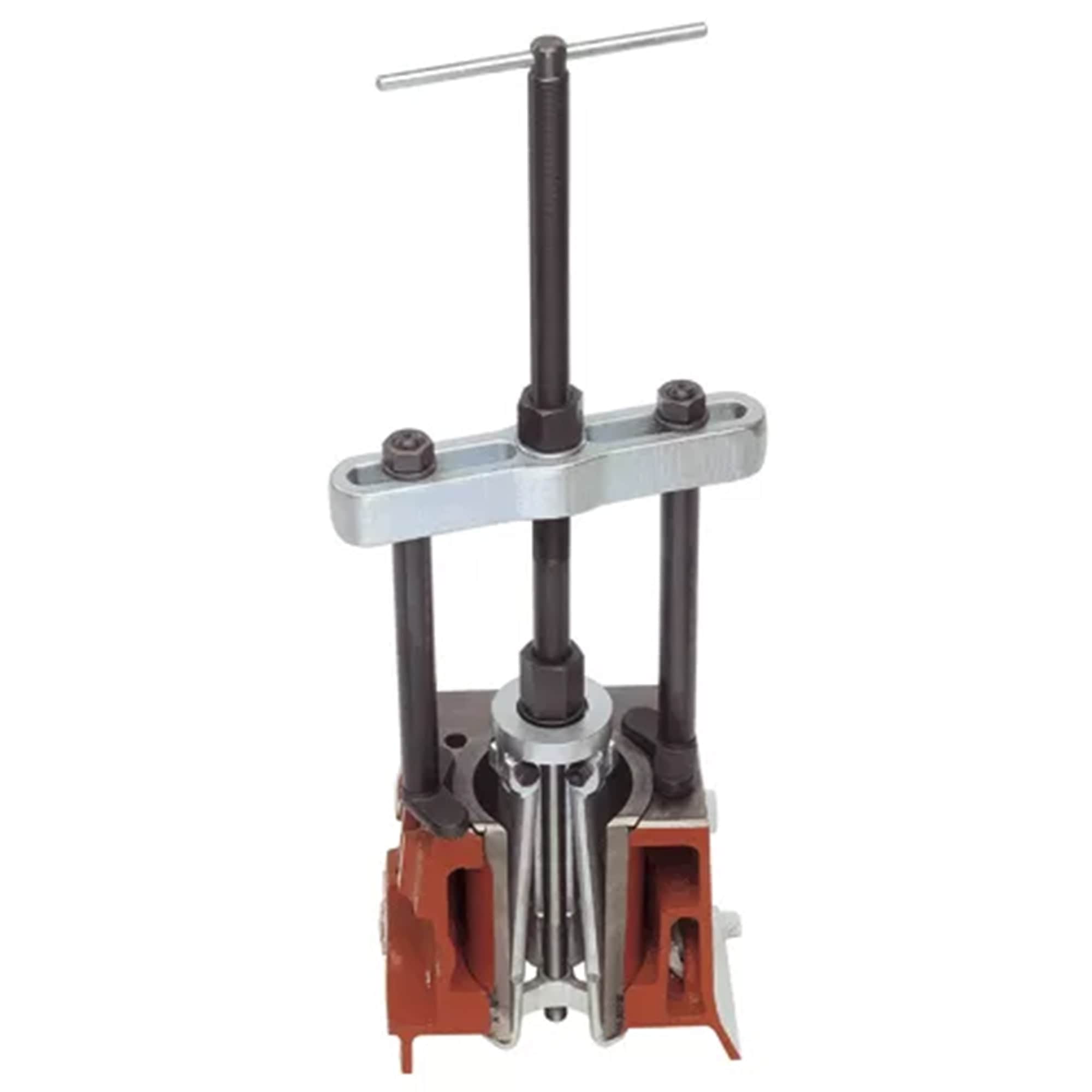

- For extracting cylinder liners in commercial vehicles and industry.
- Three expansion elements guarantee optimal adaptation of the internal extractor to the respective application.
- The counter support nuts' friction resistance is reduced to a minimum as a result of the built-in pressure bearing (size 2 to 5).
- With their support struts, the counter supports are particularly suited for large cylinder liners and ball bearings, etc., and ensure that the assembly remains stable during the extraction process.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Technical attribute Metric Imperial Ball bearing ISO 6012; 6212; 6312; 6412; 16012; 61812; 61912; 6013; 6213; 6313; 16013; 61913; 6014; 6214; 6314; 16014; 6015; 6215; 6315; 16015; 6016; 6216; 6316; 16016; 61816; 6017; 6217; 6317; 6018; 6218; 6318; 16018; 61818; 6219; 6319; 6020; 6220; 6320 6012; 6212; 6312; 6412; 16012; 61812; 61912; 6013; 6213; 6313; 16013; 61913; 6014; 6214; 6314; 16014; 6015; 6215; 6315; 16015; 6016; 6216; 6316; 16016; 61816; 6017; 6217; 6317; 6018; 6218; 6318; 16018; 61818; 6219; 6319; 6020; 6220; 6320 Inner diameter of ball bearing 60 - 155 mm 2 3/8 - 6 1/8 inch Effective depth 120 mm 4 3/4 inch Length of internal extractor 237 mm 9 3/8 inch Number of segments 3 3 Distance of side screw 85 - 250 mm 3 3/8 - 9 7/8 inch Depth of side screw 125 - 250 mm 4 7/8 - 9 7/8 inch Maximum load 7t 7.5 US t Weight 7.6 kg
Advantage:
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO Quality Standards:
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Functionality
- Internal extractors
- Internal Extracting
