Description
- For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.

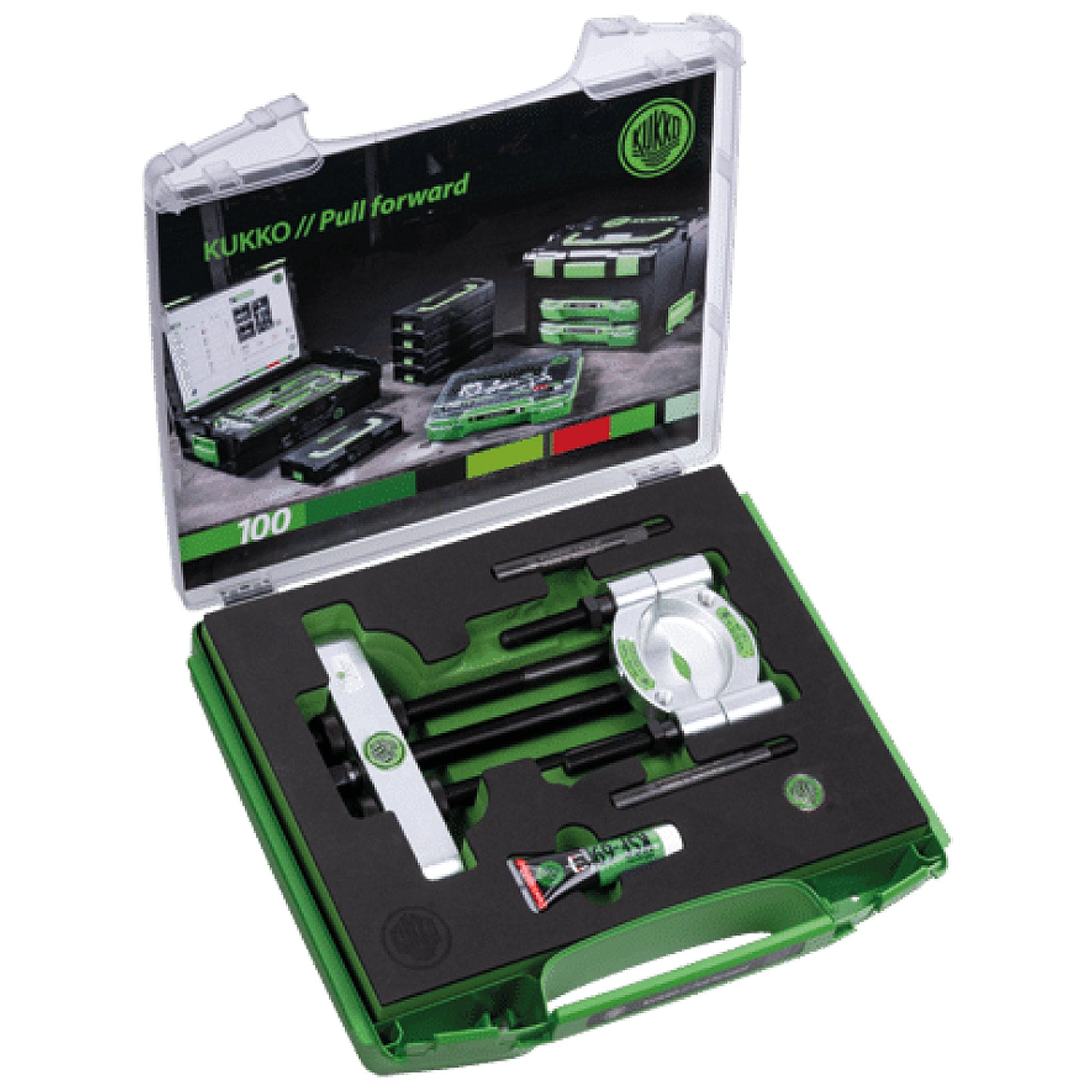

- 3-parts, the sets contain one separator, one pulling device and a pair of extensions.
- The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
- The wedge-shaped separator jaws are secured underneath the component to be removed.
- The large supporting surfaces protect the parts to be pulled.
- MPN #: 15-E
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Set Contents:
- Kukko 15-5 Universal Bearing Separators 1 3/16 - 9 7/8 inch (30 - 250 mm)
- Kukko 18-5 Pulling Device 5 7/8 - 17 3/8 inch (1150 - 440 mm)
-
Kukko 19-5-P Extensions For Pulling Devices (Pair) 7 7/8 inch (200 mm)
Technical attribute
Metric
Imperial
Diameter of the shaft
30 - 250 mm
1 3/16 - 9 7/8 inch
Distance of side screw
150 - 440 mm 5 7/8 - 17 3/8 inch Depth of side screw
225 - 600 mm 8 7/8 - 23 5/8 inch Weight
49 kg
Product Data Sheet
Advantage
- Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
- Almost all components are available as replacement parts, a time-saving order process thanks to the numbering system.
- Practical package for universal use.
- Complete easy-to-manage package.
- Kit in the tried-and-tested KUKKO-i-Boxx-System.
-
Kukko Quality Standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
