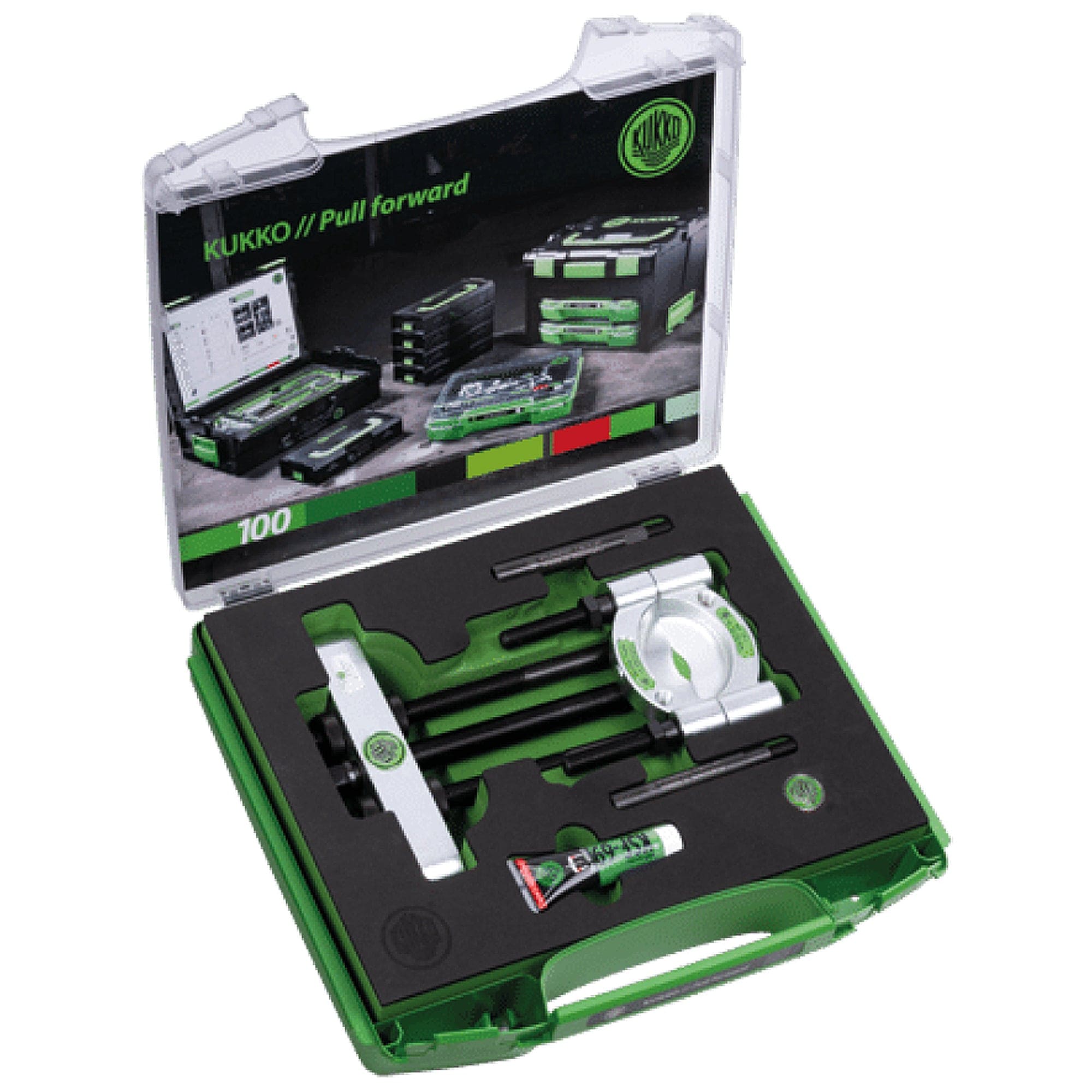

Kukko 15-D Universal Bearing Separating Set - 1 3/16 - 7 7/8 inch (30 - 200 mm)

|
Kukko ToolsSKU: WS03-15-D
filler

Price:
Sale price$2,699.60

Description

  • For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.
  • 3-parts, the sets contain one separator, one pulling device and a pair of extensions.
  • The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
  • The wedge-shaped separator jaws are secured underneath the component to be removed.
  • The large supporting surfaces protect the parts to be pulled.
  • MPN #: 15-D
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.

    Set Contents:

  • Kukko 15-4 Universal Bearing Separators 1 3/16 - 7 7/8 inch (30 - 200 mm)
  • Kukko 18-4 Pulling Device 4 3/4 - 15 inch (120 - 380 mm)
  • Kukko 19-4-P Extensions For Pulling Devices (Pair)  7 7/8 inch (200 mm)


    Technical attribute

    Metric

    Imperial

    Diameter of the shaft

    30 - 200 mm

    1 3/16 - 7 7/8 inch

    Distance of side screw

    120 - 380 mm 4 3/4 - 15 inch

    Depth of side screw

    134 - 550 mm 5 1/4 - 21 5/8 inch

    W eight

    32.18 kg


    Product Data Sheet


    Advantage

  • Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
  • Almost all components are available as replacement parts, a time-saving order process thanks to the numbering system.
  • Practical package for universal use.
  • Complete easy-to-manage package.
  • Kit in the tried-and-tested KUKKO-i-Boxx-System.

  • Kukko Quality Standards

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
  • Safety label to ensure protection of intellectual property.
  • A tube of KUKKO special grease included for pressure spindle.
