- For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.

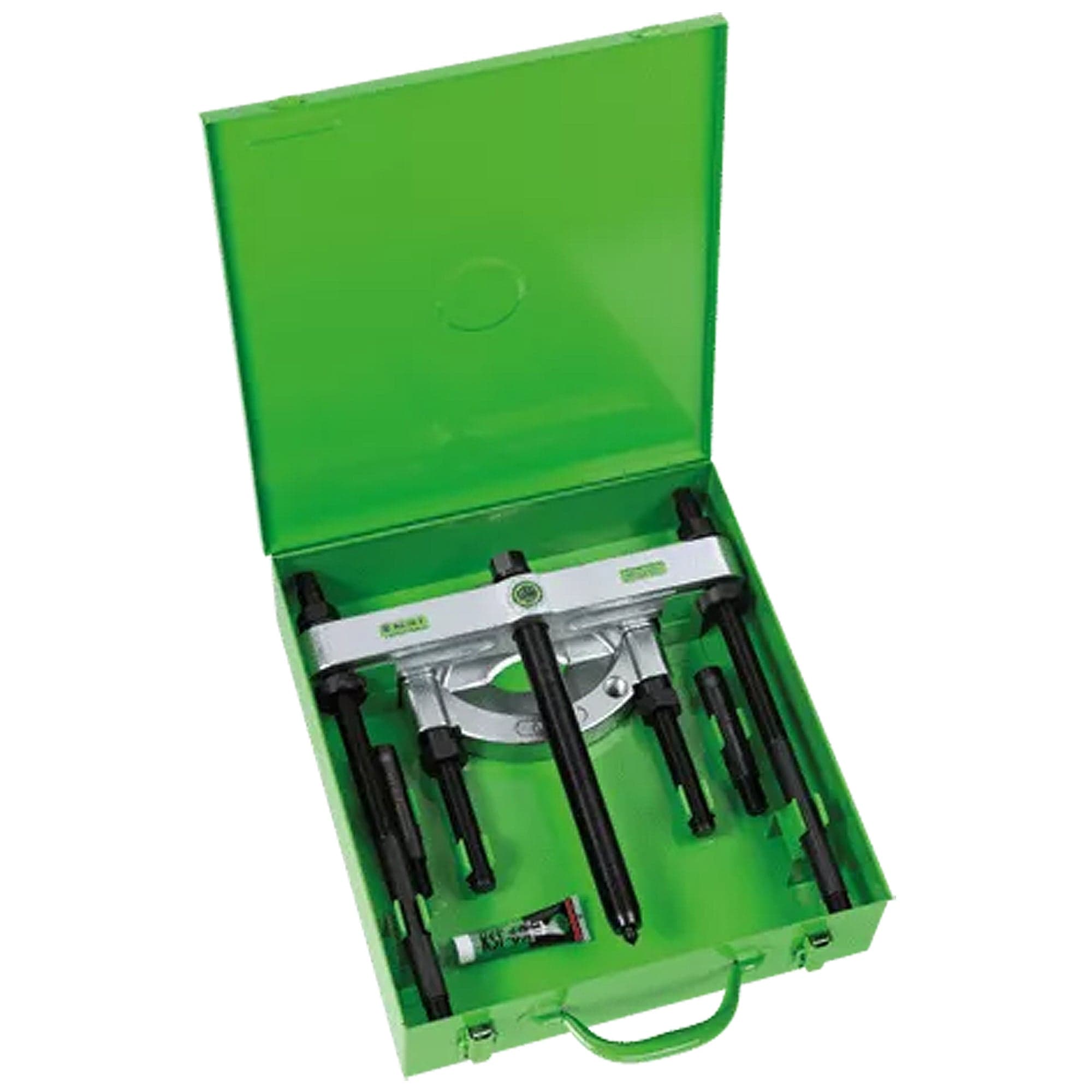

- 4-parts, the sets contain one separator, one pulling device and a pair of extensions.
- The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
- The wedge-shaped separator jaws are secured underneath the component to be removed.
- The large supporting surfaces protect the parts to be pulled.
- MPN #: 15-C
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
- Kukko 15-3 Universal Bearing Separators 1 - 6 1/8 inch (22 - 115 mm)
- Kukko 18-3 Pulling Device 3 3/16 - 11 7/8 inch (80 - 300 mm)
Kukko 19-3-P Extensions For Pulling Devices (Pair) 3 7/8 inch (100 mm)
Diameter of the shaft
25 - 155 mm
1 - 6 1/8 inch
Distance of side screw
80 - 300 mm 3 3/16 - 11 7/8 inch
Depth of side screw
144 - 400 mm 5 5/8 - 15 3/4 inch
Product Data Sheet
- Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
- Almost all components are available as replacement parts, a time-saving order process thanks to the numbering system.
- Practical package for universal use.
- Complete easy-to-manage package.
- Kit in the tried-and-tested KUKKO-i-Boxx-System.
Kukko Quality Standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
