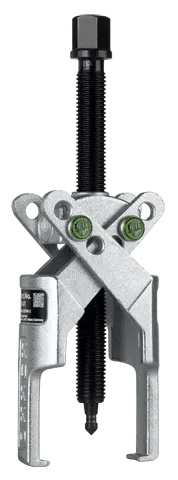

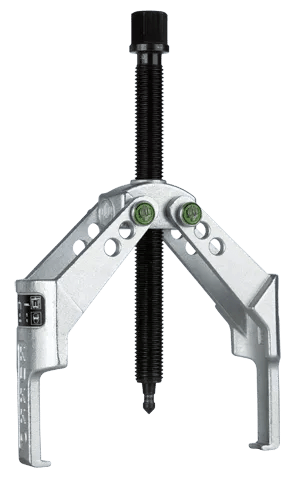

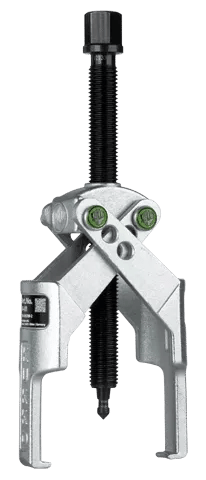

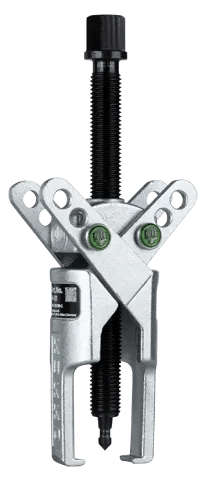

Kukko 14-03 2-Arm Puller with Claw Feet 1/4 - 5 1/2 inch (5 - 140 mm)

|
Kukko ToolsSKU: WS03-14-03
filler

Price:
Sale price$366.60

Description

  • For tight spaces when pulling sprockets, bearings and similar parts.
  • Shears - pulling hooks.
  • Parallel pulling hooks in every position, even with full load.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #:14-03
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

5 - 140 mm 1/4 - 5 1/2 inch

Depth

160 mm 6 3/8 inch

Number of possible depths

4 4

Hexagon drive (male)

17 mm

Maximum load

2 t 2 US t

Maximum torque

40 Nm 29.5 ft lb

Weight

1.12 kg

Space below

4 mm 3/16 inch

Space next to it

19 mm 3/4 inch

Number of jaws

2
2



Product Data Sheet



Advantage

  • Self-securing locking pins do not fall out during work.

  • Clamping widths and depths can be selected on an individual basis.

  • Puller is self-tensioning and easy to handle.

  • Extremely high clamping width range thanks to variable assembly of puller arms.

  • Shear-style hook design presses the claw-style feet when pulling the part to be removed.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with self-centering jaws
