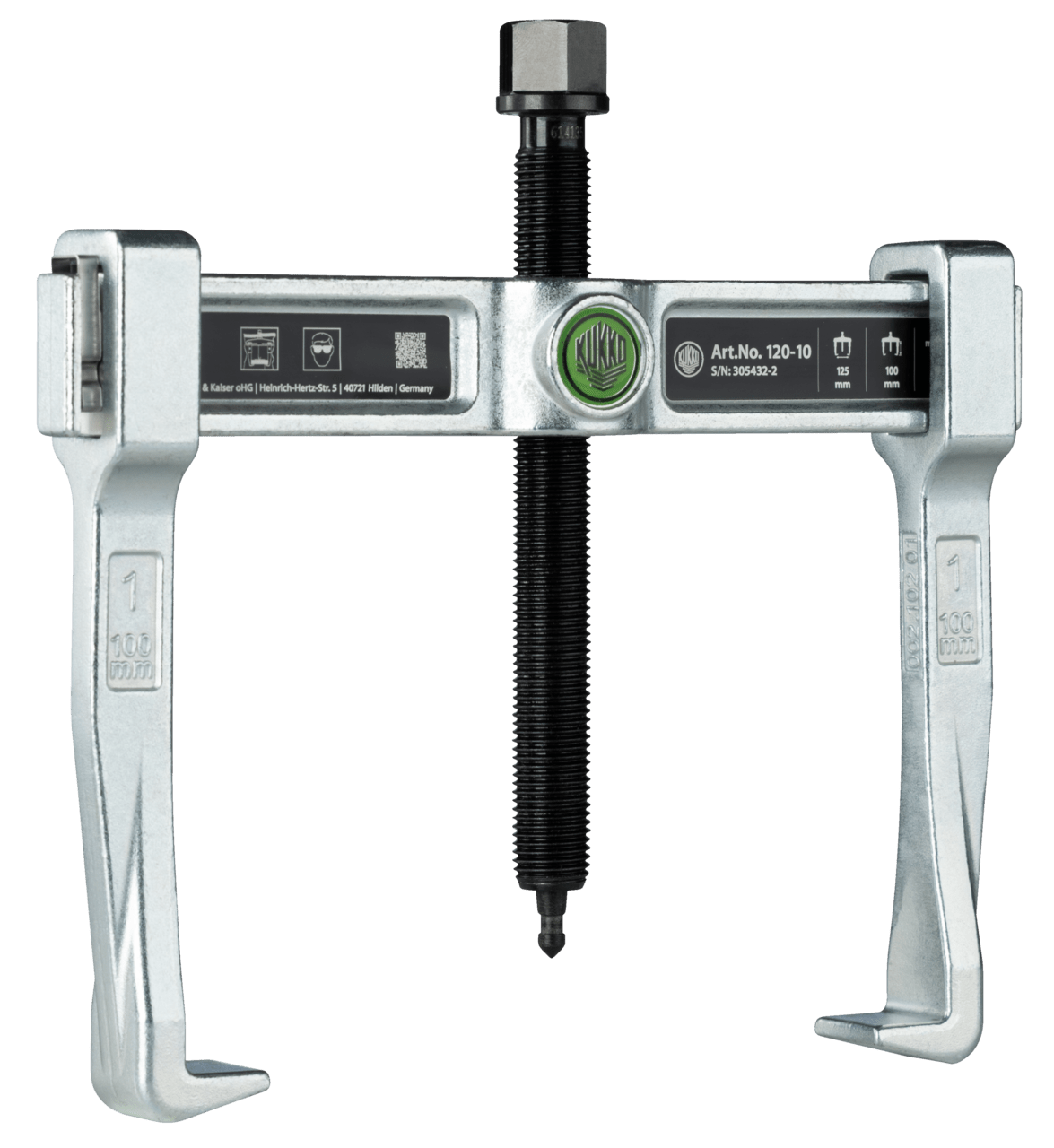

Kukko 120-10 Universal 2-Jaw Puller Economy 2 - 4 7/8 inch (50 - 125 mm)

|
Kukko ToolsSKU: WS03-120-10
filler

Price:
Sale price$130.70

Description

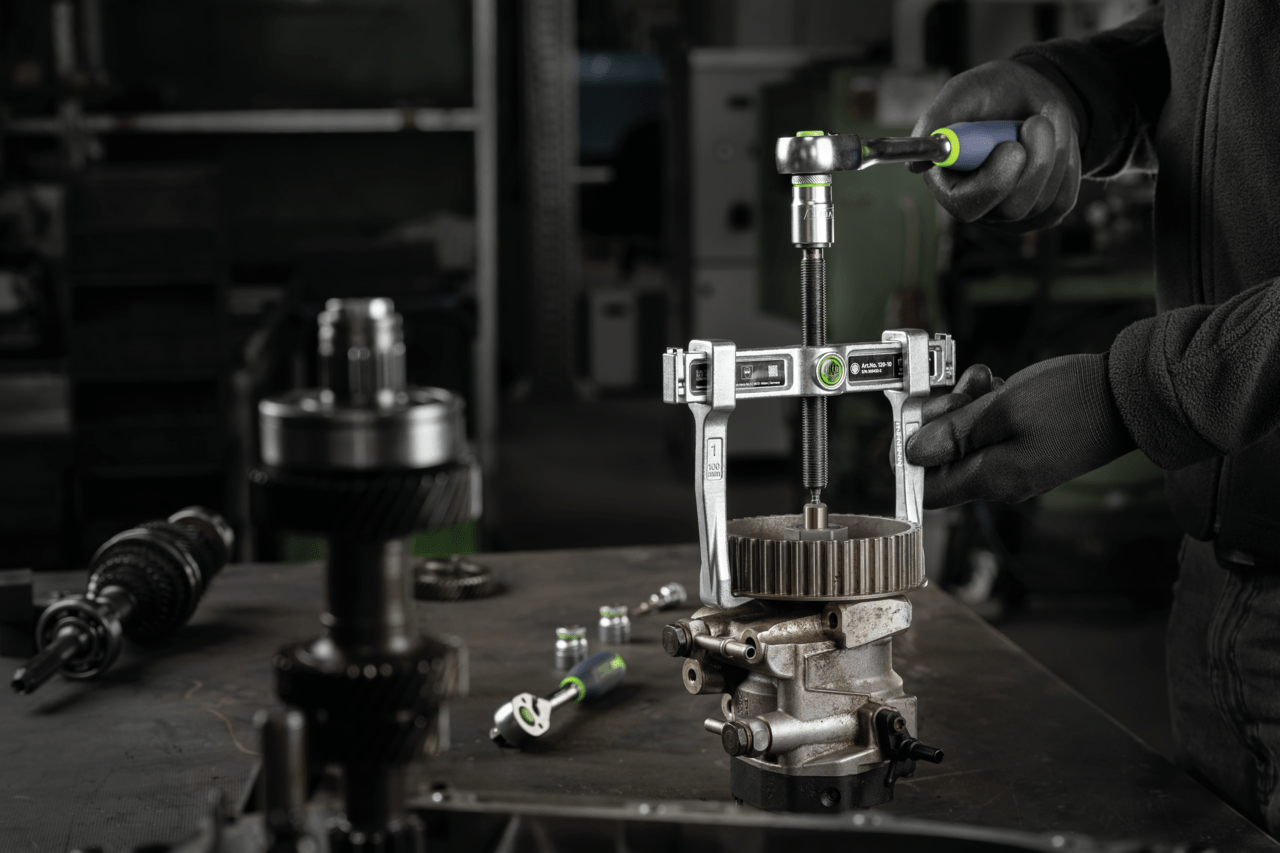

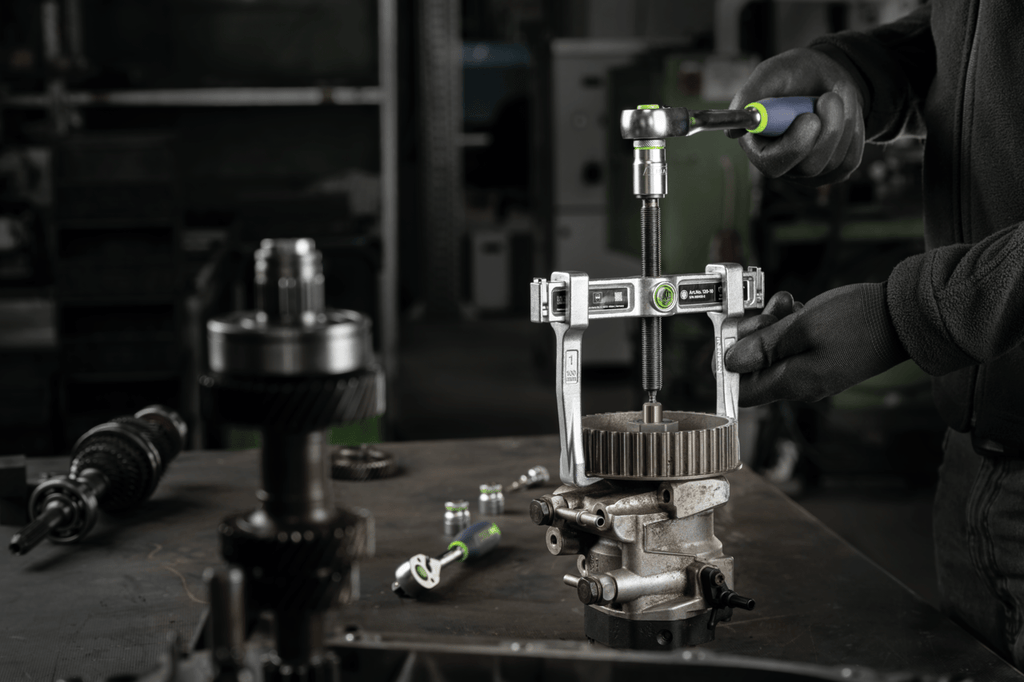

  • For removing bearings, gears, discs, etc.
  • Standard pulling hook.
  • The end stop protects the hook from slipping off the cross-beam.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Two-arm design for space-saving operation.
  • Mechanical pressure screw.
  • Exchangeable spindle top.
  • Milled thread treated with special coating.
  • MPN #: 120-10
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute

Metric

Imperial

Spread 50 - 125 mm 2 - 4 7/8 inch
Depth 100 mm 3 7/8 inch
Hexagon drive (male) 17 mm
Maximum load 3 t 3.30 US t
Number of jaws 2 2
Weight 1.16 kg
Space below 9 mm 3/8 inch
Space next to it 32 mm 1 1/4 inch



Product Data Sheet


Advantage

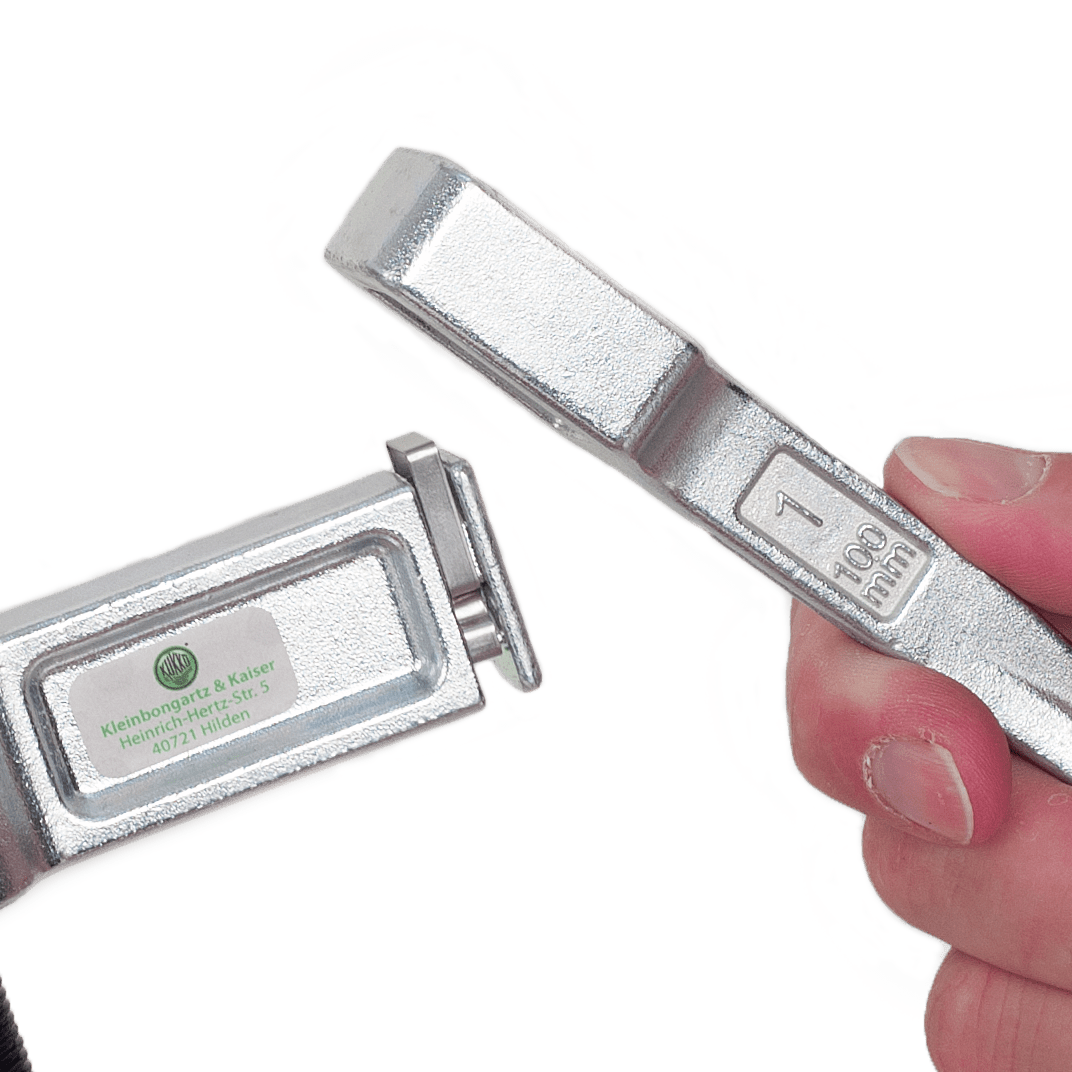

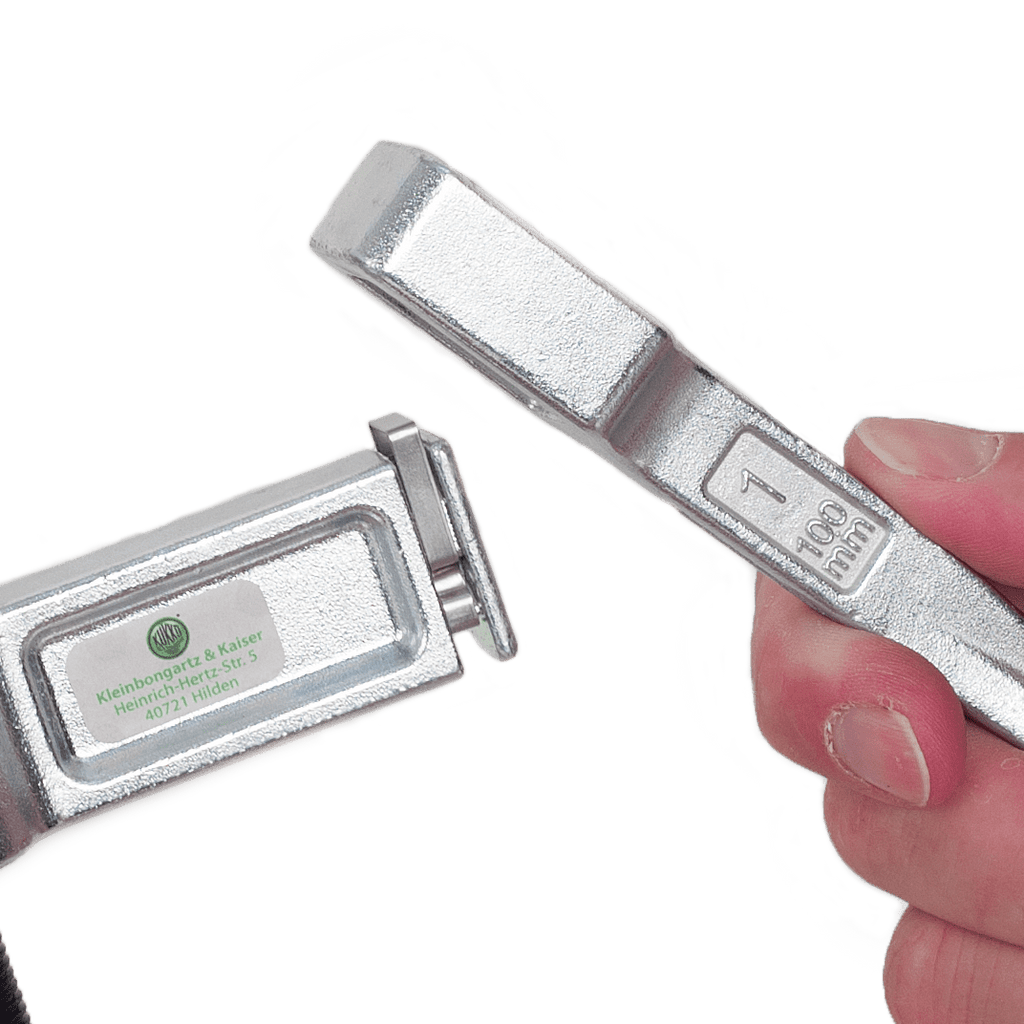

  • Quick change or turning of the pulling jaws by depressing the end stop.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Puller Economy
