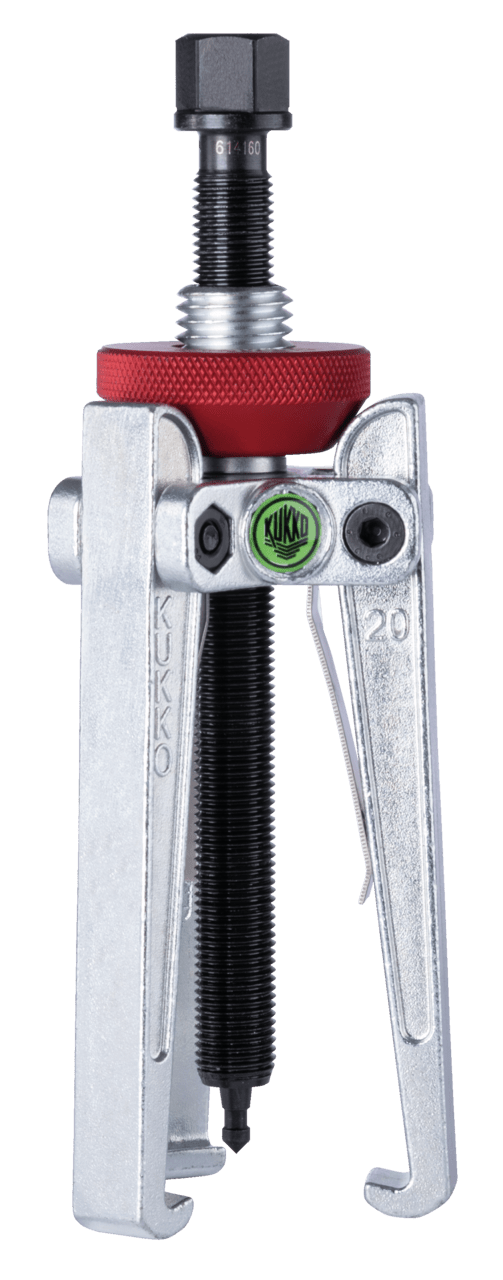

Kukko 113-3 Universal 3-Jaw Puller for Roller Bearings 1 - 7 1/4 inch (25 - 185 mm)

|
Kukko ToolsSKU: WS03-113-3
filler

Price:
Sale price$603.20

Description

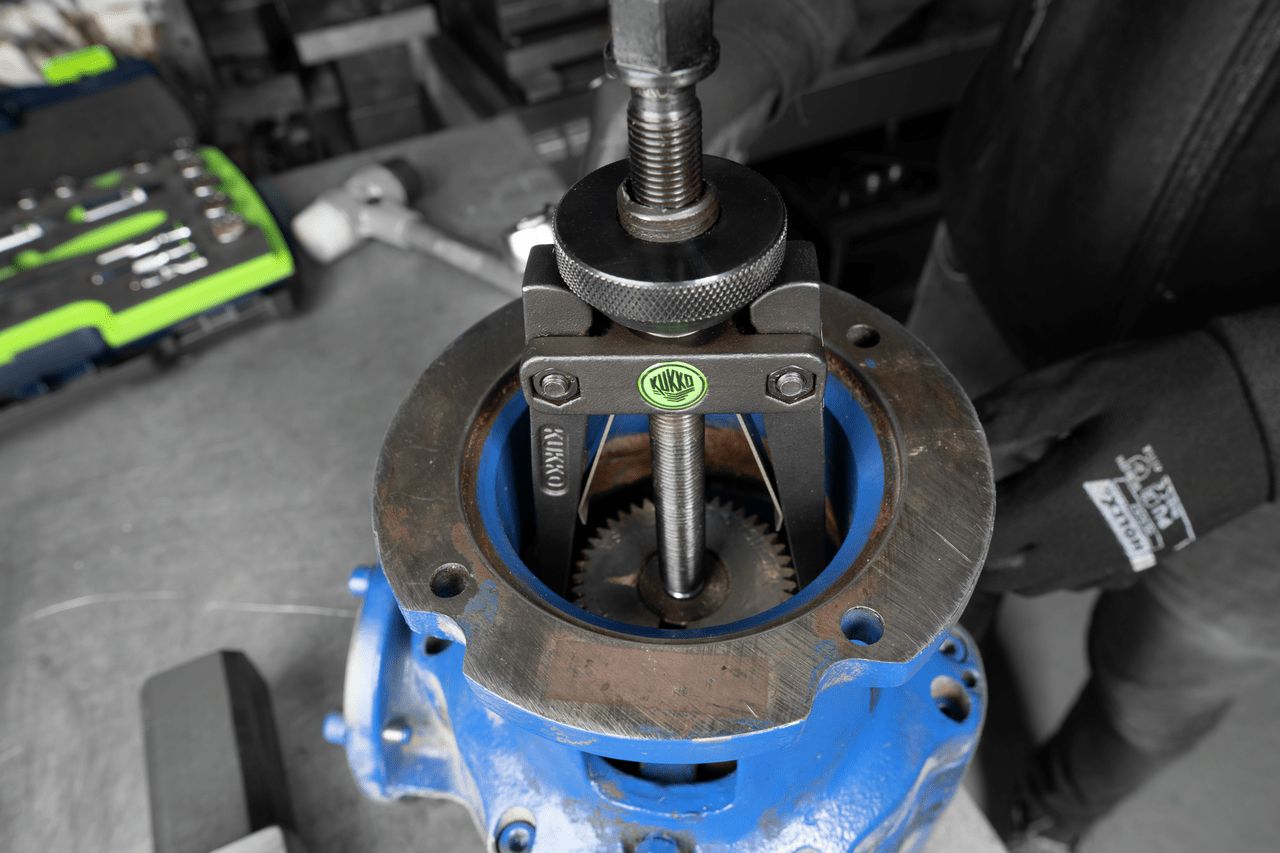

  • For removing bearings, gears, discs, etc.
  • Standard pulling hook.
  • Automatic self-centering pulling hooks.
  • Two-arm design for space-saving operation.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #: 113-3
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute

Metric

Imperial

Spread 25 - 185 mm 1 - 7 1/4 inch
Depth 165 mm 6 1/2 inch
Hexagon drive (male) 17 mm
Maximum load 4 t 4 US t
Maximum torque 60 Nm 44 ft lb
Weight 2.94 kg
Space below 6.5 mm 1/4 inch
Space next to it 20 mm 3/4 inch
Number of jaws 3 3



Product Data Sheet

Advantage

  • Quick adjustment of the spread by a knurled cone.
  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Pullers with swiveling jaws
