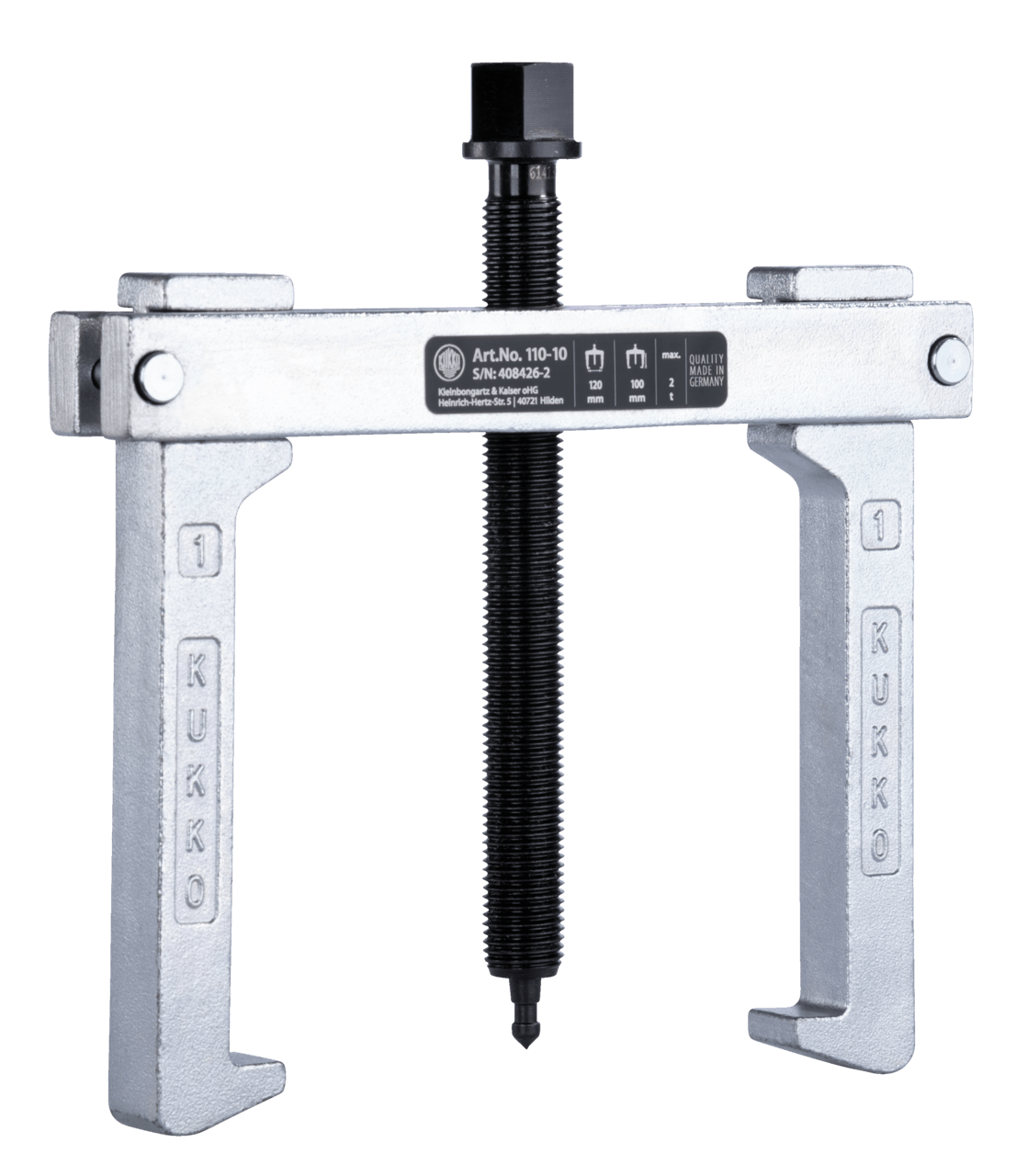

Description
- For removing bearings, gears, discs, etc.
- Standard pulling hook.
- The pulling jaws are consistently straight and equally slim.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Two-arm design for space-saving operation.
- Parallel pulling hooks in every position, even with full load.
- Mechanical pressure screw.
- Exchangeable spindle top (as from size 110-1).
- Milled thread treated with special coating
- MPN #: 110-3
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread | 90 - 250 mm | 3 1/2 - 9 7/8 inch |
Depth | 200 mm | 7 7/8 inch |
Hexagon drive (male) | 22 mm | |
Maximum load | 4 t | 6.5 US t |
Number of jaws | 2 | 2 |
Weight | 4.88 kg | |
Space below | 18 mm | 3/4 inch |
Space next to it | 35 mm | 1 3/8 inch |
Advantage
- Turning the pulling hooks enables them to be used both internally and externally.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Puller Economy
